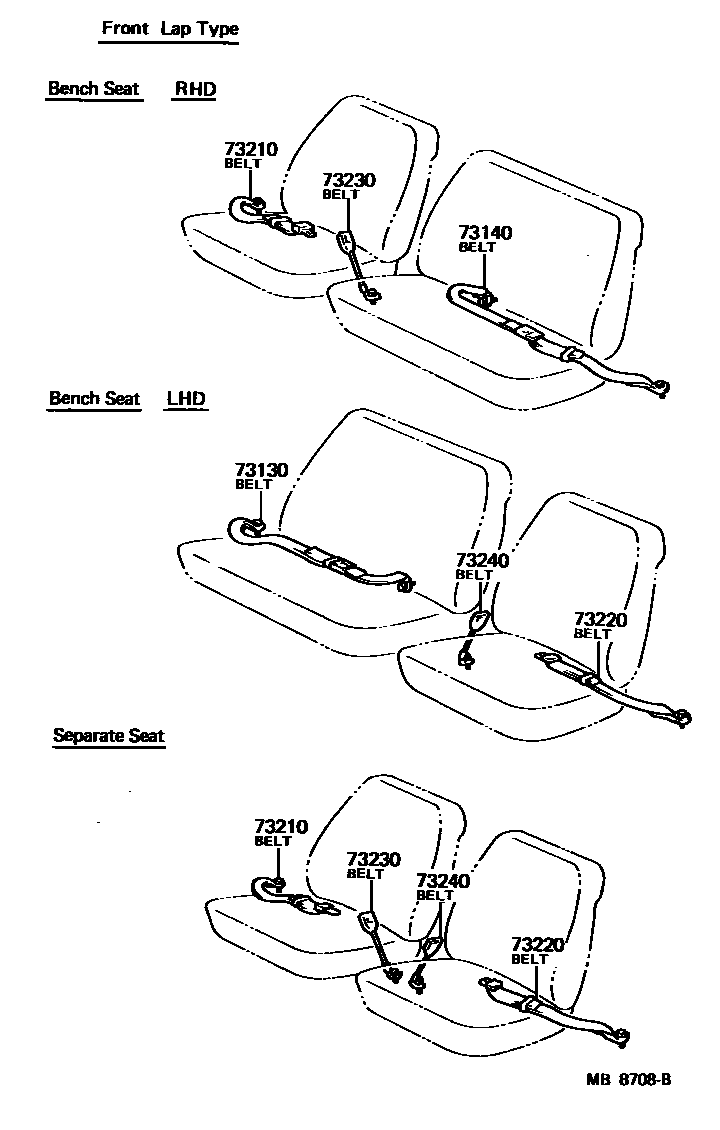

SEAT BELT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

73130BELT ASSY, FRONT SEAT LAP TYPE, RH

main71840-90331iBJ4#,FJ4#,HJ47..LHD..GEN198008-198210

main73130-90803iBJ40,42,FJ40..VKC..GEN198110-198210

SEPARATE SEAT,W/TRIM,W/O *RB

main73130-90803iBJ40,42,FJ40..RHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73130-90807iBJ40,42,43,45,FJ4#,HJ47..(TP,V)..GEN198210-198510

SEPARATE SEAT

main73130-90807iBJ40,42,43,45,FJ4#,HJ47..RHD..GEN198210-198506

BENCH SEAT

main73130-90809-03iBJ45,FJ43,45..LHD..GEN198305-198410

OMAN SPEC,D-GRAY,GRAY

main73130-90809-03iFJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198210-198410

*SAA,D-GRAY,GRAY

main73130-90809-06iHJ47..LHD..VKC198305-198410

OMAN SPEC,D-BROWN,BROWN

main73130-90809-06iFJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198210-198410

*SAA,D-BROWN,BROWN

main73140-90808iBJ40,42,43,45,FJ4#,HJ47..LHD..GEN198210-198604

BENCH SEAT

main73150-90803iBJ40,42,FJ40..LHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main71840-90331iBJ4#,FJ4#,HJ47..RHD..GEN198008-198210

main73140-90804iBJ40,42,FJ40..LHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73140-90804iBJ40,42,FJ40..LHD..VKC..GEN198110-198210

SEPARATE SEAT,W/TRIM,W/O *RB

main73140-90808iBJ40,42,43,45,FJ4#,HJ47..RHD..GEN198210-198506

BENCH SEAT

main73140-90811iBJ40,42,43,45,FJ4#,HJ47..LHD..GEN198210-198604

BENCH SEAT

main73140-90811iBJ40,42,43,45,FJ4#,HJ47..(TP,V)..GEN198210-198510

SEPARATE SEAT

main73140-90813-03iHJ47..LHD..VKC198305-198410

OMAN SPEC,D-GRAY,GRAY

main73140-90813-03iFJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198210-198410

*SAA,D-GRAY,GRAY

main73140-90813-06iFJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198210-198410

*SAA,D-BROWN,BROWN

main73140-90813-06iHJ47..LHD..VKC198305-198410

OMAN SPEC,D-BROWN,BROWN

main73150-90803iBJ40,42,FJ40..RHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

73210BELT ASSY, FRONT SEAT OUTER, RH

main71801-90328iBJ40,42,45,FJ40,45,HJ47..V..GEN198008-198210

W/*ELR,SEPARATE SEAT

main71801-90335iBJ4#,FJ4#,HJ47..RHD..GEN198008-198210

LAP TYPE,BENCH SEAT

main71801-90335iBJ4#,FJ4#,HJ47..RHD..GEN198008-198210

LAP TYPE,SEPARATE SEAT

main71801-90336iBJ40,42,43,46,FJ40,43..TPC..RB..GEN198008-198210

3 POINT TYPE,BENCH SEAT

main71802-90327iBJ40,42,FJ40..VKC..GEN198110-198210

W/TRIM,W/O *RB,GRAY

main73210-90801iBJ42,FJ40,45,HJ47..(TP,V)..ARL198008-198210

W/*ELR,BENCH SEAT

main73210-90802iBJ45,FJ45,HJ47..RHD..PIC..GEN198008-198210

W/*ELR,BENCH SEAT

main73210-90804iBJ42,FJ40..VKC..EUR198110-198210

W/TRIM

main73210-90805iBJ42,45,FJ40,45..V..EUR198110-198210

main73210-90806iBJ45,FJ45..PIC..EUR198110-198210

main73210-90807iBJ42,FJ40..VKC..ARL198110-198210

W/TRIM

main73210-90809iBJ40,42,FJ40..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73210-90811iBJ40,42,FJ40..VKC..GEN198110-198210

SEPARATE SEAT,W/TRIM,W/O *RB

main73210-90813iBJ42,FJ40..WORB..ARL198210-198410

W/TRIM

main73210-90815iBJ42,FJ40,45,HJ47..(TPS,VKC)..ARL198210-198410

W/*ELR,BENCH SEAT

main73210-90816iBJ42,FJ40..VKC..EUR198210-198410

W/TRIM

main73210-90818iBJ42,45,FJ40,45..V..EUR198210-198410

main73210-90820-03iFJ40..LHD..VKC..4F198210-198410

*SAA,D-GRAY,GRAY

sub73210-90820

main73210-90820-03iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,D-GRAY,GRAY

sub73210-90820

main73210-90820-03iBJ40,42,45,FJ40,45,HJ47..V..GEN198210-198510

BENCH SEAT,GRAY

sub73210-90820

main73210-90820-06iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,D-BROWN,BROWN

sub73210-90820

main73210-90820-06iFJ40..LHD..VKC..4F198210-198410

*SAA,D-BROWN,BROWN

sub73210-90820

main73210-90821iBJ40,42,45,FJ40,45,HJ47..V..GEN198210-198510

W/*ELR,SEPARATE SEAT

main73210-90823iBJ40,42,FJ40..VKC..GEN198210-198410

W/TRIM,*ELR

main73210-90826iBJ45,FJ45..PIC..EUR198210-198410

main73210-90827iBJ45,FJ45,HJ47..RHD..PIC..GEN198210-198506

W/*ELR,BENCH SEAT

main73210-90827iFJ45,HJ47..PIC..ARL198210-198410

73220BELT ASSY, FRONT SEAT OUTER, LH

main71801-90328iBJ40,42,45,FJ40,HJ47..V..GEN198008-198210

W/*ELR,SEPARATE SEAT

main71801-90328iBJ40,42,45,FJ40,HJ47..V..GEN198008-198210

3POINT TYPE,SEPARATE SEAT

main71801-90335iBJ4#,FJ4#,HJ47..LHD..GEN198008-198210

LAP TYPE,BENCH SEAT

main71801-90335iBJ4#,FJ4#,HJ47..LHD..GEN198008-198210

LAP TYPE,SEPARATE SEAT

main71801-90336iBJ40,42,45,FJ40,45,HJ47..V..GEN198008-198210

3POINT TYPE,BENCH SEAT

main71802-90334iBJ40,42,FJ40..VKC..GEN198110-198210

W/TRIM,W/O ROLL BAR,GRAY

main73210-90804iBJ42,FJ40..VKC..EUR198110-198210

W/TRIM

main73210-90805iBJ42,46,FJ40..RB..EUR198110-198210

main73210-90809iBJ40,42,FJ40..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73210-90811iBJ40,42,FJ40..VKC..GEN198110-198210

SEPARATE SEAT,W/TRIM,W/O *RB

main73210-90815iBJ42,FJ40..RHD..VKC..GEN198210-198410

W/*ELR,BENCH SEAT

main73210-90816iBJ42,FJ40..VKC..EUR198210-198410

W/TRIM

main73210-90818iBJ42,45,FJ40,45..(PIC,V)..EUR198210-198410

main73210-90820-03iFJ40..LHD..VKC..4F198210-198410

*SAA,D-GRAY,GRAY

sub73210-90820

main73210-90820-03iBJ40,42,45,FJ40,45,HJ47..V..GEN198210-198510

BENCH SEAT,GRAY

sub73210-90820

main73210-90820-03iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,D-GRAY,GRAY

sub73210-90820

main73210-90820-06iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,D-BROWN,BROWN

sub73210-90820

main73210-90820-06iFJ40..LHD..VKC..4F198210-198410

*SAA,D-BROWN,BROWN

sub73210-90820

main73210-90821iBJ40,42,45,FJ40,45,HJ47..V..GEN198210-198510

W/*ELR,SEPARATE SEAT

main73210-90823iBJ40,42,FJ40..VKC..GEN198210-198410

W/TRIM,*ELR

main73220-90800iBJ42,FJ40,45,HJ47..(TP,V)..ARL198008-198210

W/*ELR,BENCH SEAT

main73220-90801iFJ45,HJ47..PIC..ARL198008-198210

W/*ELR,BENCH SEAT

main73220-90803iBJ42,FJ40..VKC..ARL198110-198210

W/TRIM

main73220-90804iBJ45,FJ45..PIC..EUR198110-198210

main73220-90805iBJ42,FJ40..WORB..ARL198210-198410

W/TRIM

main73220-90806iBJ42,FJ40,45,HJ47..(TPS,VKC)..ARL198210-198410

main73220-90807iFJ45,HJ47..PIC..ARL198210-198410

main73220-90807iBJ45,FJ45,HJ47..RHD..PIC..GEN198210-198506

W/*ELR,BENCH SEAT

73230BELT ASSY, FRONT SEAT INNER, RH

main71802-90327iBJ4#,FJ4#,HJ47..RHD..GEN198008-198210

SEPARATE SEAT

main71802-90327iBJ4#,FJ4#,HJ47..(TP,V)..GEN198008-198210

BENCH SEAT

main71802-90333iBJ40,42,45,FJ40,45,HJ47..LHD..V..GEN198008-198210

3POINT,BENCH SEAT

main73210-90810iBJ40,42,FJ40..VKC..GEN198110-198210

W/TRIM,W/O *RB,GRAY

main73230-90800iBJ42,FJ40,45,HJ47..ARL198008-198210

W/*ELR,BENCH SEAT

main73230-90802iBJ42,FJ40..VKC..EUR198110-198210

W/TRIM

main73230-90803iBJ45,FJ45..PIC..EUR198110-198210

main73230-90804iBJ42,FJ40..VKC..ARL198110-198210

W/TRIM,W/O *RB

main73230-90805-03iBJ40,42,45,FJ40,45,HJ47..V..GEN198210-198510

SEPARATE SEAT,D-GRAY,GRAY

sub73230-90805

main73230-90805-03iBJ40,42,45,FJ40,45,HJ47..RHD..V..GEN198210-198410

BENCH SEAT,GRAY

sub73230-90805

main73230-90805-06iBJ40,42,FJ40..VKC..GEN198110-198210

SEPARATE SEAT,W/TRIM,W/O *RB,BROWN

sub73230-90805

main73230-90805-06iBJ40,42,FJ40..RHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB,BROWN

sub73230-90805

main73230-90805-06iBJ40,42,FJ40..VKC..GEN198210-198410

SEPARATE SEAT,D-BROWN,BROWN

sub73230-90805

main73230-90806iBJ40,42,FJ40..LHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73230-90807iBJ42,45,FJ40,45..V..EUR198110-198210

main73230-90810-03iBJ42,45,FJ40,45..V..EUR198210-198410

D-GRAY,GRAY

sub73230-90810

main73230-90810-03iBJ46..RB198210-198410

GRAY

sub73230-90810

main73230-90810-06iBJ42,FJ40..VKC..EUR198210-198410

D-BROWN,BROWN

sub73230-90810

main73230-90812-03iBJ42,FJ40,45,HJ47..ARL198210-198506

W/*ELR,BENCH SEAT,GRAY

sub73230-90812

main73230-90812-03iBJ42,FJ40..RHD..VKC..GEN198210-198410

D-GRAY,GRAY

sub73230-90812

main73230-90812-06iBJ42,FJ40..WORB..ARL198210-198410

D-BROWN,BROWN

sub73230-90812

main73230-90816iBJ45,FJ45..PIC..EUR198210-198410

main73230-90817iFJ40..LHD..VKC..4F198210-198410

*SAA,BENCH SEAT

main73230-90817iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,BENCH SEAT

main73240-90815iBJ40,42,45,FJ40,45,HJ47..LHD..V..GEN198210-198510

BENCH SEAT

73240BELT ASSY, FRONT SEAT INNER, LH

main71802-90333iBJ40,42,45,FJ40,45,HJ47..RHD..V..GEN198008-198210

3POINT TYPE,BENCH SEAT

main71802-90334iBJ4#,FJ4#,HJ47..LHD..GEN198008-198210

BENCH SEAT

main71802-90334iBJ4#,FJ4#,HJ47..(TP,V)..GEN198008-198210

SEPARATE SEAT

main73210-90810iBJ40,42,FJ40..VKC..GEN198110-198210

W/TRIM,W/O *RB,GRAY

main73230-90806iBJ40,42,FJ40..RHD..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73240-90800iBJ42,FJ40,45,HJ47..ARL198008-198110

main73240-90800iBJ45,FJ45,HJ47..RHD..(PIC,V)..GEN198008-198210

W/*ELR,BENCH SEAT

main73240-90802iBJ42,FJ40..VKC..EUR198110-198210

W/TRIM

main73240-90803iBJ42,45,FJ40,45..(PIC,V)..EUR198110-198210

main73240-90804iBJ42,FJ40,45,HJ47..ARL198110-198210

main73240-90805iBJ42,FJ40..VKC..ARL198110-198210

W/TRIM,W/O *RB

main73240-90806iBJ40,42,FJ40..VKC..GEN198110-198210

BENCH SEAT,W/TRIM,W/O *RB

main73240-90806-03iBJ40,42,45,FJ40,45,HJ47..V..GEN198210-198510

SEPARATE SEAT,D-GRAY,GRAY

sub73240-90806

main73240-90806-03iBJ40,42,45,FJ40,45,HJ47..LHD..V..GEN198210-198510

BENCH SEAT,GRAY

sub73240-90806

main73240-90806-06iBJ40,42,FJ40..VKC..GEN198210-198410

SEPARATE SEAT,D-BROWN,BROWN

sub73240-90806

main73240-90806-06iBJ40,42,FJ40..VKC..GEN198110-198210

SEPARATE SEAT,W/TRIM,W/O *RB,BROWN

sub73240-90806

main73240-90808-03iBJ42,45,FJ40,45..(PIC,V)..EUR198210-198410

GRAY

main73240-90808-03iBJ42,45,FJ40,45..(PIC,V)..EUR198210-198410

D-GRAY,GRAY

main73240-90808-06iBJ42,FJ40..VKC..EUR198210-198410

D-BROWN,BROWN

main73240-90814-03iBJ42,FJ40,45,HJ47..ARL198210-198410

D-GRAY,GRAY

main73240-90814-06iBJ42,FJ40..WORB..ARL198210-198410

D-BROWN,BROWN

main73240-90815iBJ40,42,45,FJ40,45,HJ47..RHD..V..GEN198210-198410

BENCH SEAT

main73240-90816iBJ42,FJ40..RHD..VKC..GEN198210-198506

W/*ELR,BENCH SEAT

main73240-90817iFJ40..LHD..VKC..GEN198305-198309

OMAN SPEC,BENCH SEAT

sub73240-90806

main73240-90817iFJ40..LHD..VKC..4F198210-198309

*SAA,BENCH SEAT

sub73240-90806

main73240-90818iFJ40..LHD..VKC..4F198309-198410

OMAN SPEC,BENCH SEAT

sub73240-90819

main73240-90818iFJ40..LHD..VKC..GEN198309-198410

*SAA,BENCH SEAT

sub73240-90819

main73240-90819iFJ40..LHD..VKC..4F198309-198410

*SAA,SEPARATE SEAT

main73240-90819iFJ40..LHD..VKC..GEN198309-198410

OMAN SPEC,SEPARATE SEAT

6 parts on this diagram · 7 diagrams in section
