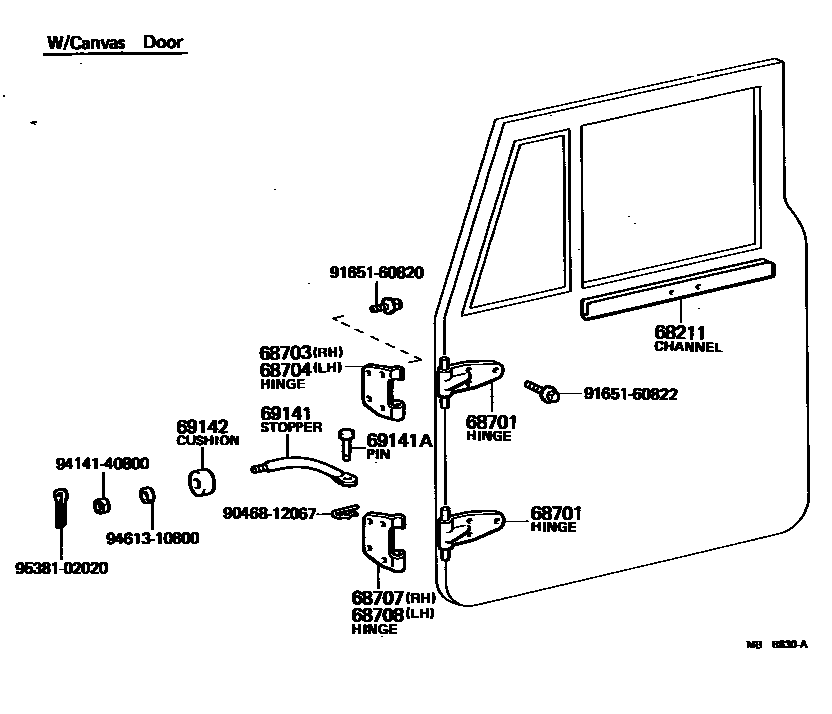

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68211CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)

main68211-60020iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

68701HINGE SUB-ASSY, CANVAS DOOR MALE

main68701-60011iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

68703HINGE SUB-ASSY, CANVAS DOOR FEMALE, UPPER RH

main68713-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

68704HINGE SUB-ASSY, CANVAS DOOR FEMALE, UPPER LH

main68714-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

68707HINGE SUB-ASSY, CANVAS DOOR FEMALE, LOWER RH

main68713-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

68708HINGE SUB-ASSY, CANVAS DOOR FEMALE, LOWER LH

main68714-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

69141STOPPER, FRONT DOOR OPEN

main68980-90300iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

main69141-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

CANVAS DOOR

69141APIN, FRONT DOOR OPEN STOPPER

main68898-90300iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

main90240-08146iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

CANVAS DOOR

sub90240-08028

69142CUSHION, DOOR OPEN STOPPER

main69101-90300iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

9046812067

main90468-12067

9165160820

main91651-60820

9165160822

main91651-60822

9414140800

main94141-40800

9461310800

main94613-10800

9538102020

main95381-02020

15 parts on this diagram · 2 diagrams in section
