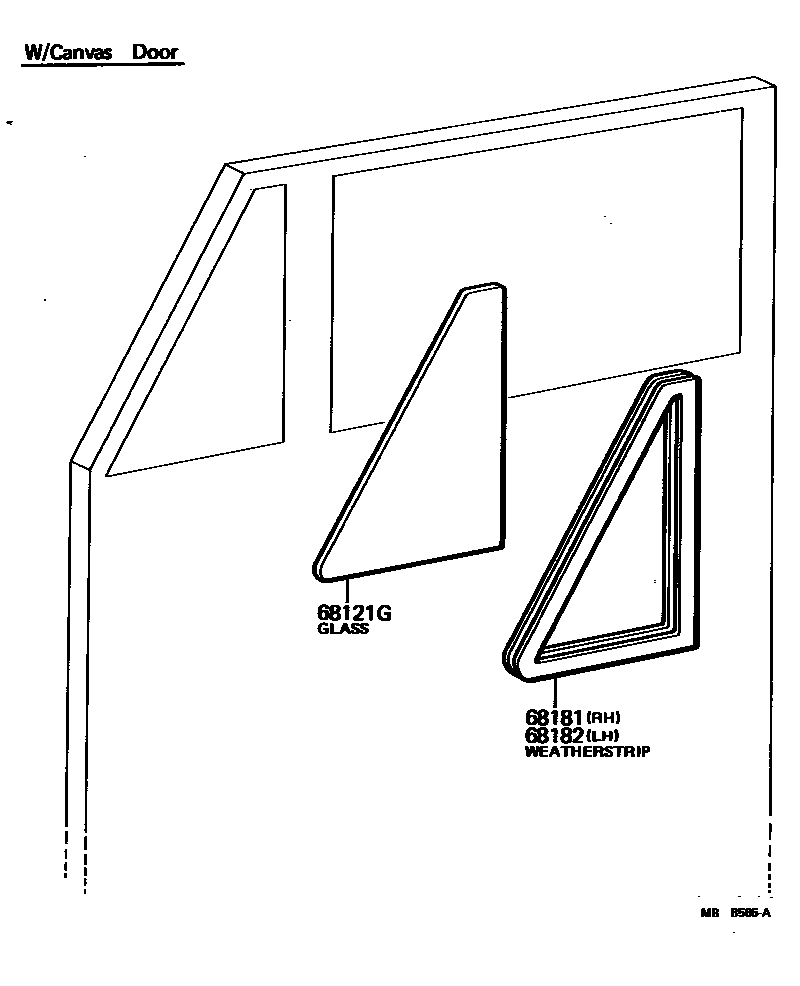

FRONT DOOR VENTILATOR WINDOW

0001 1 0002 1

68121GLASS, VENT WINDOW, RH

main68121-90302iBJ4#,FJ4#,HJ47198008-198604

*TEM,T=5.0

sub68121-90303

main68121-90303iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

*TT,T=5.0

68121GGLASS, VENT WINDOW(FOR CANVAS DOOR)

main68121-90300iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68175-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

CANVAS DOOR

main68181-90300iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68176-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

CANVAS DOOR

main68182-90300iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

4 parts on this diagram · 2 diagrams in section
