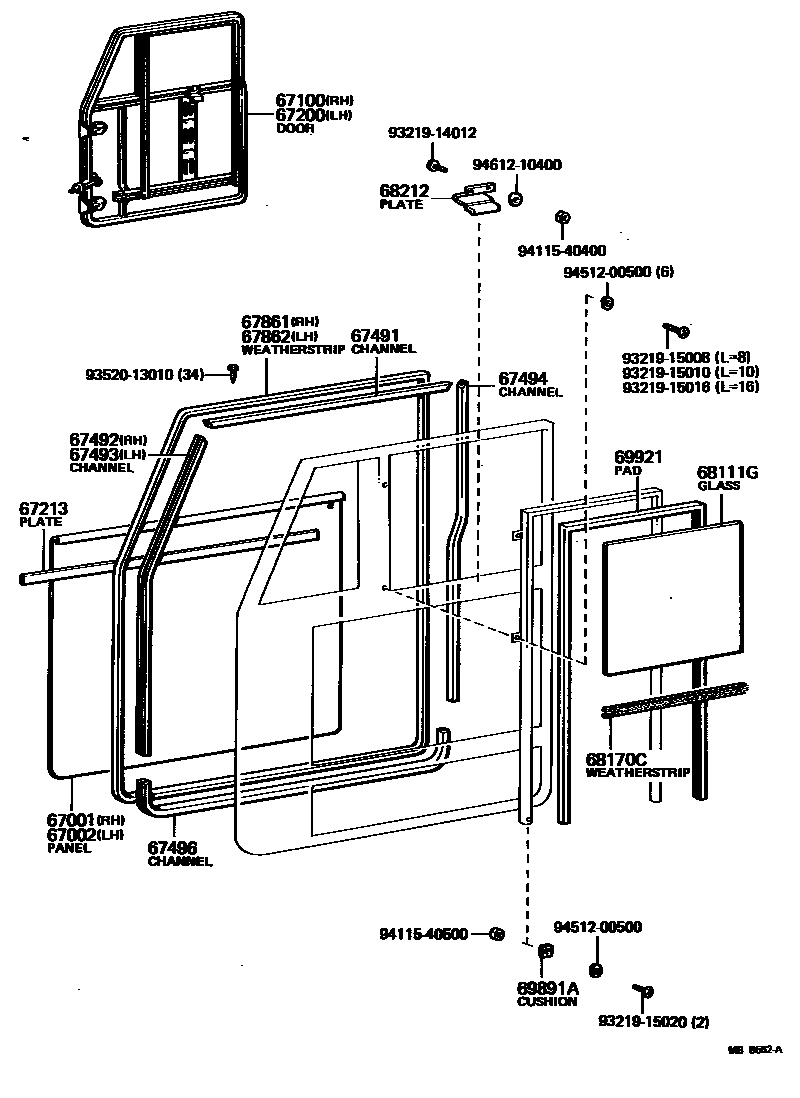

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-90314iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

CANVAS DOOR

main67001-90800iBJ4#,FJ4#,HJ47..3F,4F¥68,400198008-198110

STEEL DOOR

sub67001-90802¥68,200

main67001-90802iBJ4#,FJ4#,HJ47¥68,200198110-198604

STEEL DOOR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-90314iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

CANVAS DOOR

main67002-90800iBJ4#,FJ4#,HJ47..3F,4F¥68,400198008-198110

STEEL DOOR

sub67002-90802¥68,200

main67002-90802iBJ4#,FJ4#,HJ47¥68,200198110-198604

STEEL DOOR

67100DOOR ASSY, FRONT RH

main67100-90321iBJ40,42,43,46,FJ40,43..TP..GEN¥86,000198008-198510

67200DOOR ASSY, FRONT, LH

main67200-90321iBJ40,42,43,46,FJ40,43..TP..GEN¥75,900198008-198510

67213PLATE, FRONT DOOR CANVAS SET

main67211-60020iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

RH

main67212-60020iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

LH

67491CHANNEL, CANVAS DOOR WEATHERSTRIP UPPER HOLD

main67491-60010iBJ40,42,43,46,FJ40,43..TP..GEN¥650198008-198510

CANVAS DOOR

67492CHANNEL, CANVAS DOOR WEATHERSTRIP FRONT HOLD, RH

main67492-60010iBJ40,42,43,46,FJ40,43..TP..GEN¥2,100198008-198510

CANVAS DOOR

67493CHANNEL, CANVAS DOOR WEATHERSTRIP FRONT HOLD, LH

main67493-60010iBJ40,42,43,46,FJ40,43..TP..GEN¥1,540198008-198510

CANVAS DOOR

67494CHANNEL, CANVAS DOOR WEATHERSTRIP REAR HOLD

main67494-60010iBJ40,42,43,46,FJ40,43..TP..GEN¥2,080198008-198510

CANVAS DOOR

67496CHANNEL, CANVAS DOOR WEATHERSTRIP UNDER HOLD

main67496-60010iBJ40,42,43,46,FJ40,43..TP..GEN¥1,540198008-198510

CANVAS DOOR

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90300iBJ4#,FJ4#,HJ47¥12,000198008-198604

STEEL DOOR

main68161-60020iBJ40,42,43,46,FJ40,43..TP..GEN¥11,800198008-198510

CANVAS DOOR

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90300iBJ4#,FJ4#,HJ47¥12,000198008-198604

STEEL DOOR

main68161-60020iBJ40,42,43,46,FJ40,43..TP..GEN¥11,800198008-198510

CANVAS DOOR

68111GGLASS, DOOR WINDOW(FOR CANVAS DOOR)

main68111-90300iBJ40,42,43,46,FJ40,43..TP..GEN¥4,320198008-198510

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68160-90300iBJ4#,FJ4#,HJ47¥1,780198008-198604

W/O *VW

main68160-90301iBJ4#,FJ4#,HJ47¥1,270198008-198604

RH,W/*VW

main68170-90302iBJ4#,FJ4#,HJ47¥1,270198008-198604

LH,W/*VW

68170CWEATHERSTRIP ASSY, CANVAS DOOR GLASS, INNER

main68170-90301iBJ40,42,43,46,FJ40,43..TP..GEN¥2,860198008-198510

68212PLATE, CANVAS DOOR WINDOW HOLDER

main68212-60020iBJ40,42,43,46,FJ40,43..TP..GEN¥650198008-198510

CANVAS DOOR

69891ABUMPER, CANVAS DOOR

main69891-60010iBJ40,42,43,46,FJ40,43..TP..GEN198008-198510

69921PAD, CANVAS DOOR RETAINER

main69921-60010iBJ40,42,43,46,FJ40,43..TP..GEN¥3,600198008-198510

9321914012

main93219-14012¥100

9321915008

main93219-15008

9321915010

main93219-15010¥160

9321915016

main93219-15016¥140

9321915020

main93219-15020¥80

9352013010

main93520-13010¥170

9411540400

main94115-40400¥240

9411540500

main94115-40500¥110

9451200500

main94512-00500¥140

9461210400

main94612-10400¥170

28 parts on this diagram · 2 diagrams in section
