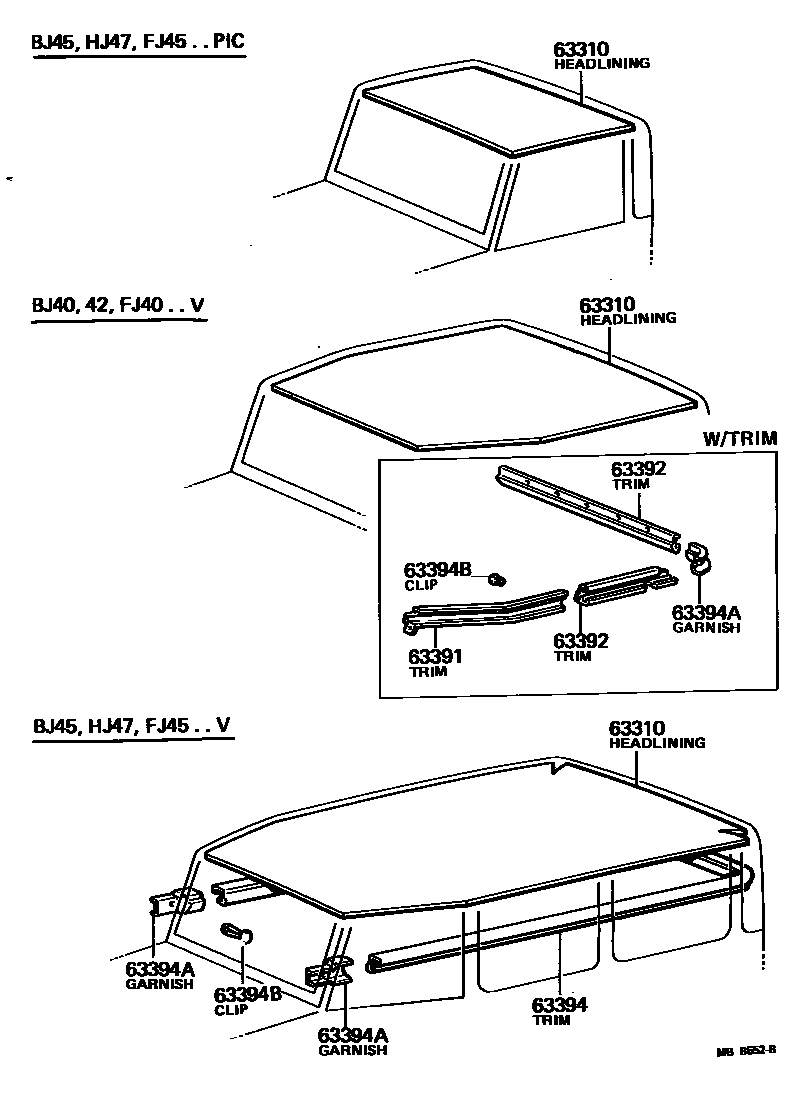

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63311-90302iBJ40,42,FJ40..V198008-198510

main63311-90303iBJ45,FJ45,HJ47..VKC198008-198510

main63311-90333iBJ45,FJ45,HJ47..PIC198008-198604

63391TRIM, ROOF HEADLINING, FRONT

main63304-90800iBJ40,42,FJ40..RHD..VKC198110-198410

RH,W/TRIM,W/O ROLL BAR

main63304-90801iBJ40,42,FJ40..LHD..VKC198110-198410

RH,W/TRIM,W/O ROLL BAR

main63308-90800iBJ40,42,FJ40..RHD..VKC198110-198410

LH,W/TRIM,W/O ROLL BAR

main63308-90801iBJ40,42,FJ40..LHD..VKC198110-198410

LH,W/TRIM,W/O ROLL BAR

63392TRIM, ROOF HEADLINING, REAR

main63392-90800iBJ40,42,FJ40..VKC198110-198410

RH,W/TRIM,W/O ROLL BAR

main63396-90800iBJ40,42,FJ40..VKC198110-198410

CTR,W/TRIM,W/O ROLL BAR

main63397-90800iBJ40,42,FJ40..VKC198110-198410

LH,W/TRIM,W/O ROLL BAR

63394TRIM, ROOF HEADLINING

main63393-90801iBJ45,FJ45,HJ47..VKC198008-198510

63394AGARNISH, ROOF HEADLINING TRIM

main63381-90800iBJ45,FJ45,HJ47..VKC198008-198510

RH

main63381-90802iBJ40,42..VKC198110-198410

RH,W/TRIM,W/O ROLL BAR

main63382-90800iBJ45,FJ45,HJ47..VKC198008-198510

LH

main63382-90802iBJ40,42..VKC198110-198410

LH,W/TRIM,W/O ROLL BAR

63394BCLIP(FOR ROOF HEADLINING TRIM GARNISH)

main90467-07011iBJ45,FJ45,HJ47..VKC198008-198110

main90467-07027iBJ40,42,FJ40..VKC198110-198510

6 parts on this diagram · 1 diagram in section
