INSIDE TRIM BOARD

62057PAD, QUARTER PILLER, RH

main62057-90800iBJ40,42,FJ40..VKC..(3F,4F)..GEN198110-198201

W/O ROLL BAR

main62057-90800iBJ40,42,FJ40..VKC198201-198410

W/*FFRS,W/O ROLL BAR

62057ACLIP(FOR QUARTER PILLER PAD)

main90467-12166iBJ40,42,FJ40..VKC..(3F,4F)..GEN198110-198201

W/O ROLL BAR

main90467-12166iBJ40,42,FJ40..VKC198201-198410

W/*FFRS,W/O ROLL BAR

62057BCLAMP(FOR QUARTER PILLER PAD)

main90463-05592iBJ40,42,FJ40..VKC..(3F,4F)..GEN198110-198201

W/O ROLL BAR

main90463-05592iBJ40,42,FJ40..VKC198201-198410

W/*FFRS,W/O ROLL BAR

62058PAD, QUARTER PILLER, LH

main62058-90800iBJ40,42,FJ40..VKC..(3F,4F)..GEN198110-198201

W/O ROLL BAR

main62058-90800iBJ40,42,FJ40..VKC198201-198410

W/*FFRS,W/O ROLL BAR

62511BOARD, QUARTER INSIDE TRIM, RH

main62521-90803iBJ40,42,FJ40..VKC..GEN198110-198410

FR

main62521-90803iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

FR,W/SEAT BELT,W/O *RB,BROWN

main62521-90804iBJ40,42,FJ40..VKC..GEN198110-198410

FR,W/SEAT BELT,W/O *RB,GRAY

main62521-90805iBJ40,42,FJ40..VKC..GEN198110-198410

FR,W/O *RB,BROWN

main62521-90806iBJ40,42,FJ40..VKC..GEN198110-198410

FR,W/O *RB,GRAY

main62521-90808iFJ40..LHD..VKC..4F198305-198403

*SAA,FR,DARK WINE

main62644-90801iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

RR,W/O *FFRS

main62644-90802iBJ40,42,FJ40..VKC..GEN198110-198410

RR,W/O *RB,BROWN

main62644-90803iBJ40,42,FJ40..VKC..GEN198110-198410

RR,W/O *RB,GRAY

main62644-90804iBJ42,FJ40..VKC..(ARL,EUR)198201-198410

RR,W/*FFRS

main62644-90806iFJ40..LHD..VKC..4F198305-198403

*SAA,RR,DARK WINE

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-12014-03iBJ40,42,FJ40..VKC..GEN198301-198410

W/O ROLL BAR,GRAY,DARK GRAY

sub90467-12014

sub90467-12041

main90467-12014-06iBJ40,42,FJ40..VKC198301-198410

W/O ROLL BAR,BROWN,DARK BROWN

sub90467-12014

sub90467-12041

main90467-12016iBJ40,42,FJ40..VKC198110-198301

W/O ROLL BAR,BROWN

sub90467-12014

main90467-12017iBJ40,42,FJ40..VKC..GEN198110-198301

W/O ROLL BAR,GRAY

sub90467-12014

main90467-12019iFJ40..LHD..VKC..4F198305-198403

*SAA,DARK WINE

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06025iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR,BROWN

main90467-06026iBJ40,42,FJ40..VKC..GEN198110-198410

W/O ROLL BAR,GRAY

main90467-06032iFJ40..LHD..VKC..4F198305-198403

*SAA,DARK WINE

62511SCOVER, QUARTER TRIM JACK

main64707-90800iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

62512BOARD, QUARTER INSIDE TRIM, LH

main62522-90803iBJ40,42,FJ40..VKC..GEN198110-198410

FR

main62522-90803iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

FR,W/SEAT BELT,W/O *RB,BROWN

main62522-90804iBJ40,42,FJ40..VKC..GEN198110-198410

FR,W/SEAT BELT,W/O *RB,GRAY

main62522-90805iBJ40,42,FJ40..VKC..GEN198110-198410

FR,W/O *RB,BROWN

main62522-90806iBJ40,42,FJ40..VKC..GEN198110-198410

FR,W/O *RB,GRAY

main62522-90808iFJ40..LHD..VKC..4F198305-198403

*SAA,FR,DARK WINE

main62645-90801iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

RR,W/O *FFRS

main62645-90802iBJ40,42,FJ40..VKC..GEN198110-198410

RR,W/O *RB,BROWN

main62645-90803iBJ40,42,FJ40..VKC..GEN198110-198410

RR,W/O *RB,GRAY

main62645-90804iBJ42,FJ40..VKC..(ARL,EUR)198201-198410

RR,W/*FFRS

main62645-90806iFJ40..LHD..VKC..4F198305-198403

*SAA,RR,DARK WINE

62674PLATE, QUARTER TRIM SET, NO.1

main62674-90800iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

62675PLATE, QUARTER TRIM SET, NO.2

main62675-90800iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

62677PLATE, QUARTER TRIM SET, NO.3

main62677-90800iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

6777112020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12020

9054106002

main90541-06002

9165540616

main91655-40616

9326915012

main93269-15012

9356055016

main93560-55016

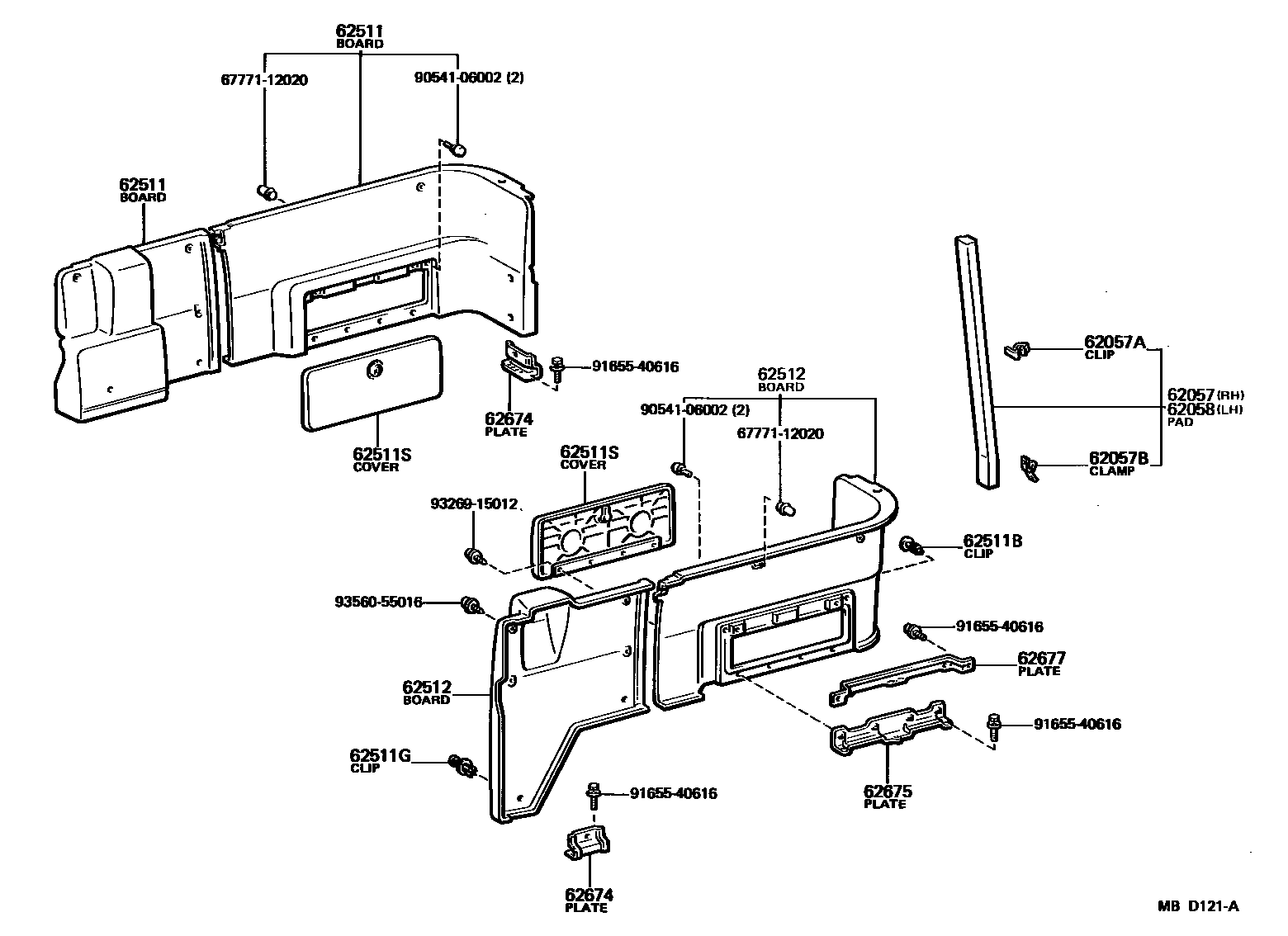

17 parts on this diagram · 1 diagram in section
