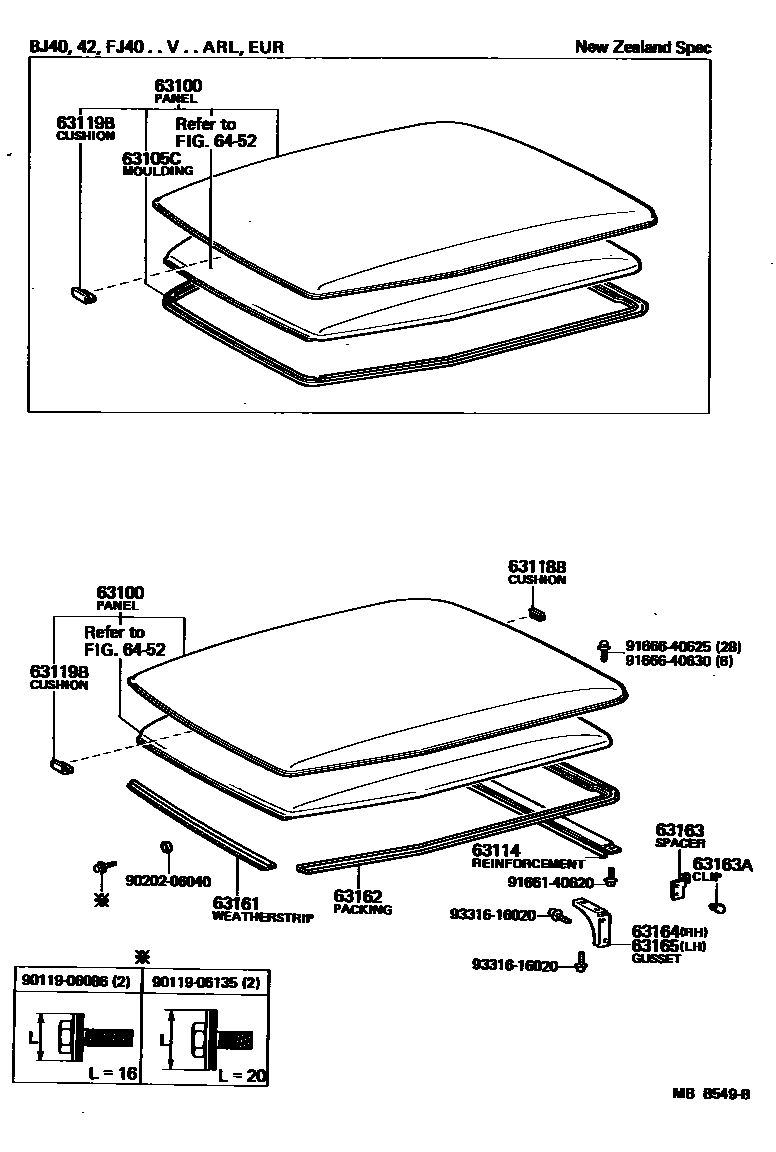

ROOF PANEL & BACK PANEL

0001 1 0002 1

63100PANEL ASSY, ROOF

main63100-90303iBJ40,42,FJ40..V..GEN198008-198510

sub63100-90311

main63100-90311iBJ42,FJ40..V..(ARL,EUR)198008-198410

NEW ZEALAND SPEC

main63100-90311iBJ42,FJ40..V..(ARL,EUR)198008-198410

W/O *FFRS

main63100-90311iFJ40..LHD..VKC..4F198210-198410

*SAA

main63100-90311iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC

main63100-90316iBJ45,FJ45,HJ47..PIC198008-198604

main63100-90801iBJ40,42,FJ40..V..GEN198403-198510

W/ROLL BAR

main63100-90803iBJ45,FJ45,HJ47..VKC198008-198408

sub63100-90814

main63100-90804iBJ42,FJ40..VKC..(ARL,EUR)198201-198410

W/*FFRS

main63100-90805iHJ47..LHD..PIC..CBU198407-198410

CHINA COLD SPEC

main63100-90806iHJ47..LHD..VKC198407-198410

CHINA COLD SPEC

main63100-90814iBJ45,FJ45,HJ47..VKC198408-198510

main63100-90814iBJ45,FJ45,HJ47..VKC..GEN198403-198408

W/ROLL BAR

63105CMOULDING SUB-ASSY, ROOF DRIP

main63105-90302iBJ40,42,FJ40..RHD..VKC..4F..GEN198008-198410

NEW ZEALAND SPEC

main63105-90302iBJ40,42,FJ40..RHD..VKC..4F..GEN198008-198410

W/O *FFRS

main63105-90302iFJ40..LHD..VKC..4F198210-198410

*SAA

main63105-90302iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC

63114REINFORCEMENT, ROOF PANEL, REAR

main63106-90302iBJ40,42,FJ40..VLS198008-198510

main63106-90303iBJ40,42,45,FJ40,45,HJ47..VKC198008-198510

63118BCUSHION, ROOF DRIP MOULDING, REAR

main63118-90300iBJ40,42,FJ40..V198008-198510

63119BCUSHION, ROOF DRIP MOULDING, FRONT

main63119-90300iBJ40,42,45,FJ40,45,HJ47..PIC,V198008-198604

63161WEATHERSTRIP, ROOF

main63161-60011iBJ40,42,45,FJ40,45,HJ47..PIC,V198008-198604

63162PACKING, ROOF DRIP MOULDING

main63162-90801iBJ40,42,FJ40..VKC..GEN198110-198410

W/TRIM,W/O ROLL BAR

sub63162-90802

main63162-90802iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM

main63162-90802iBJ40,42,FJ40..RHD..VKC..4F..GEN198110-198410

NEW ZEALAND SPEC,W/TRIM

main63162-90802iFJ40..LHD..VKC..4F198210-198410

*SAA,W/TRIM

main63162-90802iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,W/TRIM

main63168-90306iBJ40,42,FJ40..V..GEN198008-198510

W/O TRIM

sub63168-90307

main63168-90307iBJ42,FJ40..V..(ARL,EUR)198008-198410

NEW ZEALAND SPEC,W/O TRIM

main63168-90307iBJ42,FJ40..V..(ARL,EUR)198008-198410

W/O TRIM

main63168-90307iFJ40..LHD..VKC..4F198210-198410

*SAA,W/O TRIM

main63168-90307iFJ40..LHD..VKC..GEN198305-198410

OMAN SPEC,W/O TRIM

main63168-90308iBJ45,FJ45,HJ47..VKC..GEN198008-198306

sub63168-90309

main63168-90309iBJ45,FJ45,HJ47..VKC198306-198510

main63168-90309iBJ45,FJ45,HJ47..VKC198008-198306

W/*ELR

main63313-90303iBJ45,FJ45,HJ47..PIC198008-198604

63163SPACER, ROOF DRIP MOULDING STRENGTH

main63167-90302iBJ40,42,45,FJ40,45,HJ47..V198008-198510

RH

main63168-90302iBJ40,42,45,FJ40,45,HJ47..V198008-198510

LH

63163ACLIP, SPRING(FOR ROOF DRIP MOULDING STRENGTH SPACER SET)

main90467-04100iBJ40,42,45,FJ40,45,HJ47..V198008-198510

63164GUSSET, ROOF DRIP MOULDING, RH

main63165-60010iBJ40,42,45,FJ40,45,HJ47..V198008-198510

63165GUSSET, ROOF DRIP MOULDING, LH

main63166-60010iBJ40,42,45,FJ40,45,HJ47..V198008-198510

6452

9011906086

main90119-06086

9011906135

main90119-06135

9020206040

main90202-06040

9166140620

main91661-40620

9166640625

main91666-40625

9166640630

main91666-40630

9331616020

main93316-16020

19 parts on this diagram · 2 diagrams in section
