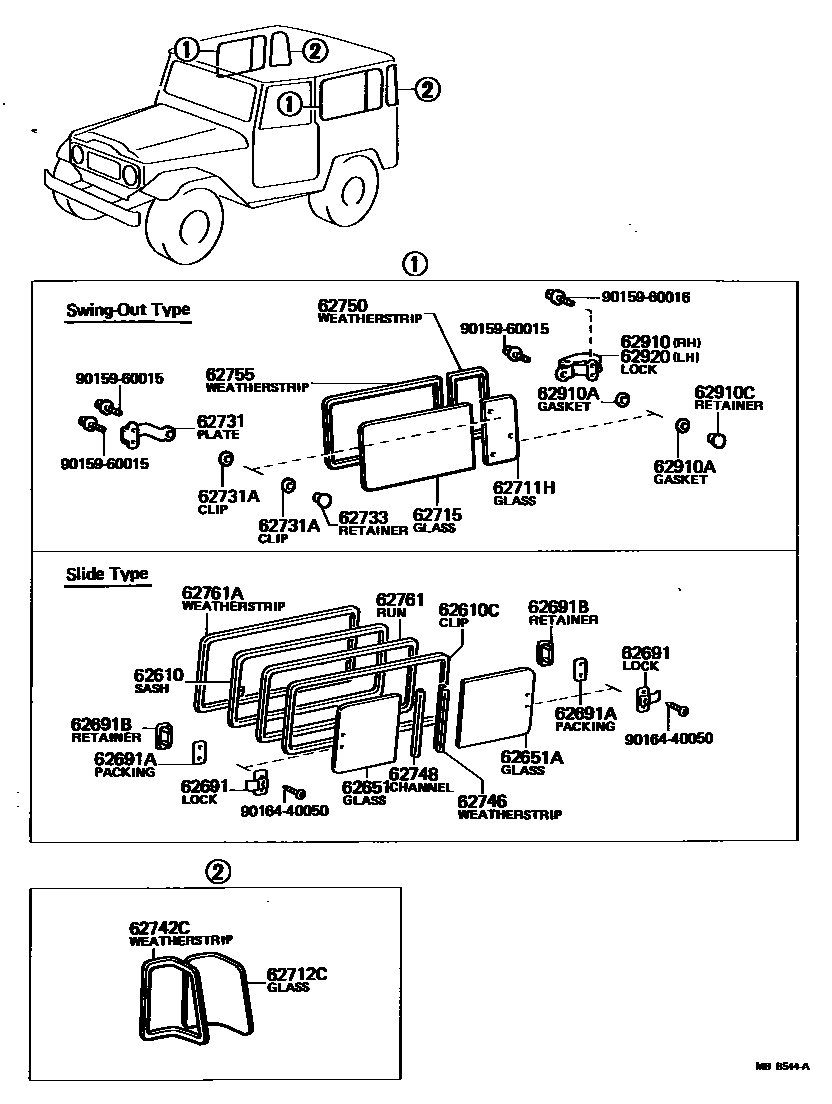

SIDE WINDOW

0001 1 0002 1 0003 1

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62705-90300iBJ40,42,FJ40..VKC198110-198410

RH,W/O ROLL BAR

main62705-90300iBJ45,FJ45,HJ47..VKC198008-198510

RH

main62706-90300iBJ40,42,FJ40..VKC198110-198410

LH,W/O ROLL BAR

main62706-90300iBJ45,FJ45,HJ47..VKC198008-198510

LH

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62775-90300iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

main62775-90300iBJ45,FJ45,HJ47..VKC198008-198510

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62721-90300iBJ40,42,FJ40..VKC198110-198410

*TEM,T=4.0,W/O ROLL BAR

sub62721-90301

main62721-90300iBJ45,FJ45,HJ47..VKC198008-198510

*TEM,T=4.0

sub62721-90301

main62721-90301iBJ40,42,FJ40..VKC..(EUR,GEN)198110-198410

*TT,T=4.0,W/O ROLL BAR

main62721-90301iBJ45,FJ45,HJ47..VKC..(EUR,GEN)198008-198510

*TT,T=4.0

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62722-90300iBJ40,42,FJ40..VKC198110-198410

*TEM,T=4.0,W/O ROLL BAR

sub62722-90301

main62722-90300iBJ45,FJ45,HJ47..VKC198008-198510

*TEM,T=4.0

sub62722-90301

main62722-90301iBJ40,42,FJ40..VKC..(EUR,GEN)198110-198410

*TT,T=4.0,W/O ROLL BAR

main62722-90301iBJ45,FJ45,HJ47..VKC..(EUR,GEN)198008-198510

*TT,T=4.0

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62791-95A01iBJ45,FJ45,HJ47..VKC198008-198101

RH,RR;LH,FR

sub62791-95A02

main62791-95A02iBJ45,FJ45,HJ47..VKC198101-198112

RH,RR;LH,FR

sub62910-95702

main62791-95A02iBJ40,42,FJ40..VKC..(3F,4F)198110-198112

RH,RR,W/O ROLL BAR;LH,FR,W/O ROLL BAR

sub62910-95702

main62798-95A00iBJ45,FJ45,HJ47..VKC198008-198101

LH,RR;RH,FR

sub62798-95A01

main62798-95A01iBJ45,FJ45,HJ47..VKC198101-198112

LH,RR;RH,FR

sub62910-95702

main62798-95A01iBJ40,42,FJ40..VKC..(3F,4F)198110-198112

RH,FR,W/O ROLL BAR;LH,RR,W/O ROLL BAR

sub62910-95702

main62910-95702iBJ40,42,FJ40..VKC198112-198410

W/O ROLL BAR

main62910-95702iBJ45,FJ45,HJ47..VKC198112-198510

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

main62792-95A00iBJ45,FJ45,HJ47..VKC198008-198510

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95A00iBJ45,FJ45,HJ47..VKC198008-198101

sub62793-95A01

main62793-95A01iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

sub62793-95704

main62793-95A01iBJ45,FJ45,HJ47..VKC198101-198510

sub62793-95704

62711HGLASS, SIDE WINDOW, NO.1(FOR HINGE TYPE)

main62714-90300iBJ40,42,45,FJ40,45,HJ47..V198008-198510

*TEM,T=4.0

sub62714-90301

main62714-90301iBJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)198008-198510

*TT,T=4.0

62712CGLASS, SIDE WINDOW CORNER

main62712-90300iBJ40,42,45,FJ40,45,HJ47..V198008-198510

RH,*TEM,T=5.0

sub62712-90301

main62712-90301iBJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)198008-198510

RH,*TT,T=5.0

main62713-90300iBJ40,42,45,FJ40,45,HJ47..V198008-198510

LH,*TEM,T=5.0

sub62713-90301

main62713-90301iBJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)198008-198510

LH,*TT,T=5.0

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62711-90303iBJ40,42,45,FJ40,45,HJ47..V198008-198510

*TEM,T=4.0

sub62711-90304

main62711-90304iBJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)198008-198510

*TT,T=4.0

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62704-90300iBJ40,42,FJ40..V198008-198510

62731ACLIP, QUARTER WINDOW HINGE PLATE

main62734-12010iBJ45,FJ45,HJ47..VKC198008-198510

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-90300iBJ40,42,FJ40..V198008-198510

62742CWEATHERSTRIP, SIDE WINDOW CORNER

main62742-90300iBJ40,42,45,FJ40,45,HJ47..V198008-198510

62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62773-90300iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

main62773-90300iBJ45,FJ45,HJ47..VKC198008-198510

62748CHANNEL, SIDE WINDOW GLASS

main62774-90300iBJ45,FJ45,HJ47..VKC198008-198510

main62774-90300iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

62750WEATHERSTRIP, SIDE WINDOW, NO.1(FOR HINGE TYPE)

main62744-90300iBJ40,42,45,FJ40,45,HJ47..V..(3F,4F)198107-198206

RH

sub62797-90800

main62744-90300iBJ40,42,45,FJ40,45,HJ47..V..(3F,4F)198008-198107

sub62797-90800

main62797-90800iBJ40,42,45,FJ40,45,HJ47..V198206-198510

RH

main62798-90800iBJ40,42,45,FJ40,45,HJ47..V..(3F,4F)198107-198206

LH

sub62798-90801

main62798-90801iBJ40,42,45,FJ40,45,HJ47..V198206-198510

LH

62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62741-90303iBJ40,42,45,FJ40,45,HJ47..V198008-198510

62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62753-90300iBJ40,42,FJ40..VKC198110-198410

RH,W/O ROLL BAR

main62753-90300iBJ45,FJ45,HJ47..VKC198008-198510

RH

main62754-90300iBJ40,42,FJ40..VKC198110-198410

LH,W/O ROLL BAR

main62754-90300iBJ45,FJ45,HJ47..VKC198008-198510

LH

62761AWEATHERSTRIP, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62761-90300iBJ40,42,FJ40..VKC198110-198410

W/O ROLL BAR

main62761-90300iBJ45,FJ45,HJ47..VKC198008-198510

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-90300iBJ40,42,FJ40..V198008-198510

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main62734-12010iBJ40,42,FJ40..V198008-198510

62910CRETAINER, SIDE WINDOW LOCK

main62733-90300iBJ40,42,FJ40..V198008-198510

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-90300iBJ40,42,FJ40..V198008-198510

9015960015

main90159-60015

9015960016

main90159-60016

9016440050

main90164-40050

27 parts on this diagram · 3 diagrams in section
