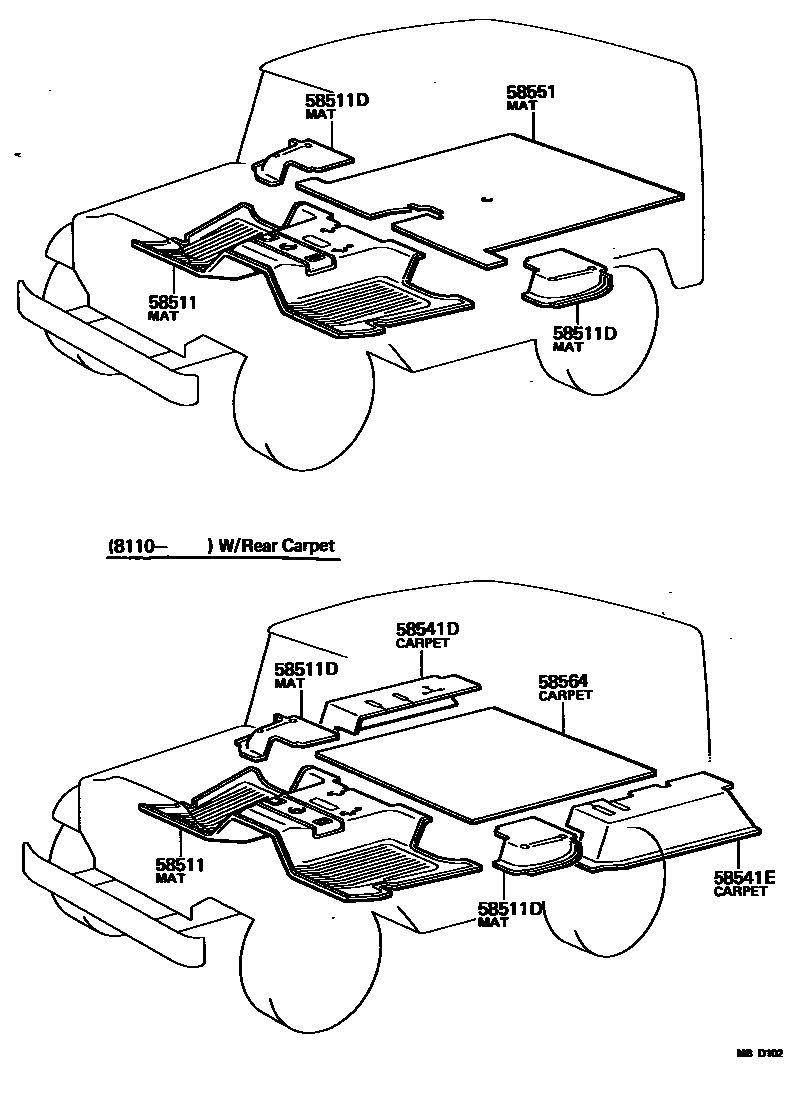

FLOOR MAT & SILENCER PAD
58511MAT, FLOOR, FRONT
W/MECHANICAL WINCH
W/MECHANICAL WINCH
W/ORB,W/MECHANICAL WINCH,BROWN
W/O *RB,BROWN
W/ORB,W/MECHANICAL WINCH,BROWN
W/O *RB,BROWN
DARK GRAY,GRAY
DARK BROWN,BROWN
DARK GRAY,GRAY
DARK BROWN,BROWN
sub58510-90300
W/O *RB,BROWN
W/ORB,W/MECHANICAL WINCH,BROWN
W/ORB,W/MECHANICAL WINCH,BROWN
sub58510-90803
W/O *RB,BROWN
W/O *RB,BROWN
DARK GRAY,GRAY
DARK BROWN,BROWN
W/MECHANICAL WINCH,DARK GRAY,GRAY
sub58511-90809
W/MECHANICAL WINCH,DARK BROWN,BROWN
sub58511-90809
W/MECHANICAL WINCH,DARK GRAY,GRAY
W/MECHANICAL WINCH,DARK BROWN,BROWN
*SAA,DARK WINE
58511DMAT SUB-ASSY, FRONT FLOOR, REAR
RH
LH
*SAA,RH,DARK WINE
*SAA,LH,DARK WINE
58541DCARPET, REAR WHEEL HOUSE, RH
W/O *RB,BROWN
W/*FFRS,W/O *RB,BROWN
W/O *RB,GRAY
W/O *FFRS,BROWN
*SAA,DARK WINE
58541ECARPET, REAR WHEEL HOUSE, LH
W/*FFRS,W/O *RB,BROWN
W/O *RB,BROWN
W/O *RB,GRAY
W/O *FFRS,BROWN
*SAA,DARK WINE
58551MAT, FLOOR, REAR
FR BENCH SEAT,W/RR HEATER
FR BENCH SEAT,W/RR HEATER
FR BENCH SEAT,W/RR HEATER
W/O *RB,GRAY
W/STARTING HANDLE,W/O *RB,GRAY
58564CARPET, REAR FLOOR
W/O *FFRS
W/O *RB
W/*FFRS,W/O *RB
W/RR HEATER,W/O *FFRS
W/*FFRS,STARTING HANDLE,W/O*RB
W/STARTING HANDLE,W/O *FFRS
W/*FFRS,STARTING HANDLE
*SAA,DARK WINE
*SAA,DARK WINE
6 parts on this diagram · 1 diagram in section
