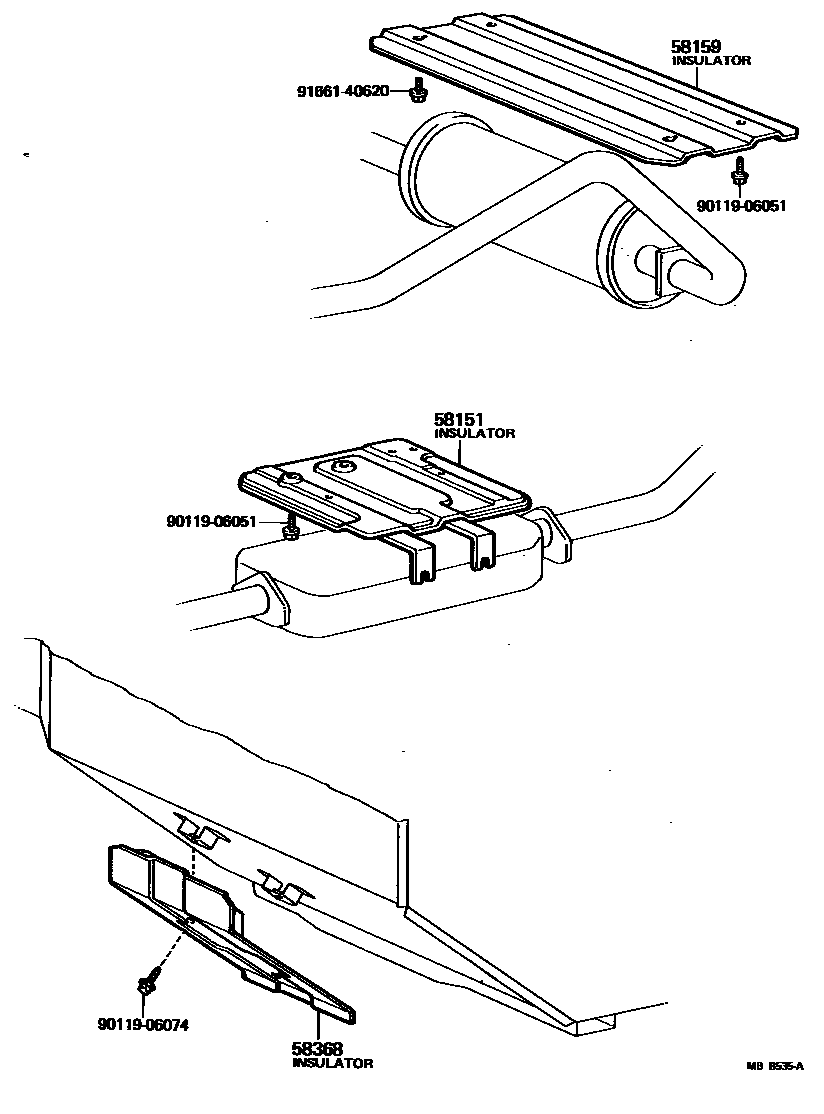

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58017-90800iFJ40..ARL198008-198604

main58017-90801iFJ40..EUR198008-198410

main58165-90800iBJ45;BJ42,46..ARL,EUR198008-198410

58159INSULATOR, MAIN MAFFLAR HEAT

main58321-90800iFJ40198110-198510

main58371-90303iFJ40..3F,4F198008-198110

58368INSULATOR, HEAT

main55203-90800iFJ45,HJ47;FJ40..ARL,EUR198008-198102

W/COOLER

main55203-90800iFJ4#,HJ47198102-198604

main55203-90801iBJ4#198008-198410

9011906051

main90119-06051

9011906074

main90119-06074

9166140620

main91661-40620

6 parts on this diagram · 1 diagram in section
