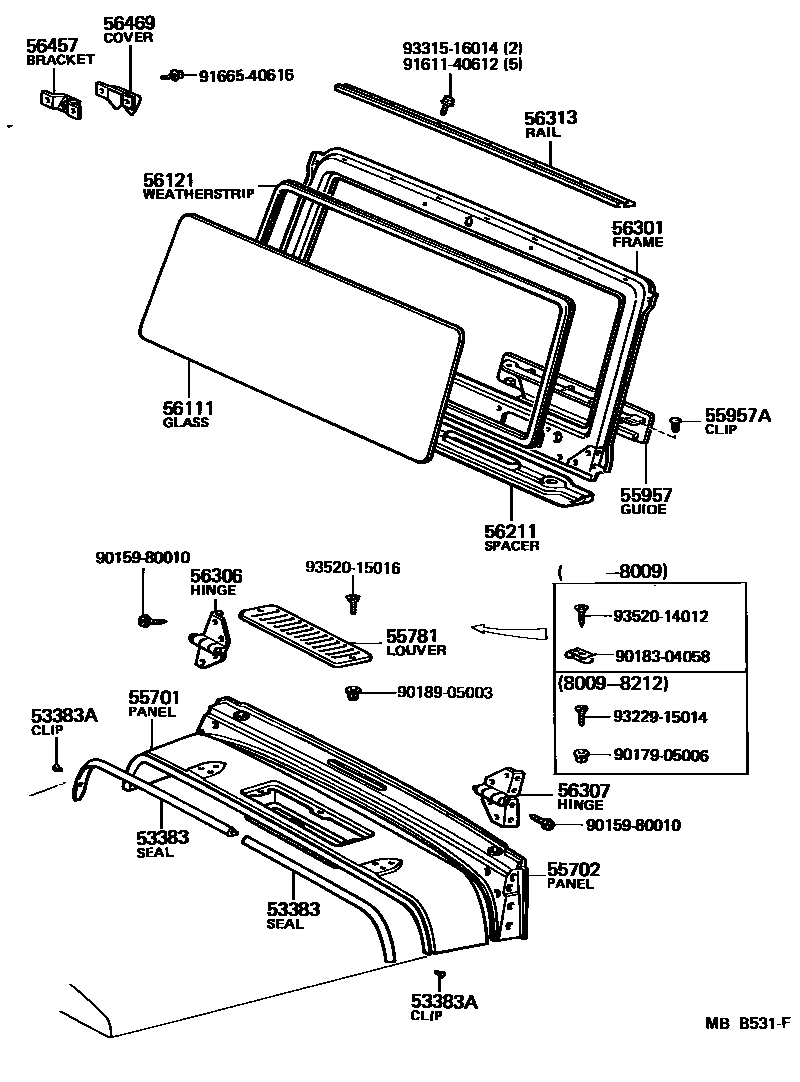

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

RH

main53389-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

LH

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-04006iBJ42,FJ40,45,HJ47..ARL198110-198410

55701PANEL SUB-ASSY, COWL

main55701-90074iBJ4#,FJ4#,HJ47198008-198604

W/HEATER

main55701-90270iBJ4#,FJ4#,HJ47..(3F,4F)..(EUR,GEN)198008-198110

W/O HEATER

main55701-90800iBJ4#,FJ4#,HJ47..EUR,GEN198110-198212

W/O HEATER

sub55701-90802

sub90189-05003

sub93520-15016

main55701-90802iBJ4#,FJ4#,HJ47..EUR,GEN198212-198604

W/O HEATER

55702PANEL SUB-ASSY,COWL TOP, INSIDE

main55702-60052iBJ40,42,43,46,FJ40,43..RHD..TPC198008-198110

W/CANVAS DOOR

main55702-60090iBJ4#,FJ4#,HJ47..LHD198008-198210

W/O ANTENA

main55702-90301iBJ40,42,43,46,FJ40,43..LHD..TP..GEN198008-198210

W/CANVAS DOOR

main55702-90305iBJ4#,FJ4#,HJ47..RHD198008-198110

main55702-90800iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198110-198506

W/O ANTENA

main55702-90802iBJ4#,FJ4#,HJ47..LHD198205-198210

W/ANTENA

main55702-90803iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198205-198506

W/ANTENA

main55702-90804iHJ47..LHD..CBU198407-198410

CHINA COLD SPEC

main55702-90804iBJ40,43,FJ4#..LHD..TP..GEN198210-198510

W/CANVAS DOOR

main55702-90805iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198210-198604

W/O ANTENA

main55702-90806iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198210-198604

W/ANTENA

55781LOUVER, COWL VENTILATOR

main55768-60010iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

55957GUIDE, DEFROSTER

main55956-90300iBJ4#,FJ4#,HJ47198008-198604

RH

main55957-90300iBJ4#,FJ4#,HJ47198008-198604

LH

55957ACLIP(FOR DEFROSTER GUIDE)

main90467-07003iBJ4#,FJ4#,HJ47198008-198604

56111GLASS, WINDSHIELD

main56111-90300iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

*ZT,T=5.0

sub56111-90301

main56111-90301iBJ4#,FJ4#,HJ47198008-198604

*LAM,T=6.7

sub56111-90303

main56111-90302iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

*TZT,T=5.0

sub56111-90303

main56111-90303iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

*TL,T=6.7

main56111-90800iBJ42,FJ40,45,HJ47..ARL198105-198410

*LAM,T=6.7

56121WEATHERSTRIP, WINDSHIELD

main56121-90300iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

GLASS T=5.0,W/O MOULDING

main56121-90301iBJ4#,FJ4#,HJ47198008-198604

GLASS T=6.7,W/O MOULDING

main56121-90302iBJ40,42,43,46,FJ40,43..GEN198008-198604

GLASS T=5.0 & W/MOULDING

main56121-90303iBJ40,42,43,46,FJ40,43..GEN198008-198604

GLASS T=6.7 & W/MOULDING

56211SPACER, WINDSHIELD

main56211-90300iBJ4#,FJ4#,HJ47..3F,4F198008-198106

sub56211-90801

main56211-90801iBJ4#,FJ4#,HJ47..3F,4F198106-198604

main56211-90802iBJ42,45,FJ40,45..(PIC,V)..(ARL,EUR)198110-198410

56301FRAME SUB-ASSY, WINDSHIELD

main56301-90324iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

main56301-90325iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

main56301-90341iHJ47..LHD..CBU198407-198410

CHINA COLD SPEC

main56301-90810iBJ42,FJ40..VKC..ARL198201-198410

W/*FFRS

56306HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH

main56306-90302iBJ4#,FJ4#,HJ47198008-198604

56307HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH

main56307-90302iBJ4#,FJ4#,HJ47198008-198604

56313RAIL, WINDSHIELD FRAME, UPPER

main56313-90300iBJ40,42,43,46,FJ4#..TP198008-198510

56457BRACKET, WINDSHIELD CATCH, UPPER

main56457-60010iBJ4#,FJ4#,HJ47198008-198604

56469COVER, WINDSHIELD CATCH

main56469-60010iBJ4#,FJ4#,HJ47198008-198604

9015980010

main90159-80010

9017905006

main90179-05006

9018304058

main90183-04058

9018905003

main90189-05003

9161140612

main91611-40612

9166540616

main91665-40616

9322915014

main93229-15014

9331516014

main93315-16014

9352014012

main93520-14012

9352015016

main93520-15016

26 parts on this diagram · 1 diagram in section
