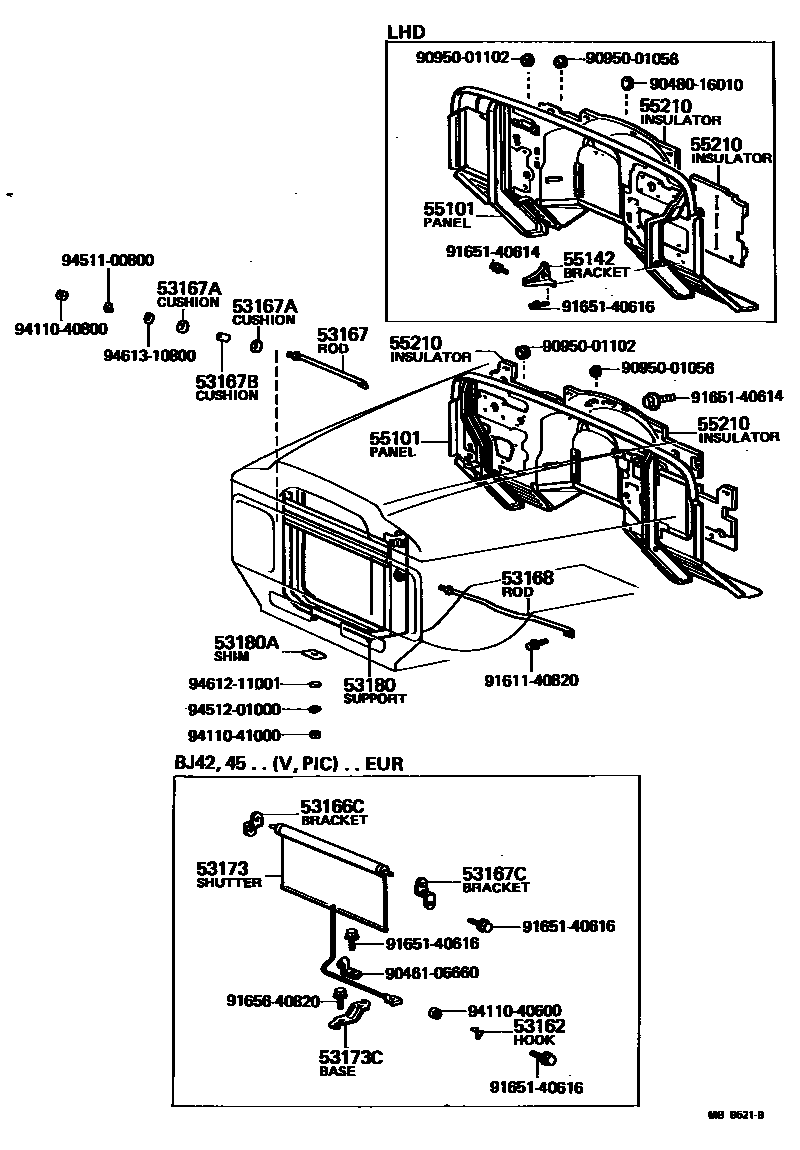

FRONT FENDER APRON & DASH PANEL

53162HOOK, RADIATOR SHUTTER

main53162-90500iBJ42,45..(PIC,V)..EUR198008-198410

53166CBRACKET, RADIATOR SHUTTER SUPPORT, RH

main53166-90301iBJ42,45..(PIC,V)..EUR198008-198410

53167ROD, RADIATOR BRACE, RH

main53016-60011iFJ4#198008-198604

main53016-60021iFJ40..WORB..ARL198008-198410

W/OVER SIZE RADIATOR

main53016-60021iHJ47198008-198506

main53016-60021iFJ40,45..WORB..ARL198008-198410

*NSW,W/OVER SIZE RADIATOR

main53016-60040iFJ40..ARL198008-198410

*NSW,W/POWER STEERING

main53016-60040iFJ40,45..RHD..(PIC,V)198008-198506

W/COOLER

main53016-60060iFJ40,45..LHD..(PIC,V)..GEN198008-198604

W/COOLER

main53016-60080iFJ40..WORB..ARL198008-198410

W/OVER SIZE RADIATOR,COOLER

main53016-60080iFJ40..WORB..ARL198008-198410

*NSW,W/OVERSIZERADIATOR,COOLER

main53167-60030iBJ4#..EUR,GEN198008-198410

24V

main53167-60041iBJ4#..ARL,GEN198008-198410

12V

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iBJ4#,FJ4#,HJ47198008-198604

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iBJ4#,FJ4#,HJ47198008-198604

53167CBRACKET, RADIATOR SHUTTER SUPPORT, LH

main53167-90301iBJ42,45..(PIC,V)..EUR198008-198410

53168ROD, RADIATOR BRACE, LH

main53018-60012iFJ4#198008-198604

main53018-60030iFJ40,45..WORB..ARL198008-198410

W/OVER SIZE RADIATOR

main53018-60030iHJ47198008-198506

main53018-60040iFJ40..ARL198008-198410

*NSW,W/POWER STEERING

main53169-60020iBJ4#198008-198410

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-90300iBJ42,45..(PIC,V)..EUR198008-198410

53173CBASE, RADIATOR SHUTTER CONTROL WIRE CLAMP

main53168-90301iBJ42,45..(PIC,V)..EUR198008-198410

53180SUPPORT ASSY, RADIATOR

main53201-60011iBJ4#198008-198110

sub53201-60012

main53201-60012iBJ4#198110-198410

main53201-60021iFJ4#198008-198604

main53201-60042iFJ40,45..ARL198008-198410

W/TEMPERED FAN

main53201-60042iHJ47198008-198506

53180ASHIM(FOR RADIATOR SUPPORT)

main90950-04010iBJ4#,FJ4#,HJ47198008-198604

55101PANEL SUB-ASSY, DASH

main55101-90417iHJ47..RHD..GEN198110-198210

W/O HEATER

main55101-90417iHJ47..RHD198008-198110

main55101-90430iFJ40..LHD..VKC..4F;FJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198401-198410

*SAA,W/HEATER

main55101-90471iFJ40,45..RHD..GEN198305-198506

W/HEATER,COOLER

main55101-90472iFJ40,45..RHD..GEN198305-198506

W/O HEATER,W/COOLER

main55101-90473iFJ4#..RHD..GEN198305-198506

W/O HEATER

main55101-90476iBJ40,42,43,45..RHD..GEN198305-198410

W/O HEATER

main55101-90478iHJ47..RHD..GEN198305-198506

W/O HEATER

main55101-90480iFJ40,45..EUR198309-198410

W/O HEATER

main55101-90481iFJ40,45..EUR198309-198410

W/HEATER

main55101-90483iBJ42..V..EUR198309-198410

W/HEATER

main55101-90486iFJ40..LHD..VKC..4F;FJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198401-198410

*SAA,W/O HEATER,W/COOLER

main55101-90489iFJ40..LHD..VKC..4F;FJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198401-198410

*SAA,W/O HEATER

main55101-90801iHJ47..LHD198008-198210

W/HEATER

main55101-90808iHJ47..LHD198008-198210

W/O HEATER

main55101-90811iFJ45..LHD..GEN..IV;FJ45..LHD..VKC..GEN;FJ40..LHD..(TPC,VLS)..GEN198210-198305

VENEZUELA SPEC

main55101-90811iFJ4#..LHD198008-198210

W/O HEATER

main55101-90812iFJ4#..RHD..GEN198008-198210

W/O HEATER

main55101-90813iBJ4#..RHD..GEN198008-198210

W/O HEATER

main55101-90815iBJ4#..LHD198008-198210

W/O HEATER

main55101-90818iFJ45..LHD..GEN198008-198102

W/HEAT INSULATOR

main55101-90822iFJ4#..LHD198008-198210

W/HEATER

main55101-90824iBJ4#..LHD198008-198210

W/HEATER

main55101-90826iFJ4#..RHD198008-198210

W/HEATER

main55101-90827iBJ4#..RHD198008-198210

W/HEATER,HEAT INSULATOR

main55101-90828iHJ47..RHD198110-198210

W/HEATER

main55101-90836iBJ4#..RHD..GEN198008-198210

W/HEATER,W/O HEAT INSULATOR

main55101-90839iHJ47..RHD198210-198305

W/HEATER

sub55101-90872

sub90950-01056

main55101-90840iHJ47..LHD198210-198305

W/HEATER

sub55101-90887

sub90950-01056

main55101-90845iHJ47..RHD..GEN198210-198305

W/O HEATER

sub55101-90478

sub90950-01056

main55101-90847iFJ40,45..RHD..GEN198210-198305

W/HEATER,COOLER

sub55101-90471

sub90950-01056

main55101-90848iFJ40,45..RHD..GEN198210-198305

W/O HEATER,W/COOLER

sub55101-90472

sub90950-01056

main55101-90849iFJ4#..LHD..GEN198210-198305

W/HEATER COOLER

sub55101-90875

sub90950-01056

main55101-90850iFJ4#..LHD..GEN198210-198305

W/O HEATER,W/COOLER

sub55101-90876

sub90950-01056

main55101-90854iHJ47..LHD198210-198305

W/O HEATER

sub55101-90888

sub90950-01056

main55101-90856iFJ40,45..EUR198210-198309

W/O HEATER

sub55101-90480

sub90950-01056

main55101-90857iFJ4#..RHD..GEN198210-198305

W/O HEATER,COOLER

sub55101-90473

sub90950-01056

main55101-90858iBJ40,42,43,45..RHD..GEN198210-198305

W/O HEATER

sub55101-90476

sub90950-01056

main55101-90859iFJ4#..LHD..GEN198210-198305

W/O HEATER,COOLER

sub55101-90879

sub90950-01056

main55101-90860iBJ42,45,46..EUR198210-198309

W/O HEATER

sub55101-90885

sub90950-01056

main55101-90861iFJ4#..RHD..GEN198210-198305

W/HEATER,W/OCOOLER

sub55101-90870

sub90950-01056

main55101-90862iBJ40,42,43,45..RHD..GEN198210-198305

W/HEATER

sub55101-90871

sub90950-01056

main55101-90863iFJ4#..LHD..GEN198210-198305

W/HEATER,W/O COOLER

sub55101-90880

sub90950-01056

main55101-90864iBJ42,46..TPC..EUR198210-198309

W/HEATER

sub55101-90886

sub90950-01056

main55101-90866iFJ40,45..EUR198210-198309

W/HEATER

sub55101-90481

sub90950-01056

main55101-90868iBJ42..V..EUR198210-198309

W/HEATER

sub55101-90483

sub90950-01056

main55101-90870iFJ4#..RHD;FJ40..TPC..EUR198305-198506

W/HEATER

main55101-90870iFJ40,45..ARL198210-198305

main55101-90871iBJ40,42,43,45..RHD198305-198410

W/HEATER

main55101-90871iBJ42..ARL198210-198305

main55101-90872iHJ47..RHD198210-198506

W/HEATER

main55101-90875iFJ4#..LHD..GEN198305-198410

W/HEATER COOLER

main55101-90875iFJ40..LHD..VKC..4F;FJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198401-198410

*SAA,W/HEATER,COOLER

main55101-90876iFJ4#..LHD..GEN198305-198410

W/O HEATER,W/COOLER

sub55101-90486

main55101-90879iFJ4#..LHD..GEN198305-198410

W/O HEATER

sub55101-90489

main55101-90880iFJ4#..LHD..GEN198305-198410

W/HEATER

sub55101-90430

main55101-90881iFJ45..LHD..GEN..IV;FJ45..LHD..VKC..GEN;FJ40..LHD..(TPC,VLS)..GEN198305-198604

W/O COOLER

main55101-90882iFJ45..LHD..GEN..IV;FJ45..LHD..VKC..GEN;FJ40..LHD..(TPC,VLS)..GEN198305-198604

W/COOLER

main55101-90885iBJ4#..LHD198305-198410

W/O HEATER

main55101-90886iBJ42,46..TPC..EUR198305-198410

W/HEATER

main55101-90887iHJ47..LHD198305-198410

W/HEATER

main55101-90888iHJ47..LHD198305-198410

W/O HEATER

55142BRACKET,BLOWER MOTOR, LOWER

main55142-90300iFJ4#..LHD..GEN198008-198604

W/HEATER & COOLER

55210INSULATOR ASSY, DASH PANEL

main55210-90800iBJ42..V..EUR198110-198410

RH

main55210-90801iBJ42..ARL198110-198410

LH

sub55210-90803

main55210-90802iFJ40..V..EUR198110-198210

RH

main55210-90803iFJ40..WORB..ARL198110-198410

LH

main55210-90804iFJ40..VKC..EUR198210-198410

RH

main55220-90800iBJ42..V..EUR198110-198410

LH

main55220-90801iBJ42,FJ40..WORB..ARL198110-198410

RH

main55220-90802iFJ40..V..EUR198110-198410

LH

9046106660

main90461-06660

9048016010

main90480-16010

9095001056

main90950-01056

9095001102

main90950-01102

9161140820

main91611-40820

9165140614

main91651-40614

9165140616

main91651-40616

9165640820

main91656-40820

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451201000

main94512-01000

9461211001

main94612-11001

9461310800

main94613-10800

29 parts on this diagram · 1 diagram in section
