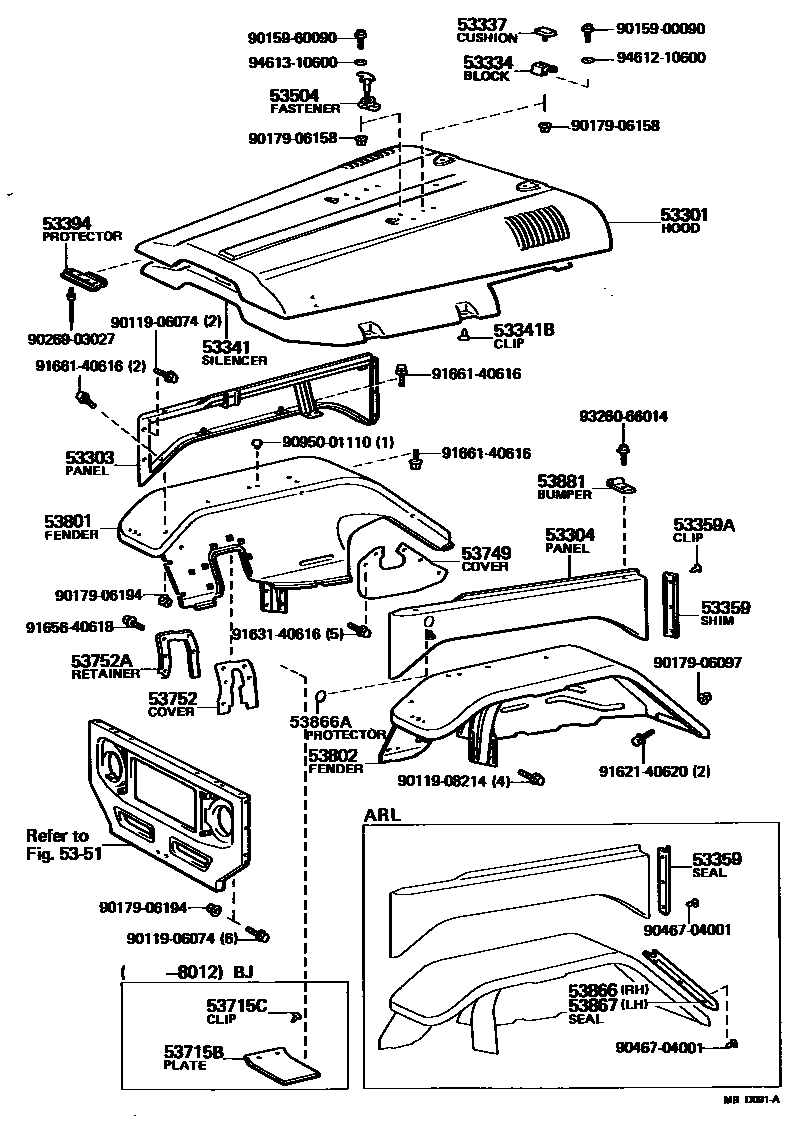

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-90311iBJ4#,FJ4#..(3F,4F)..(ARL,GEN)198008-198105

main53301-90800iHJ47198008-198104

main53301-90801iBJ42,45,46,FJ40,45..ARL,EUR198008-198105

W/SILENCER

main53301-90802iHJ47198104-198105

sub53301-90816

main53301-90804iBJ42,FJ40,45..WORB..ARL198105-198110

main53301-90806iHJ47..ARL198105-198110

main53301-90808iFJ40,45..RB..ARL198110-198301

main53301-90810iHJ47198110-198301

main53301-90812iBJ42,FJ40,45..WORB..ARL198110-198301

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-90801iFJ4#,HJ47..3F,4F198008-198012

main53303-90802iBJ4#..LHD198008-198012

main53303-90803iBJ4#..RHD198008-198012

main53303-90805iFJ4#,HJ47198012-198604

main53303-90806iBJ4#..RHD198012-198108

main53303-90807iBJ4#..LHD198012-198108

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-90801iBJ4#..RHD198008-198012

main53304-90802iFJ40..ARL198008-198012

NEW SOUTH WALES SPEC

main53304-90803iBJ4#..LHD198008-198012

main53304-90806iBJ4#..RHD198012-198108

main53304-90807iFJ40..VKC..4F..ARL198012-198410

NEW SOUTH WALES SPEC

main53304-90808iFJ4#,HJ47..ARL,GEN198108-198604

main53304-90813iHJ47..LHD..CBU198407-198410

CHINA COLD SPEC

53334BLOCK, WINDSHIELD REST

main53334-90303×2iFJ40,45..RB..ARL198105-198410

main53334-90304×2iBJ4#,FJ4#,HJ47..GEN198008-198604

CHROME PLATED

53337CUSHION, WINDSHIELD REST BLOCK

main53337-90301×2iBJ4#,FJ4#,HJ47..3F,4F198008-198105

53341SILENCER, HOOD, NO.1

main53316-90800iBJ42,45,46,FJ40,45,HJ47..ARL,EUR198008-198210

main53316-90801iFJ40..ARL198008-198210

NEW SOUTH WALES SPEC

53341BINSULATOR, HOOD

main90467-09008×6iBJ42,45,46,FJ40,45,HJ47..ARL,EUR198008-198210

53359SHIM, HOOD SIDE PANEL CUSHION

main53359-90301×2iBJ4#,FJ4#,HJ47..3F,4F198008-198110

main53397-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

RH

main53398-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

LH

53359ACLAMP OR CLIP, HOOD SIDE PANEL CUSHION SHIM

main90467-04006iBJ4#,FJ4#,HJ47198110-198604

main90467-04100×6iBJ4#,FJ4#,HJ47..3F,4F198008-198110

53394PROTECTOR, HOOD, FRONT

main53393-90800iBJ4#,FJ4#,HJ47198110-198604

RH

main53394-90800iBJ4#,FJ4#,HJ47198110-198604

LH

53504FASTENER SUB-ASSY, HOOD

main53504-90300×2iFJ40,45..RB..ARL198105-198410

main53504-90301×2iBJ4#,FJ4#,HJ47..GEN198008-198604

CHROME PLATED

5351

53715BPLATE, FENDER APRON SPLASH

main53715-90300iBJ4#198008-198102

53715CCLIP(FOR FENDER APRON SPLASH PLATE)

main90467-06004iBJ4#198008-198102

53749COVER, FENDER APRON STEERING GEAR BOX

main53751-90300iBJ42,45,46,FJ40,45..EUR198008-198410

53752COVER, SHOCK ABSORBER

main53752-90300×2iBJ42,45,46,FJ40,45..EUR198008-198410

53752ARETAINER, SHOCK ABSORBER COVER

main53761-90300iBJ42,45,46,FJ40,45..EUR198008-198410

RH

main53762-90300iBJ42,45,46,FJ40,45..EUR198008-198410

LH

53801FENDER SUB-ASSY, FRONT RH

main53810-90075iFJ4#..RHD;FJ40..TPC..EUR198310-198506

main53810-90076iBJ4#..RHD198008-198110

*GIS

main53810-90077iBJ4#..LHD..GEN198008-198110

*GIS

main53810-90078iHJ47..RHD198008-198310

*GIS

main53810-90079iHJ47..LHD198008-198310

*GIS

main53810-90080iFJ4#..LHD..GEN198008-198604

*GIS

main53810-90082iHJ47..RHD..GEN198008-198310

W/ELECTRIC WINCH

main53810-90083iHJ47..LHD198008-198310

W/ELECTRIC WINCH

main53810-90085iHJ47..RHD198008-198310

*GIS,W/ELECTRIC WINCH

main53810-90086iHJ47..LHD198310-198410

main53810-90335iFJ4#..RHD..GEN198008-198310

main53810-90336iHJ47..RHD..GEN198008-198310

main53810-90338iBJ4#..RHD..GEN198008-198110

main53810-90340iFJ4#..LHD..GEN198008-198604

main53810-90343iFJ40,45..EUR198008-198410

main53810-90345iHJ47..LHD198008-198310

main53810-90347iBJ4#..LHD..GEN198008-198110

main53810-90348iBJ42,45,46..EUR198008-198110

sub53810-90333

main53810-90804iBJ42,45,46..EUR198110-198410

main53810-90805iBJ4#..RHD198110-198410

main53810-90806iBJ4#..LHD..GEN198110-198410

main53810-90808iFJ40..LHD..VKC..4F;FJ43,45..LHD..TPC..4F;FJ45..LHD..(PIC,V)..GEN..CBU198401-198410

*SAA

53802FENDER SUB-ASSY, FRONT LH

main53820-90074iFJ4#..RHD..GEN198008-198310

main53820-90075iFJ40,45..ARL198008-198410

main53820-90077iBJ4#..RHD..GEN198008-198310

main53820-90079iFJ4#..LHD..GEN198008-198310

main53820-90082iFJ40,45..EUR198008-198410

main53820-90083iFJ4#..LHD..GEN198008-198310

*GIS

main53820-90086iBJ4#..LHD..GEN198008-198310

main53820-90087iBJ42,45,46..EUR198008-198310

main53820-90275iFJ4#..RHD..GEN198310-198404

main53820-90276iBJ4#..RHD198008-198310

*GIS

main53820-90277iBJ4#..LHD..GEN198008-198310

*GIS

main53820-90280iFJ4#..RHD..GEN198008-198310

W/ELECTRIC WINCH

main53820-90281iFJ4#..LHD..GEN198008-198310

W/ELECTRIC WINCH

main53820-90283iBJ4#..RHD..GEN198008-198310

W/ELECTRIC WINCH

main53820-90284iBJ4#..LHD..GEN198008-198310

W/ELECTRIC WINCH

main53820-90285iFJ40,45..ARL198008-198410

W/ELECTRIC WINCH

main53820-90286iBJ42,45,46..EUR198008-198310

W/ELECTRIC WINCH

main53820-90287iFJ40,45..EUR198008-198410

W/ELECTRIC WINCH

main53820-90289iFJ4#..LHD..GEN198008-198310

*GIS,W/ELECTRIC WINCH

main53820-90410iBJ40,42,43,45..RHD198310-198410

main53820-90411iBJ40,42,43,45..LHD..GEN198310-198410

main53820-90412iFJ4#..RHD..GEN198310-198404

W/ELECTRIC WINCH

main53820-90800iHJ47..RHD..GEN198008-198310

main53820-90801iHJ47..LHD198008-198310

main53820-90802iHJ47..RHD198310-198404

main53820-90803iHJ47..LHD198008-198310

*GIS

main53820-90806iFJ40..RHD..VKC..4F..WORB..GEN198008-198410

HONG KONG SPEC

main53820-90807iBJ42,45,46..EUR198008-198310

W/HEADLAMP CLEANER

main53820-90811iFJ4#..LHD..GEN198310-198604

main53820-90813iFJ4#..LHD..GEN198310-198604

W/ELECTRIC WINCH

main53820-90815iFJ4#..RHD..GEN198404-198410

main53820-90817iFJ4#..RHD..GEN198404-198410

W/ELECTRIC WINCH

main53820-90819iHJ47..RHD198404-198506

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-04006×6iBJ42,FJ40,45,HJ47..ARL198110-198410

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

53881BUMPER, FENDER TO HOOD

main53349-90300iBJ4#,FJ4#,HJ47198008-198604

9011906074

main90119-06074

9011908214

main90119-08214

9015900090

main90159-00090

9015960090

main90159-60090

9017906097

main90179-06097

9017906158

main90179-06158

9017906194

main90179-06194

9026903027

main90269-03027

9046704001

main90467-04001

9095001110

main90950-01110

9162140620

main91621-40620

9163140616

main91631-40616

9165640618

main91656-40618

9166140616

main91661-40616

9326066014

main93260-66014

9461210600

main94612-10600

9461310600

main94613-10600

40 parts on this diagram · 1 diagram in section
