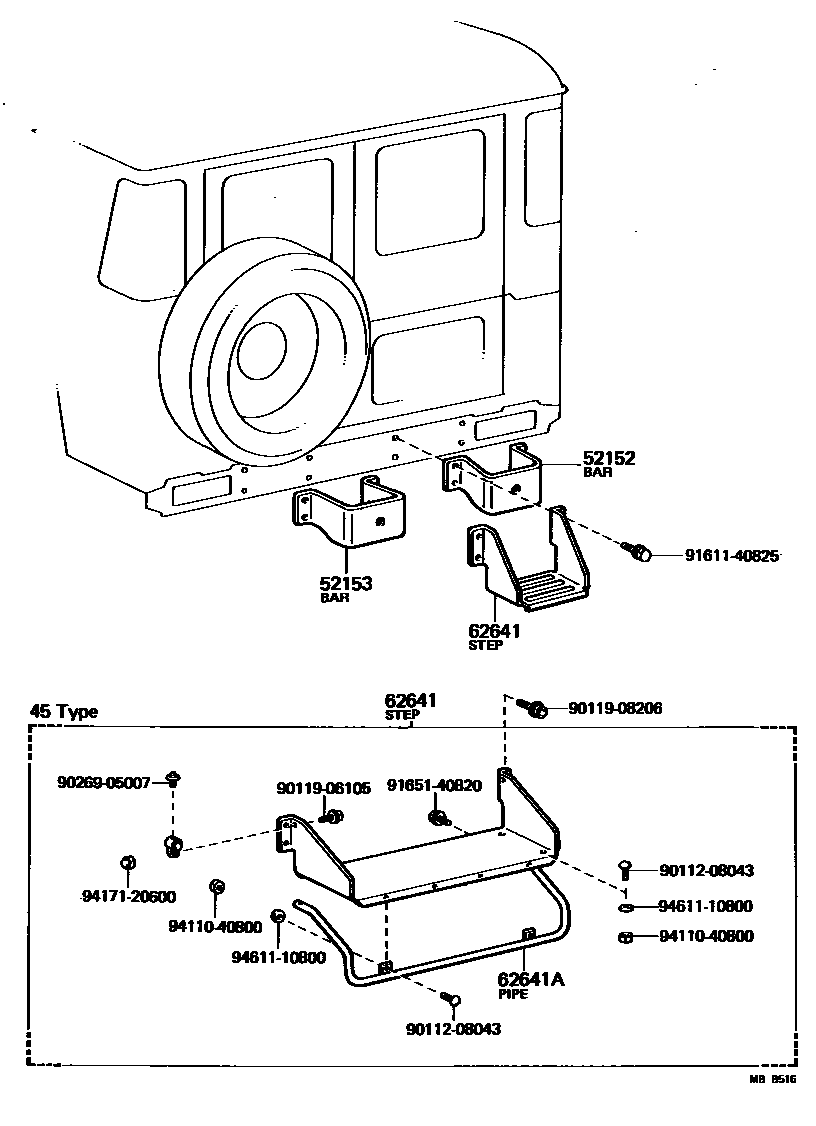

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52152BAR, REAR BUMPER, RH

main52152-60011iBJ40,42,43,46,FJ4#..TP,V¥3,560198008-198510

main52152-60040iBJ40,42,43,46,FJ4#..(TP,V)..GEN¥10,100198008-198510

CHROME PLATED

52153BAR, REAR BUMPER, LH

main52153-60011iBJ40,42,43,46,FJ4#..TP,V¥3,560198008-198510

main52153-60040iBJ40,42,43,46,FJ4#..(TP,V)..GEN¥10,500198008-198510

CHROME PLATED

62641STEP, REAR

main62640-90300iBJ45,FJ45,HJ47..VKC¥72,700198008-198510

main62640-90301iBJ45,FJ45,HJ47..VKC..(ARL,GEN)198008-198510

W/AUXILIARY FUEL TANK

main62641-90300iBJ40,42,43,46,FJ40,43¥7,500198008-198510

62641APIPE, REAR STEP

main62601-90300iBJ45,FJ45,HJ47..VKC198008-198510

main62601-90301iBJ45,FJ45,HJ47..VKC..(ARL,GEN)198008-198510

W/AUXILIARY FUEL TANK

9011208043

main90112-08043¥370

9011906105

main90119-06105¥250

9011908206

main90119-08206¥250

9026905007

main90269-05007¥250

9161140825

main91611-40825¥160

9165140820

main91651-40820¥90

9411040800

main94110-40800¥120

9417120600

main94171-20600¥230

9461110800

main94611-10800¥80

13 parts on this diagram · 2 diagrams in section
