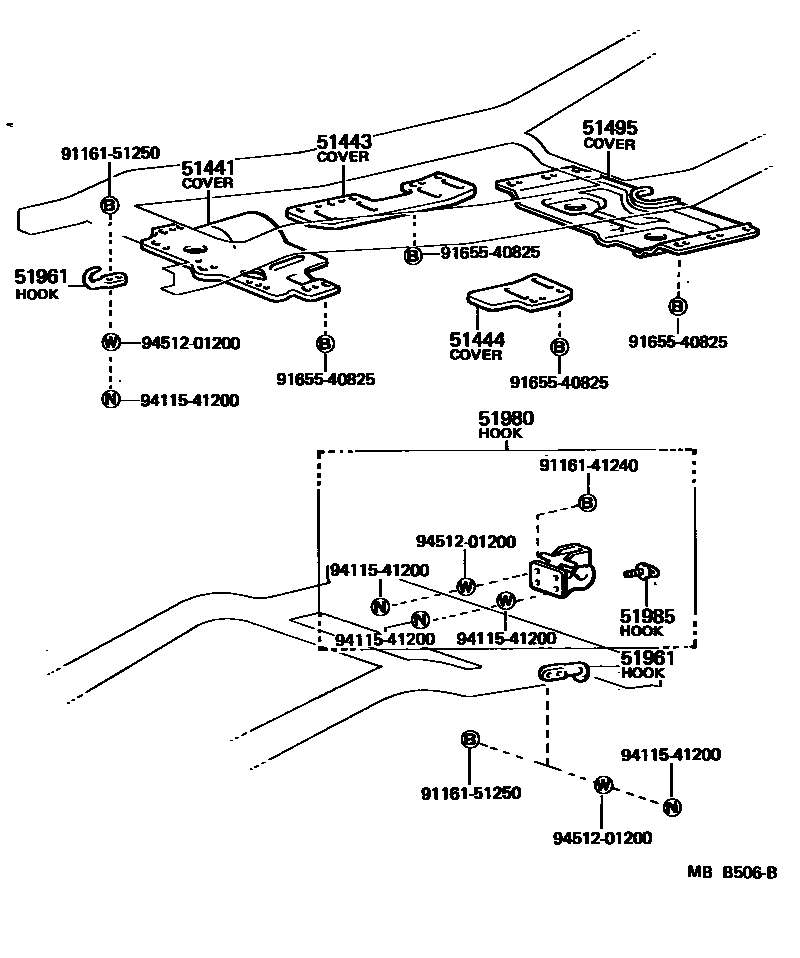

SUSPENSION CROSSMEMBER & UNDER COVER

51441COVER, ENGINE UNDER, NO.1

main51441-60013iFJ4#198008-198604

main51441-60030iHJ47198008-198506

main51441-60040iBJ4#198008-198410

main51441-60050iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

W/AIRCON

51443COVER, ENGINE UNDER, REAR RH

main51453-60012iFJ4#,HJ47198008-198604

main51453-60021iBJ4#198008-198410

51444COVER, ENGINE UNDER, REAR LH

main51454-60013iFJ4#198008-198604

main51454-60020iHJ47..RHD198008-198506

main51454-60031iBJ4#198008-198410

51495COVER, TRANSMISSION UNDER

main51495-60013iFJ4#..3F198008-198210

main51495-60032iBJ46;BJ40,42,43,45,FJ4#..4F198008-198604

main51495-60042iHJ47198008-198506

main51495-60100iBJ42,46,FJ40,43..5F198210-198410

51961HOOK, NO.1

main51961-60010iBJ4#,FJ4#,HJ47198008-198604

51980HOOK ASSY, PINTLE

main51980-69015iBJ4#,FJ4#,HJ47..TP,V198008-198604

sub51980-69016

51985HOOK, EYELET PINTLE

main51985-60011iBJ4#,FJ4#,HJ47..TP,V198008-198604

9116141240

main91161-41240

9116151250

main91161-51250

9165540825

main91655-40825

9411541200

main94115-41200

9451201200

main94512-01200

12 parts on this diagram · 1 diagram in section
