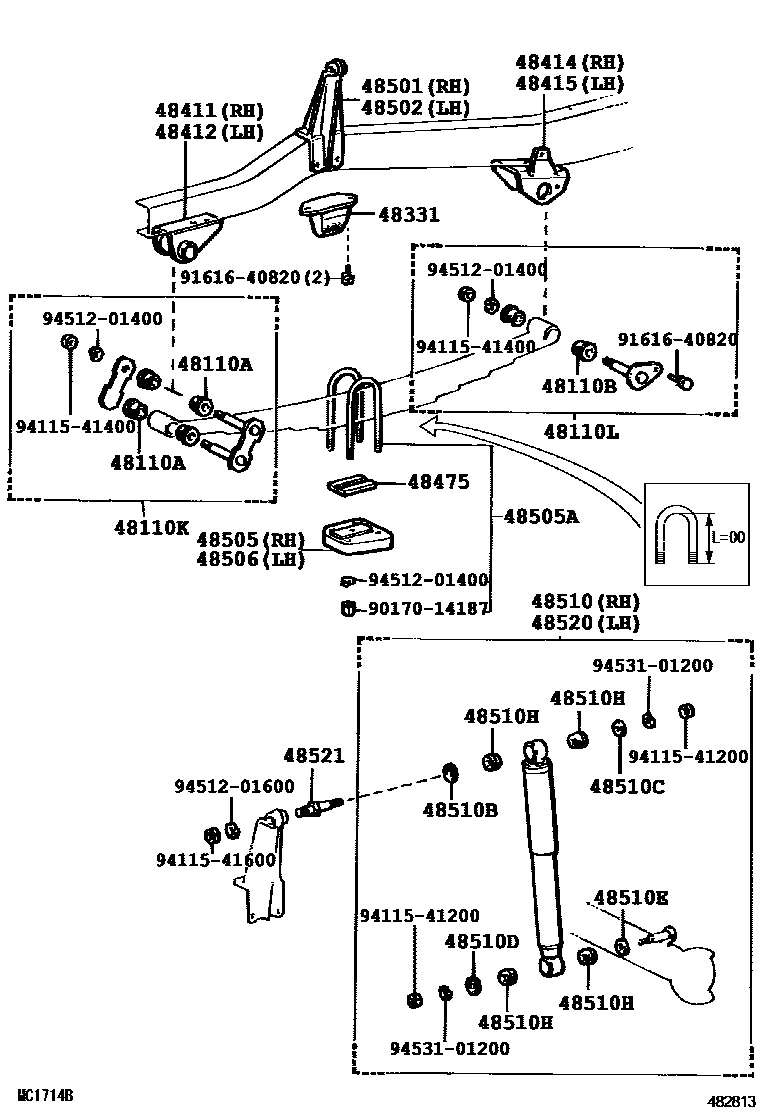

FRONT SPRING & SHOCK ABSORBER
48110SPRING ASSY, FRONT, RH
7-LEAF
ANTI BOTTOMING
48110ABUSH(FOR FRONT SPRING SHACKLE)
48110BBUSH(FOR FRONT SPRING PIN)
48110KSHACKLE KIT, FRONT SPRING
48110LPIN KIT, FRONT SPRING
48331BUMPER, FRONT SPRING, NO.1
LH
RH
48411BRACKET, FRONT SPRING(FOR FRONT RH)
48412BRACKET, FRONT SPRING(FOR FRONT LH)
48414BRACKET, FRONT SPRING(FOR REAR RH)
48415BRACKET, FRONT SPRING(FOR REAR LH)
48475PLATE, DISTANCE(FOR FRONT)
48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48505SEAT, FRONT SPRING, RH
48505ABOLT, U(FOR FRONT SPRING)
L=185,D=14,RH OUTER,LH,W/*DIP
48506SEAT, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48511-69037
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510HBUSH(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48511-69037
48521PIN, FRONT SHOCK ABSORBER UPPER PIVOT
9017014187
main90170-14187
9161640820
main91616-40820
9411541200
main94115-41200
9411541400
main94115-41400
9411541600
main94115-41600
9451201400
main94512-01400
9451201600
main94512-01600
9453101200
main94531-01200
32 parts on this diagram · 2 diagrams in section
