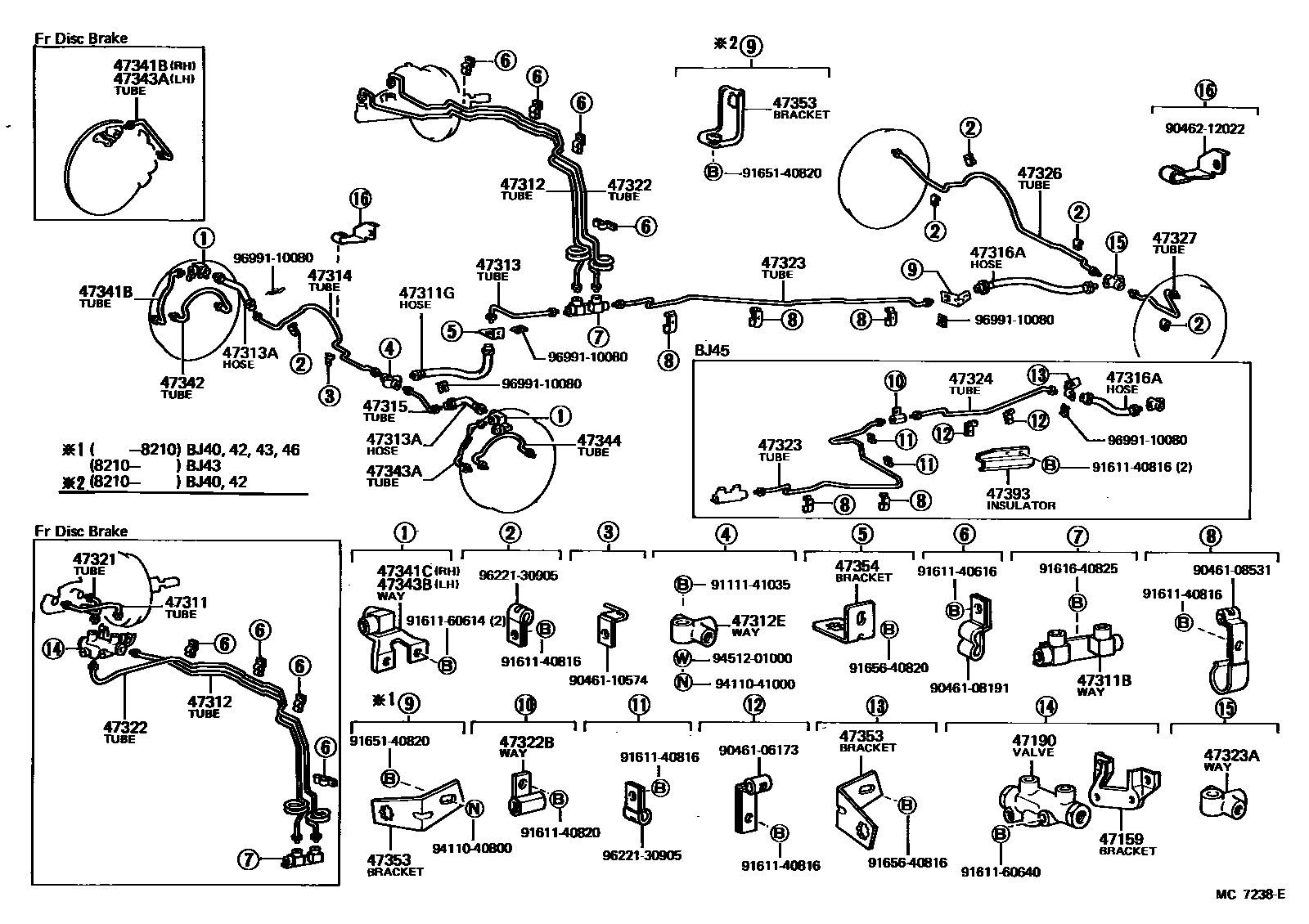

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0010 1 0011 1 0012 1 0013 1

47159BRACKET, PROPORTIONING VALVE

main47159-30100iBJ42..ARL198008-198410

main47159-30110iFJ40;BJ40,42,43,46,FJ43..EUR,GEN198008-198510

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12030iFJ40..ARL198304-198410

main47190-14020iBJ40,42,43,46,FJ40,43..EUR,GEN198008-198510

main47190-30030iBJ42..ARL198008-198304

main47190-30100iBJ42..ARL198304-198410

47311TUBE, FRONT BRAKE, NO.1

main47311-30320iFJ40;BJ40,42,43,46,FJ43..EUR,GEN198008-198510

FR DISC BRAKE

main47311-30330iBJ42..ARL198008-198110

FR DISC BRAKE

main47311-60430iBJ42..ARL198110-198410

FR DISC BRAKE

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10015iBJ40,42,43,46..LHD198008-198410

main90413-10119iBJ45..EUR198010-198012

main90413-10121iBJ45..EUR198012-198102

main90413-10121iBJ42,45,46..EUR198102-198410

W/LSPV

main90414-10009iFJ45..ARL,GEN198008-198604

main90415-10003iFJ45,HJ47..ARL198102-198506

W/LSPV

main90415-10003iFJ45..EUR198010-198102

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-32605iFJ4#,HJ47198008-198604

main96940-34305iBJ4#198008-198410

47312TUBE, FRONT BRAKE, NO.2

main47312-60320iBJ45..EUR198010-198210

FR DRUM BRAKE

main47312-60330iFJ40,45..EUR198102-198410

W/LSPV

main47312-60340iBJ42,46..EUR198102-198410

W/LSPV

main47312-60350iFJ43..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198008-198510

FR DISC BRAKE

main47312-60360iFJ40,43..RHD;FJ40..TPC..5F198008-198410

FR DISC BRAKE

main47312-60370iBJ40,42,43,45..RHD..GEN198008-198410

FR DRUM BRAKE

main47312-60380iFJ45,HJ47..ARL198210-198506

W/LSPV

main47312-60390iBJ40,42,43,46..RHD..GEN198008-198410

FR DISC BRAKE

main47312-60400iBJ42..ARL198008-198410

FR DISC BRAKE

main47312-60410iBJ42..EUR198008-198410

FR DISC BRAKE

main47312-60420iBJ40,42,43,46..LHD..GEN198008-198410

FR DISC BRAKE

main47312-60430iFJ4#,HJ47..RHD198008-198506

FR DRUM BRAKE

main47312-60450iFJ45..EUR198008-198210

main47312-60450iFJ4#,HJ47..LHD..GEN198008-198604

FR DRUM BRAKE

main47312-60460iBJ4#..LHD..GEN198008-198410

FR DRUM BRAKE

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10031iBJ4#198008-198410

main90413-10042iFJ4#,HJ47198008-198604

47313TUBE, FRONT BRAKE, NO.3

main47313-60120iBJ4#..RHD198008-198410

main47329-60051iBJ4#..LHD198008-198410

main47329-60070iFJ4#,HJ47198008-198604

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96910-32305iBJ4#,FJ4#,HJ47198008-198604

47314TUBE, FRONT BRAKE, NO.4

main47315-60280iFJ4#,HJ47198008-198604

main47315-60290iBJ4#198008-198410

47315TUBE, FRONT BRAKE, NO.5

main47316-60160iFJ4#,HJ47198008-198604

main47316-60170iBJ4#198008-198410

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-34305iBJ4#,FJ4#,HJ47198008-198604

47321TUBE, REAR BRAKE, NO.1

main47321-30050iBJ42..ARL198008-198410

main47321-60100iFJ40;BJ40,42,43,46,FJ43..EUR,GEN198008-198604

47322TUBE, REAR BRAKE, NO.2

main47322-60220iFJ40,45..EUR198102-198410

W/LSPV

main47322-60230iBJ42,45,46..EUR198102-198410

W/LSPV

main47322-60240iFJ45,HJ47..RHD198210-198506

W/LSPV

main47322-60250iFJ43..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198008-198510

FR DISC BRAKE

main47322-60260iFJ40,43..RHD;FJ40..TPC..5F198008-198410

FR DISC BRAKE

main47322-60270iBJ4#..RHD198008-198410

FR DRUM BRAKE

main47322-60290iBJ40,42,43,46..RHD..GEN198008-198410

FR DISC BRAKE

main47322-60300iBJ42..ARL198008-198410

main47322-60310iBJ42..EUR198008-198410

main47322-60320iBJ40,42,43,46..LHD..GEN198008-198410

FR DISC BRAKE

main47322-60330iFJ4#,HJ47..RHD198008-198506

FR DRUM BRAKE

main47322-60350iFJ4#,HJ47..LHD..GEN198008-198604

FR DRUM BRAKE

main47322-60360iBJ4#..LHD..GEN198008-198410

FR DRUM BRAKE

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10063iBJ45..GEN198008-198410

main90414-10010iBJ45..EUR198010-198410

47323TUBE, REAR BRAKE, NO.3

main47323-60050iFJ40198008-198510

main47323-60060iFJ43198008-198410

main47323-60070iFJ45,HJ47..ARL,GEN198008-198010

main47323-60071iFJ45,HJ47..GEN198010-198604

main47323-60080iFJ45..EUR198008-198010

main47323-60081iFJ45,HJ47..RHD..GEN198301-198506

W/LSPV

main47323-60081iFJ45..EUR198010-198410

main47323-60090iBJ40,42198008-198210

main47323-60091iBJ40,42198210-198410

main47323-60100iBJ43,46198008-198410

main47323-60110iBJ45198008-198010

main47323-60111iBJ45..GEN198010-198410

main47323-60120iBJ45..EUR198010-198410

main47323-60130iFJ40..EUR198102-198410

W/LSPV

main47323-60140iBJ42..EUR198102-198410

W/LSPV

main47323-60150iBJ46..EUR198102-198410

W/LSPV

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90413-10031iBJ40,42,43,46198008-198410

main90413-10086iBJ45,FJ4#,HJ47198008-198604

47324TUBE, REAR BRAKE, NO.4

main47324-60030iBJ45..GEN198008-198010

main47324-60031iBJ45..GEN198010-198410

main47324-60040iBJ45..EUR198008-198010

main47324-60041iBJ45..EUR198010-198410

47326TUBE, REAR BRAKE, NO.6

main47325-60020iBJ45,FJ4#,HJ47198008-198604

main47325-60040iBJ40,42,43,46198008-198410

47327TUBE, REAR BRAKE, NO.7

main47326-60020iBJ45,FJ4#,HJ47198008-198604

main47326-60040iBJ40,42,43,46198008-198410

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60020iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..(3F,4F)..(ARL,GEN)198008-198010

FR DRUM BRAKE

main47341-60021iBJ40,42,43,45,FJ4#,HJ47..GEN198010-198604

FR DRUM BRAKE

main47341-60030iBJ40,42,43,46,FJ40,43198008-198506

FR DISC BRAKE

sub47341-60031

main47341-60031iFJ45,HJ47..RHD..GEN198408-198604

FR DISC BRAKE

47341CWAY(FOR WHEEL CYLINDER FRONT RH TUBE)

main90412-10071iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..(3F,4F)..(ARL,GEN)198008-198010

main47342-60011iBJ40,42,43,45,FJ4#,HJ47..GEN198010-198604

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..(3F,4F)..(ARL,GEN)198008-198010

FR DRUM BRAKE

main47343-60011iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198010-198604

FR DRUM BRAKE

main47343-60020iFJ45,HJ47..RHD..GEN198008-198408

FR DISC BRAKE

sub47343-60021

main47343-60021iFJ45,HJ47..RHD..GEN198408-198604

FR DISC BRAKE

47343BWAY(FOR WHEEL CYLINDER FRONT LH TUBE)

main90412-10072iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..(3F,4F)..(ARL,GEN)198008-198010

main47342-60011iBJ40,42,43,45,FJ4#,HJ47..GEN198010-198604

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47351-60080iFJ40,43198008-198510

main47351-60091iBJ40,42,43,46198008-198410

main47355-60010iBJ45,FJ45,HJ47198008-198604

main47355-60040iBJ40,42198210-198410

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-60010iBJ4#198008-198410

main47354-60020iFJ4#,HJ47198008-198604

47393INSULATOR, BRAKE TUBE HEAT

main47393-60010iBJ45198008-198010

main47393-60011iBJ45198010-198410

9046106173

main90461-06173

9046108191

main90461-08191

9046108531

main90461-08531

9046110574

main90461-10574

9046212022

main90462-12022

9111141035

main91111-41035

9161140616

main91611-40616

9161140816

main91611-40816

9161140820

main91611-40820

9161160614

main91611-60614

9161160640

main91611-60640

9161640825

main91616-40825

9165140820

main91651-40820

9165640816

main91656-40816

9165640820

main91656-40820

9411040800

main94110-40800

9411041000

main94110-41000

9451201000

main94512-01000

9622130905

main96221-30905

9699110080

main96991-10080

49 parts on this diagram · 10 diagrams in section
