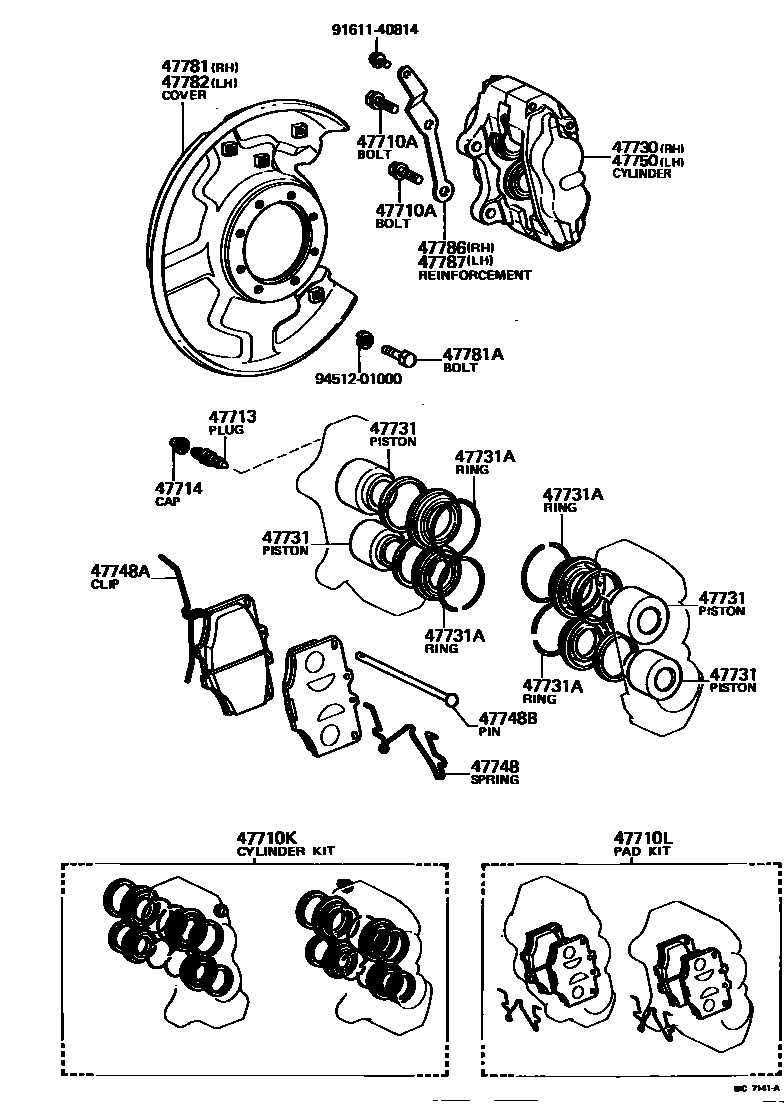

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0004 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12060iBJ40,42,43,46,FJ40,43198008-198604

*12-1.25PX38-23

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-30030iBJ40,42,43,46,FJ40,43198008-198604

sub04479-30031

47710LPAD KIT, DISC BRAKE, FRONT

main04491-60010iBJ40,42,43,46,FJ40,43198008-198604

sub04465-35170

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iBJ40,42,43,46,FJ40,43198008-198604

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBJ40,42,43,46,FJ40,43198008-198604

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60021iBJ40,42,43,46,FJ40,43198008-198604

47731PISTON, FRONT DISC BRAKE

main47731-30020iFJ45,HJ47..RHD..GEN198008-198604

OD=42.82

main47732-30010iFJ45,HJ47..RHD..GEN198008-198604

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iBJ40,42,43,46,FJ40,43198008-198604

PISTON OD=33.93

main90522-48044iBJ40,42,43,46,FJ40,43198008-198604

PISTON OD=42.82

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60010iFJ45,HJ47..RHD..GEN198008-198604

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12003iBJ40,42,43,46,FJ40,43198008-198604

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158iBJ40,42,43,46,FJ40,43198008-198604

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60021iFJ45,HJ47..RHD..GEN198008-198604

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-60020iBJ40,42,43,46,FJ40,43198008-198510

main47703-60031iBJ45,FJ45,HJ47..ARL,EUR198210-198506

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10439iBJ40,42,43,46,FJ40,43198008-198604

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-60020iBJ40,42,43,46,FJ40,43198008-198510

main47704-60031iFJ45,HJ47..RHD..GEN198210-198506

47786REINFORCEMENT, DUST COVER, RH

main47786-60020iBJ40,42,43,46,FJ40,43198008-198604

47787REINFORCEMENT, DUST COVER, LH

main47787-60020iBJ40,42,43,46,FJ40,43198008-198604

9161140814

main91611-40814

9451201000

main94512-01000

19 parts on this diagram · 2 diagrams in section
