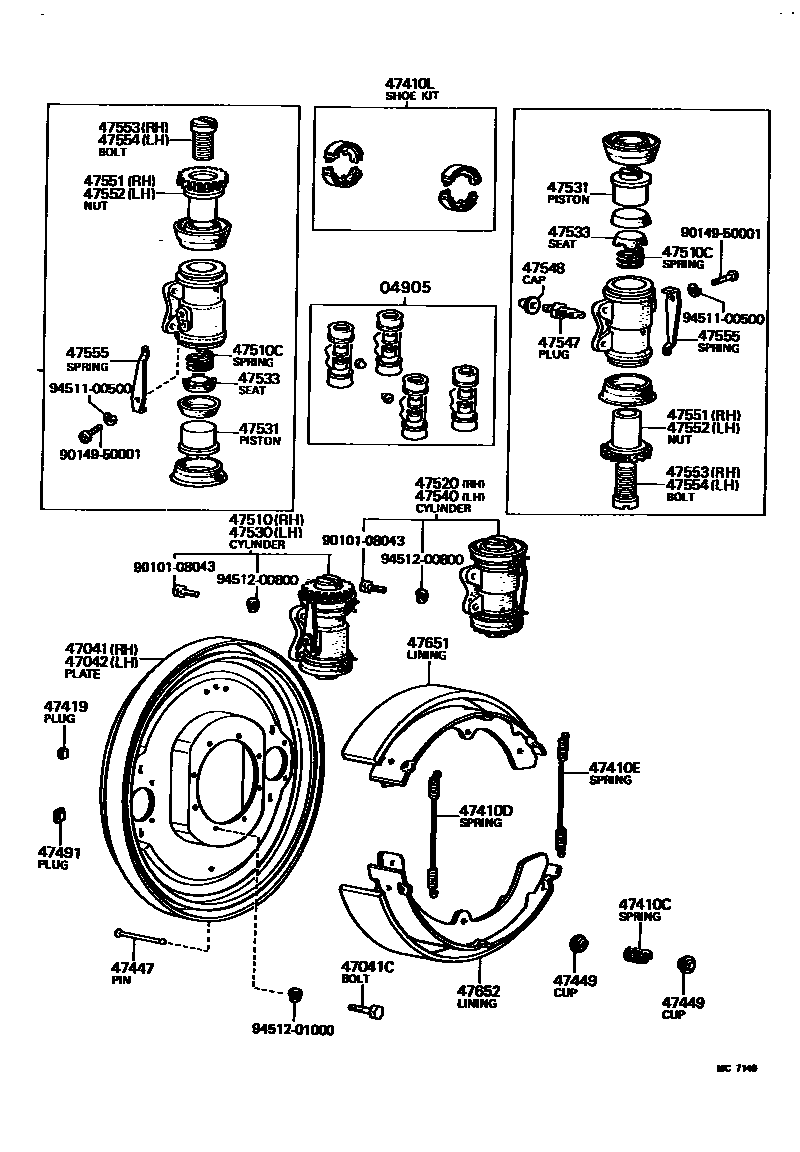

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-35042iBJ45,FJ45,HJ47198008-198604

main04905-36030iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198510

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-60040iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198210

sub47041-60050

sub91651-60614

main47041-60050iBJ40,42,43,45,FJ4#,HJ47..GEN198210-198604

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90101-10439iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

*14-1.25PX28-20

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47041-60040iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198210

sub47041-60050

sub91651-60614

main47042-60010iBJ40,42,43,45,FJ4#,HJ47..GEN198210-198604

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-23002iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26372iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26372iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47410LSHOE KIT, FRONT BRAKE

main04494-60020iBJ40,42,43,45,FJ4#,HJ47..GEN198008-198604

sub04494-60021

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47520-69015iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198604

ID=31.75

main47520-69025iBJ45,FJ45,HJ47..GEN198008-198604

ID=28.5

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iBJ45,FJ45,HJ47..GEN198008-198604

main90501-10759iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198510

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-69055iBJ40,42,43,FJ40,43..GEN198008-198510

ID=31.75

main47510-69065iBJ45,FJ45,HJ47..GEN198008-198604

ID=28.5

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47540-69015iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198510

ID=31.75

main47540-69025iBJ45,FJ45,HJ47198008-198604

ID=28.5

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-35090iBJ45,FJ45,HJ47..GEN198008-198604

main47531-60010iBJ40,42,43,FJ40,43..GEN198008-198510

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-25010iBJ40,42,43,FJ40,43..GEN198008-198510

main47533-30011iBJ45,FJ45,HJ47..GEN198008-198604

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-69045iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198510

ID=31.75

main47530-69055iBJ45,FJ45,HJ47..GEN198008-198604

ID=28.5

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-36041iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-36041iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-60030iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-60030iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36020iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-60020iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-60020iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

9010108043

main90101-08043

9014950001

main90149-50001

9451100500

main94511-00500

9451200800

main94512-00800

9451201000

main94512-01000
