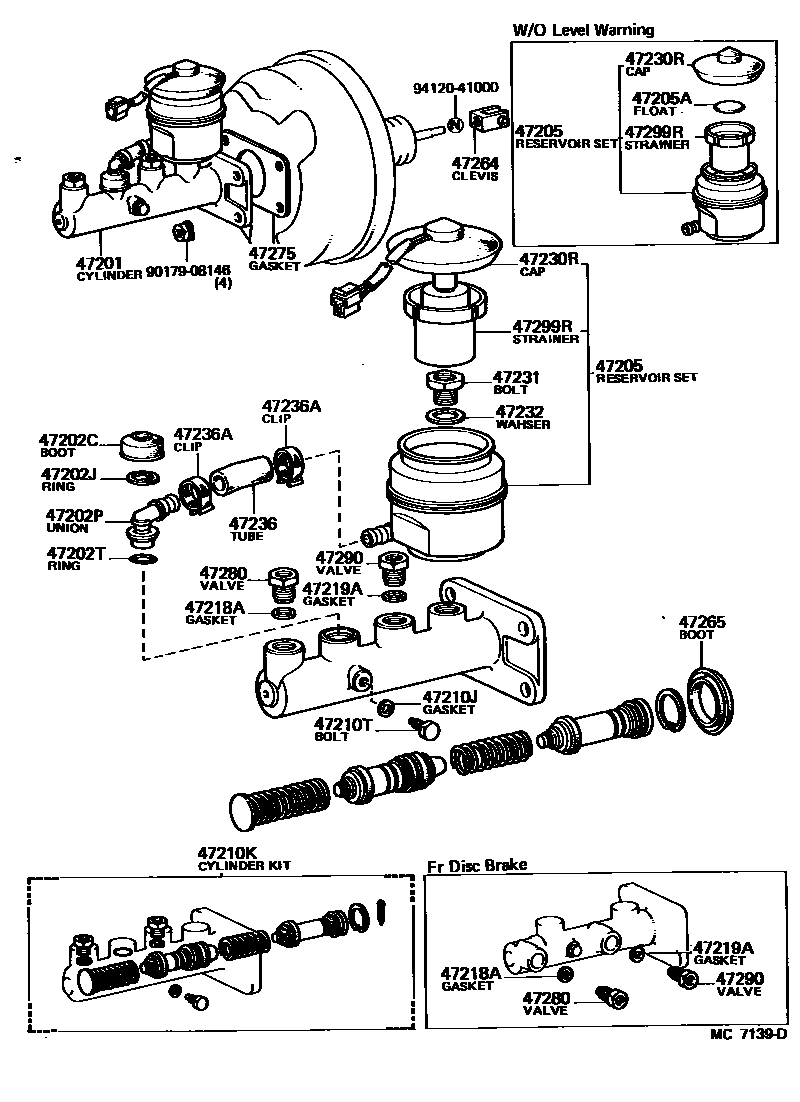

BRAKE MASTER CYLINDER

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60100iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198510

FR DRUM BRAKE,W/LEVEL WARNING

sub47207-60010

sub84460-20051

main47201-60110iBJ45,FJ45,HJ47198008-198210

W/LEVEL WARNING

sub47207-60020

sub84460-20051

main47201-60110iBJ45,FJ45,HJ47..GEN198210-198604

FR DRUM BRAKE,W/LEVEL WARNING

sub47207-60020

sub84460-20051

main47201-60120iBJ40,42,43,46,FJ40,43..3F,4F198008-198510

FR DISC BRAKE,W/LEVEL WARNING

sub47201-60210

main47201-60140iBJ40,42,43,46,FJ40,43..GEN198008-198510

FR DRUM BRAKE

sub47207-60010

sub31426-20010

sub47230-20030

main47201-60150iBJ45,FJ45,HJ47..GEN198008-198604

W/O LEVEL WARNING

sub47207-60020

sub31426-20010

sub47230-20030

main47201-60160iBJ40,42,43,46,FJ40,43..GEN198008-198510

FR DISC BRAKE

main47201-60190iBJ42..ARL198110-198410

FR DISC BRAKE

main47201-60200iFJ45,HJ47..RHD..GEN198301-198506

FR DISC BRAKE,W/LEVEL WARNING

main47201-60200iBJ45,FJ45,HJ47..ARL,EUR198210-198410

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iBJ4#,FJ4#,HJ47198008-198604

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iBJ4#,FJ4#,HJ47198008-198604

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iBJ4#,FJ4#,HJ47198008-198604

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iBJ4#,FJ4#,HJ47198008-198604

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-60030iBJ4#,FJ4#,HJ47198008-198604

W/LEVEL WARNING

main47202-60050iBJ4#,FJ4#,HJ47..GEN198008-198604

W/O LEVEL WARNING

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iBJ4#,FJ4#,HJ47..GEN198008-198604

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ4#,FJ4#,HJ47198008-198604

47210KCYLINDER KIT, BRAKE MASTER

main04493-60050iBJ40,42,43,46,FJ40,43..ARL,GEN198008-198510

FR DRUM BRAKE

main04493-60060iBJ45,FJ45,HJ47..GEN198210-198604

FR DRUM BRAKE

main04493-60060iBJ45,FJ45,HJ47198008-198210

main04493-60070iBJ40,42,43,46,FJ40,43198008-198510

FR DISC BRAKE

main04493-60080iBJ45,FJ45,HJ47..ARL,EUR198210-198410

main04493-60080iFJ45,HJ47..RHD..GEN198301-198604

FR DISC BRAKE

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBJ4#,FJ4#,HJ47198008-198604

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iBJ4#,FJ4#,HJ47198008-198604

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iBJ4#,FJ4#,HJ47198008-198604

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iBJ4#,FJ4#,HJ47..GEN198008-198604

W/O LEVEL WARNING

main84460-20051iBJ4#,FJ4#,HJ47198008-198604

W/LEVEL WARNING

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iBJ4#,FJ4#,HJ47198008-198604

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iBJ4#,FJ4#,HJ47198008-198604

47236TUBE, RESERVOIR BRAKE

main47234-14010iBJ40,42,43,46,FJ40,43198008-198604

FR DISC BRAKE

main47234-60020iBJ40,42,43,45,FJ4#,HJ47..GEN198008-198604

FR DRUM BRAKE

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iBJ4#,FJ4#,HJ47198008-198604

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBJ4#,FJ4#,HJ47198008-198604

47265BOOT, MASTER CYLINDER

main47265-20050iFJ45,HJ47..RHD..GEN198008-198604

FR DISC BRAKE

main47265-35030iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

FR DRUM BRAKE

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iBJ4#,FJ4#,HJ47198008-198604

main47275-24010iBJ45,FJ45,HJ47..ARL,EUR198210-198410

main47275-24010iFJ45,HJ47..RHD..GEN198301-198506

W/FR DISC BRAKE

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iBJ4#,FJ4#,HJ47198008-198604

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iBJ4#,FJ4#,HJ47198008-198604

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iBJ4#,FJ4#,HJ47198204-198604

main47299-20010iBJ4#,FJ4#,HJ47..3F,4F198008-198204

9017908146

main90179-08146

9412041000

main94120-41000

25 parts on this diagram · 1 diagram in section
