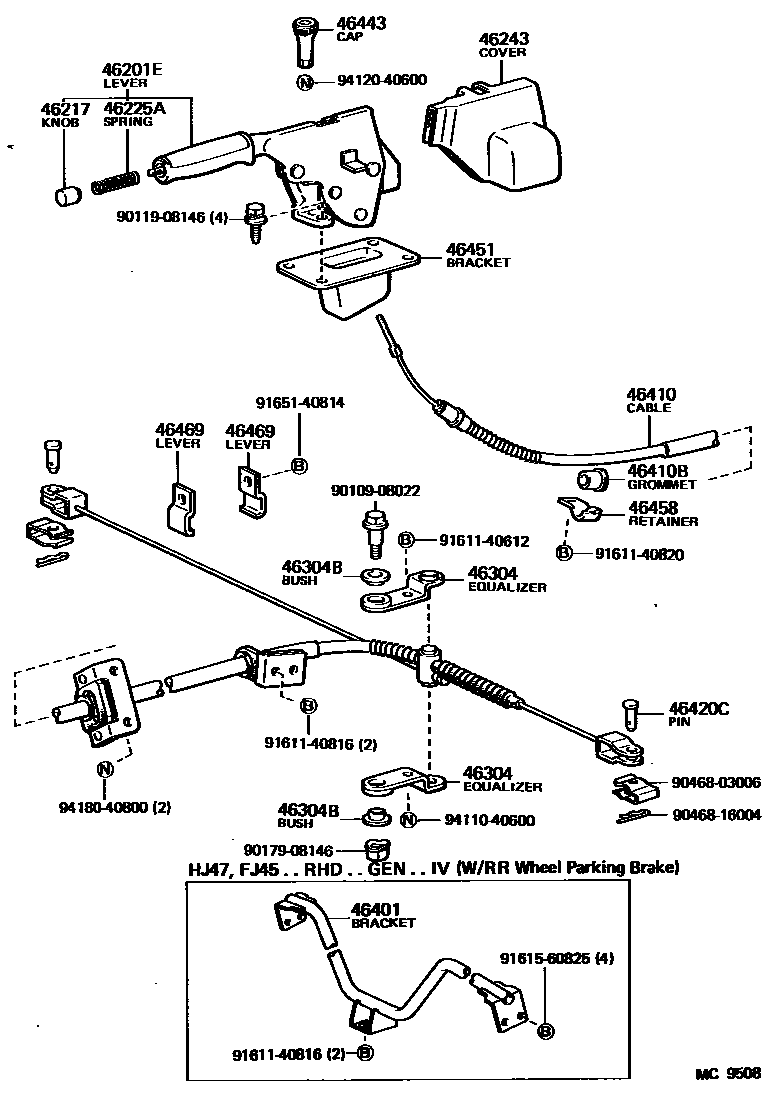

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-60021iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

main46210-60031iBJ4#,FJ4#,HJ47..RHD198008-198506

main46210-60031iBJ40..RHD..(TPC,VKC)198210-198410

INDONESIA SPEC

main46210-60050iFJ40..TPC..EUR;BJ40,42,43,FJ40,43..RHD198210-198410

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020iBJ4#,FJ4#,HJ47198008-198604

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iBJ4#,FJ4#,HJ47198008-198604

46243COVER, PARKING BRAKE LEVER

main46243-60010iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

main46243-60020iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-31010iFJ45,HJ47..RHD..GEN..IV198008-198510

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iFJ45,HJ47..RHD..GEN..IV198008-198510

46401BRACKET SUB-ASSY, CABLE SUPPORT

main46401-60010iFJ45,HJ47..RHD..GEN..IV198210-198506

W/REAR WHEEL PARKING BRAKE

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60014iBJ45,FJ45,HJ47..RHD198008-198506

main46410-60025iFJ40..LHD..(TPC,VLS)..4F..WORB..GEN198008-198510

VENEZUELA SPEC

main46410-60025iBJ45,FJ45,HJ47..LHD198008-198604

main46410-60120iBJ40,42,FJ40..RHD198008-198210

FULL FLOATING AXLE

main46410-60121iFJ40..TPC..EUR;BJ40,42,FJ40..RHD198210-198410

FULL FLOATING AXLE

main46410-60130iBJ40,42,FJ40..LHD198008-198210

main46410-60131iBJ40,42..LHD;FJ40..LHD..GEN;FJ40..VKC..EUR198210-198410

main46410-60140iBJ43,46,FJ43..RHD198008-198210

FULL FLOATING AXLE

main46410-60141iBJ43,FJ43..RHD198210-198410

FULL FLOATING AXLE

main46410-60150iBJ43,46,FJ43..LHD198008-198210

main46410-60151iBJ43,46,FJ43..LHD198210-198410

main46410-60160iBJ40,42,FJ40..RHD..GEN198008-198210

SEMI FLOATING AXLE

main46410-60161iBJ40,42,FJ40..RHD..GEN198210-198410

SEMI FLOATING AXLE

main46410-60170iBJ43,46,FJ43..RHD198008-198210

SEMI FLOATING AXLE

main46410-60171iBJ43,FJ43..RHD198210-198410

SEMI FLOATING AXLE

main46410-60190iFJ45,HJ47..RHD..GEN..IV198210-198506

W/REAR WHEEL PARKING BRAKE

main46410-60200iBJ40..RHD..(TPC,VKC)198210-198410

INDONESIA SPEC

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iBJ40,42,43,46,FJ40,43198008-198510

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08042iFJ45,HJ47..RHD..GEN..IV198008-198510

46443CAP, CABLE ADJUSTING

main46443-12020iBJ4#,FJ4#,HJ47198008-198604

46451BRACKET, CABLE SUPPORT

main46410-60011iFJ45..LHD..GEN..IV;FJ45..LHD..VKC..GEN;FJ40..LHD..(TPC,VLS)..GEN198210-198604

VENEZUELA SPEC

main46451-60011iBJ4#,FJ4#,HJ47..LHD198008-198210

main46451-60012iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198210-198410

main46451-60021iBJ4#,FJ4#,HJ47..RHD198008-198506

main46451-60021iBJ40..RHD..(TPC,VKC)198210-198410

VENEZUELA SPEC

main46451-60050iFJ40..TPC..EUR;BJ40,42,43,FJ40,43..RHD198210-198410

46458RETAINER, CABLE

main46458-30020iFJ45,HJ47..RHD..GEN..IV198210-198506

W/REAR WHEEL PARKING BRAKE

main46458-30020iBJ40,42,43,46,FJ40,43198008-198510

46469LEVER, CABLE GUIDE SUPPORT

main46469-60020iFJ45,HJ47..RHD..GEN..IV198210-198506

W/REAR WHEEL PARKING BRAKE

main46469-60020iBJ40,42,43,46,FJ40,43198008-198510

9010908022

main90109-08022

9011908146

main90119-08146

9017908146

main90179-08146

9046803006

main90468-03006

9046816004

main90468-16004

9161140612

main91611-40612

9161140816

main91611-40816

9161140820

main91611-40820

9161560825

main91615-60825

9165140814

main91651-40814

9411040600

main94110-40600

9412040600

main94120-40600

9418040800

main94180-40800

27 parts on this diagram · 3 diagrams in section
