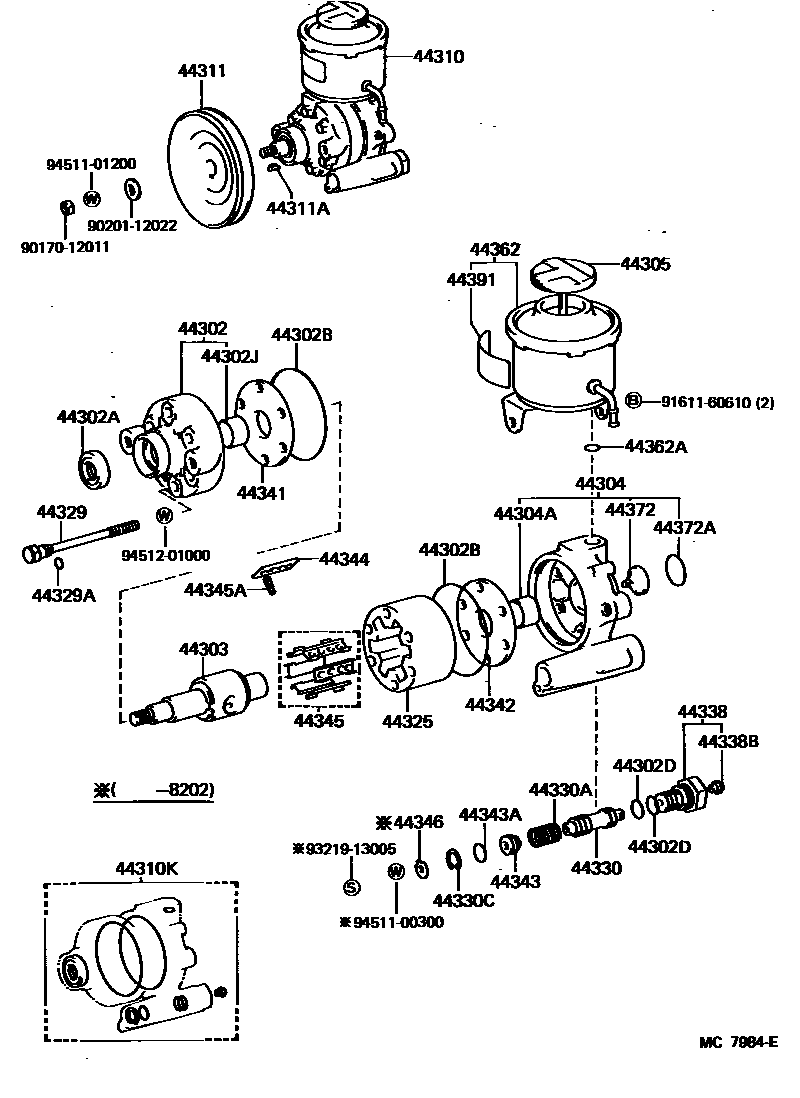

VANE PUMP & RESERVOIR (POWER STEERING)

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-30020iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198008-198604

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90310-21034iBJ42..ARL198008-198604

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-69170iBJ42..ARL198008-198604

44302DRING, O, NO.3(FOR VANE PUMP HOUSING)

main96710-01014iFJ4#..3F,4F198008-198112

sub96711-19014

main96711-19014iBJ42..ARL198112-198604

44302JBUSH(FOR VANE PUMP HOUSING)

main90384-22110iBJ42..ARL198008-198604

44303SHAFT SUB-ASSY, W/ROTOR

main44303-22011iBJ42..ARL198008-198604

L=39.9750-39.9775

main44303-22021iBJ42..ARL198008-198604

L=39.9725-39.9750

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-30022iBJ42..ARL198008-198604

44304ABUSH, BIMETAL FORMED(FOR PUMP HOUSING REAR)

main90384-22109iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198008-198604

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iFJ4#198008-198604

sub44305-22040

main44305-60010iBJ42..ARL198110-198410

44310PUMP ASSY, VANE

main44320-60030iFJ4#..3F,4F198008-198108

sub44320-60061

main44320-60031iFJ4#198108-198604

sub44320-60061

main44320-60040iFJ40..ARL198008-198108

NEW SOUTH WALES SPEC

main44320-60041iFJ40..ARL198108-198410

NEW SOUTH WALES SPEC

sub44320-60071

main44320-60080iBJ42..ARL198110-198410

44310KGASKET KIT, POWER STEERING PUMP

main04446-30010iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198008-198604

44311PULLEY, VANE PUMP

main44311-60010iFJ4#198008-198604

main44311-60040iBJ42..ARL198110-198410

44311AKEY, VANE PUMP PULLEY

main90280-05008iBJ42..ARL198008-198604

44325RING, FIXED(FOR VANE PUMP)

main44325-30030iBJ42..ARL198008-198604

MARK 1,MARK 1

main44325-30040iBJ42..ARL198008-198604

MARK 2,MARK 2

44329BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET

main44329-30010iBJ42..ARL198008-198604

L=76.5

main44329-30020iBJ42..ARL198008-198604

L=78.5

44329ARING, O(FOR VANE PUMP HOUSING SET BOLT)

main96710-01007iFJ4#..3F,4F198008-198112

sub96711-19007

main96711-19007iFJ4#198112-198604

44330VALVE ASSY, FLOW CONTROL

main44330-60010iBJ42..ARL198008-198604

MARK A

main44330-60020iBJ42..ARL198008-198604

MARK B

main44330-60030iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198008-198604

MARK C

main44330-60040iFJ4#198008-198604

MARK D

main44330-60050iFJ4#198008-198604

MARK E

main44330-60060iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198210-198410

MARKF

main44330-60060iBJ42..ARL198008-198604

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iBJ42..ARL198008-198604

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iBJ42..ARL198008-198604

44338UNION, PRESSURE PORT

main44308-60010iFJ4#198008-198604

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06030iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198008-198604

44341PLATE, VANE PUMP SIDE, FRONT

main44341-30020iBJ42..ARL198008-198604

44342PLATE, VANE PUMP SIDE, REAR

main44341-30020iFJ4#198008-198604

44343SEAT, FLOW CONTROL SPRING

main44343-12010iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198202-198604

main44343-30020iFJ4#..3F,4F198008-198202

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iBJ42..ARL198008-198112

sub96711-19014

main96711-19014iFJ4#198112-198604

44344SEAT, SPRING(FOR VANE PUMP)

main44344-30010iFJ4#198008-198604

44345SLIPPER, VANE PUMP

main44307-22010iFJ4#198008-198604

NO MARK,L=39.942-39.937

main44307-22020iFJ4#198008-198604

NO MARK,L=39.937-39.932

44345ASPRING, COMPRESSION(FOR VANE PUMP SLIPPER)

main90501-06445iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198008-198604

44346PLATE, SNAP RING LOCK

main44346-30020iBJ42..ARL198008-198202

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-60030iFJ4#..3F,4F198008-198108

main44306-60031iFJ4#198108-198604

main44306-60040iFJ40..ARL198008-198108

NEW SOUTH WALES SPEC

main44306-60041iFJ40..ARL198108-198410

NEW SOUTH WALES SPEC

main44306-60060iBJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)198110-198410

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iFJ4#..3F,4F198008-198112

sub96711-19013

main96711-19013iBJ42..ARL198112-198604

44372PLUG, POWER STEERING PUMP TIGHT

main44372-22010iBJ42..ARL198008-198604

44372ARING, O(FOR POWER STEERING PUMP TIGHT PLUG)

main90301-25135iBJ42..ARL198008-198604

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30010iFJ4#..3F,4F198008-198108

main44391-30020iBJ42..ARL198108-198604

9017012011

main90170-12011

9020112022

main90201-12022

9161160610

main91611-60610

9321913005

main93219-13005

9451100300

main94511-00300

9451101200

main94511-01200

9451201000

main94512-01000

41 parts on this diagram · 1 diagram in section
