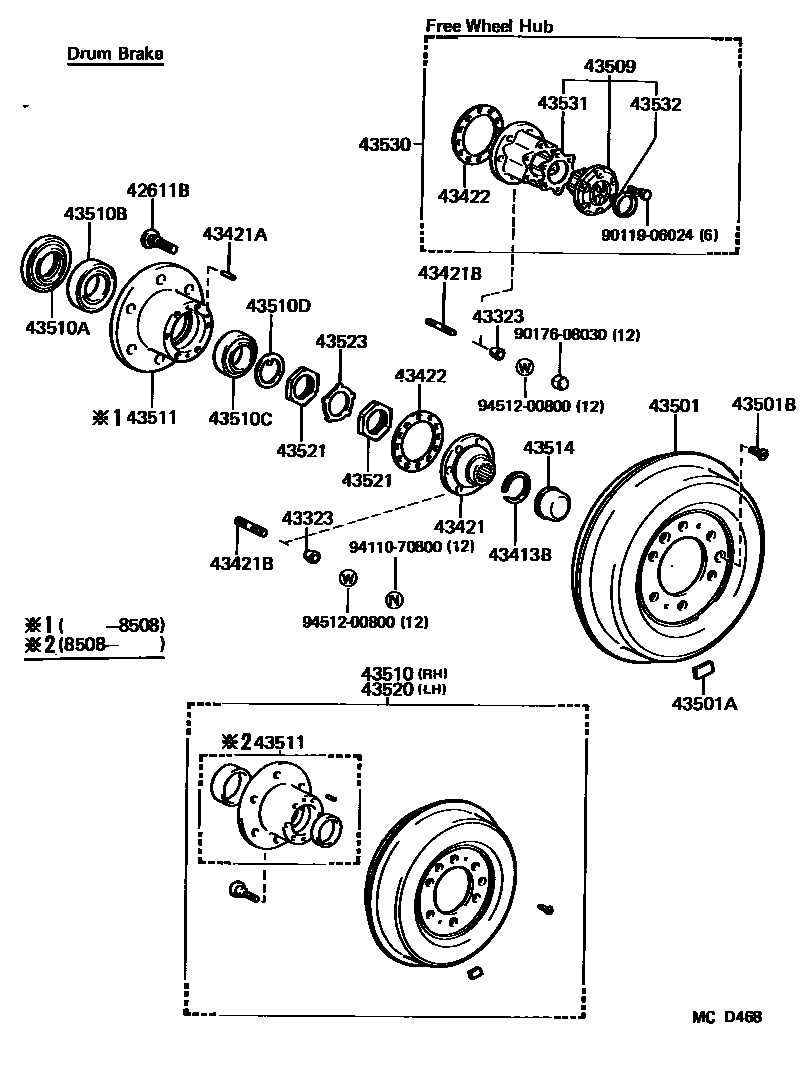

FRONT AXLE HUB

0001 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02034iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198411

FR DRUM BRAKE

sub90942-02052

main90942-02044iBJ40,42,43,46,FJ40,43198008-198411

FR DISC BRAKE

sub90942-02053

main90942-02052iFJ4#,HJ47198411-198604

FR DRUM BRAKE

main90942-02053iFJ40198411-198510

FR DISC BRAKE

43323WASHER, CONE (FOR FRONT AXLE SHAFT)

main42323-60010iBJ4#,FJ4#,HJ47198008-198604

43413BRING, DRIVE SHAFT SNAP

main90520-31001iBJ4#,FJ4#,HJ47198008-198604

sub90520-31007

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-60013iBJ4#,FJ4#,HJ47198008-198604

43421APIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90250-07057iBJ4#,FJ4#,HJ47198008-198604

43421BBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90116-08325iBJ4#,FJ4#,HJ47198008-198604

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60010iBJ4#,FJ4#,HJ47198008-198604

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-60030iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

sub43512-60070

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

10G,10G

main90937-01118iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

20G,20G

main90937-01119iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

30G,30G

main90937-01120iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

40G,40G

main90937-01121iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

50G,50G

main90937-01122iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

60G,60G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10003iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

43509COVER SUB-ASSY, FREE WHEEL HUB

main43509-60013iBJ4#,FJ4#,HJ47..3F,4F198008-198110

main43509-60015iBJ4#,FJ4#,HJ47198110-198604

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-60050iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

sub43510-60070

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001iBJ4#,FJ4#,HJ47198008-198604

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-49084iBJ4#,FJ4#,HJ47198008-198604

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-45087iBJ4#,FJ4#,HJ47198008-198604

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-42030iBJ4#,FJ4#,HJ47198008-198604

43511HUB, FRONT AXLE

main43502-60020iFJ45,HJ47..RHD..GEN198008-198604

FR DISC BRAKE

sub43502-39095

main43502-60030iFJ4#198508-198604

FR DRUM BRAKE

sub43502-69055

main43511-60012iBJ40,42,43,45,FJ4#,HJ47..GEN198008-198508

FR DRUM BRAKE

sub43502-60030

43514CAP, FRONT HUB GREASE

main43423-60011iBJ4#,FJ4#,HJ47198008-198604

sub43423-35010

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-60050iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

sub43510-60070

43521NUT, FRONT WHEEL ADJUSTING

main43521-60011iBJ4#,FJ4#,HJ47198008-198604

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main90215-42025iBJ4#,FJ4#,HJ47198008-198604

43530HUB ASSY, FREE WHEEL

main43530-69016iBJ4#,FJ4#,HJ47..3F,4F198008-198110

sub43530-69019

main43530-69017iBJ4#,FJ4#,HJ47198110-198604

sub43530-69055

43531GASKET, FREE WHEEL HUB

main43531-60010iBJ4#,FJ4#,HJ47198008-198604

43532RING, FREE WHEEL HUB

main43532-60010iBJ4#,FJ4#,HJ47198110-198604

9011906024

main90119-06024

9017608030

main90176-08030

9411070800

main94110-70800

9451200800

main94512-00800

28 parts on this diagram · 2 diagrams in section
