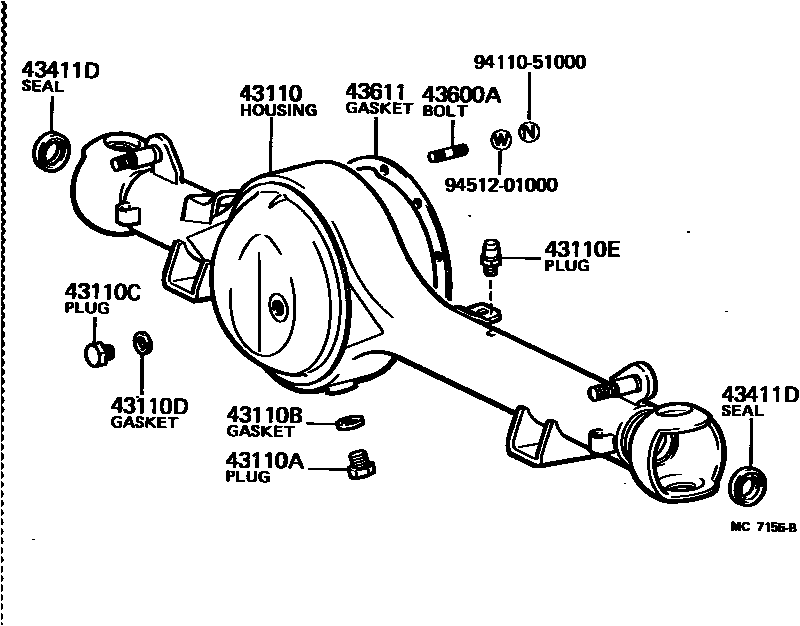

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

43110HOUSING ASSY, FRONT AXLE

main43110-60094iBJ4#198008-198410

main43110-60122iFJ4#,HJ47198008-198604

43110APLUG SUB-ASSY, DRAIN

main90341-18057iBJ4#,FJ4#,HJ47198008-198604

43110BGASKET, DRAIN

main12157-10010iBJ4#,FJ4#,HJ47198008-198604

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18049iBJ4#,FJ4#,HJ47198008-198604

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iBJ4#,FJ4#,HJ47198008-198604

43110EPLUG, BREATHER (FOR FRONT AXLE HOUSING)

main90930-03031iBJ4#,FJ4#,HJ47198008-198604

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90311-33085iBJ4#,FJ4#,HJ47198008-198604

43600CARRIER ASSY, FRONT AXLE

main41110-60016iBJ4#,FJ43,HJ47;FJ40,45..ARL,GEN198008-198408

*AXC=K082,*FGR=37:9

main41110-60017iBJ4#,FJ43,HJ47;FJ40,45..ARL,GEN198408-198411

*AXC=K082,*FGR=37:9

sub41110-60018

main41110-60018iFJ4#,HJ47198411-198604

*AXC=K082,*FGR=37:9

sub41110-60019

sub90949-01692

main41110-60026iFJ4#..EUR,GEN198008-198408

*AXC=K052,*FGR=37:10

main41110-60027iFJ4#..EUR,GEN198408-198411

*AXC=K052,*FGR=37:10

sub41110-60028

main41110-60028iFJ4#198411-198604

*AXC=K052,*FGR=37:10

sub41110-60029

sub90949-01692

43600ABOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)

main90116-10074iBJ4#,FJ4#,HJ47198212-198604

S=16 & 12.5,L=40.5,L=40.5,S=12.5 & 16

main90116-10075iBJ4#,FJ4#,HJ47198212-198604

S=18 & 12.5,L=53.5,L=53.5,S=12.5 & 18

main90116-10103iBJ4#,FJ4#,HJ47198008-198212

L=37,S=12 & 25,L=37,S=12 &16

main90116-10104iBJ4#,FJ4#,HJ47198008-198212

L=50,S=12 & 18,L=50,S=12 & 18

sub90116-10075

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-36010iBJ4#,FJ4#,HJ47198008-198604

sub42181-60060

9411051000

main94110-51000

9451201000

main94512-01000

12 parts on this diagram · 3 diagrams in section
