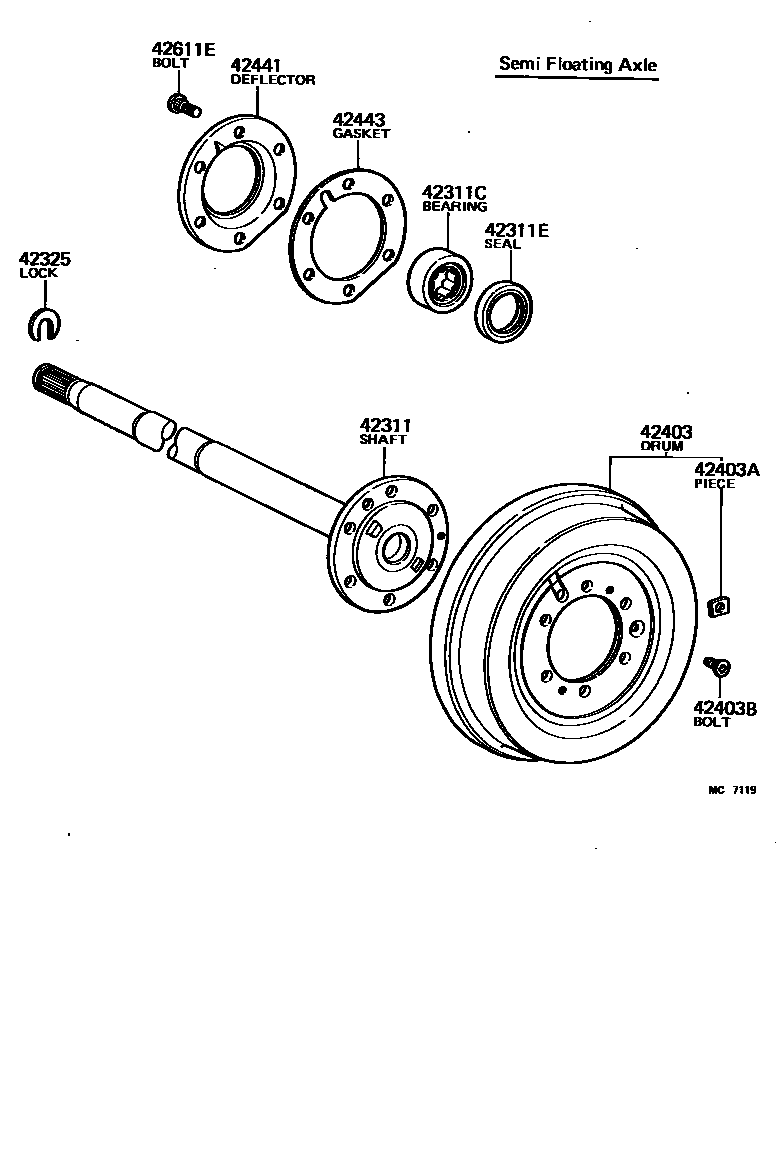

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-60052iBJ4#,FJ4#,HJ47198008

RH,FULL FLOATING AXLE

sub42311-60053

sub90310-36003

main42311-60060iBJ4#,FJ4#,HJ47..EUR,GEN198008

RH,SEMI FLOATING AXLE

sub42311-60061

main42312-60042iBJ4#,FJ4#,HJ47198008

LH,FULL FLOATING AXLE

sub42312-60043

sub90310-36003

main42312-60070iBJ4#,FJ4#,HJ47..EUR,GEN198008

LH,SEMI FLOATING AXLE

sub42312-60071

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001iBJ4#,FJ4#,HJ47198008-198604

FULL FLOATING AXLE

main90311-47001iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

SEMI FLOATING AXLE

42325LOCK, REAR AXLE SHAFT

main42325-55010iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

42403DRUM SUB-ASSY, REAR BRAKE

main42431-60020iBJ4#,FJ4#,HJ47198008-198604

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iBJ4#,FJ4#,HJ47198008-198604

10G,10G

main90937-01118iBJ4#,FJ4#,HJ47198008-198604

20G,20G

main90937-01119iBJ4#,FJ4#,HJ47198008-198604

30G,30G

main90937-01120iBJ4#,FJ4#,HJ47198008-198604

40G,40G

main90937-01121iBJ4#,FJ4#,HJ47198008-198604

50G,50G

main90937-01122iBJ4#,FJ4#,HJ47198008-198604

60G,60G

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10003iBJ4#,FJ4#,HJ47198008-198604

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02034iBJ4#,FJ4#,HJ47198008-198411

sub90942-02052

main90942-02052iFJ4#,HJ47198411-198604

10 parts on this diagram · 2 diagrams in section
