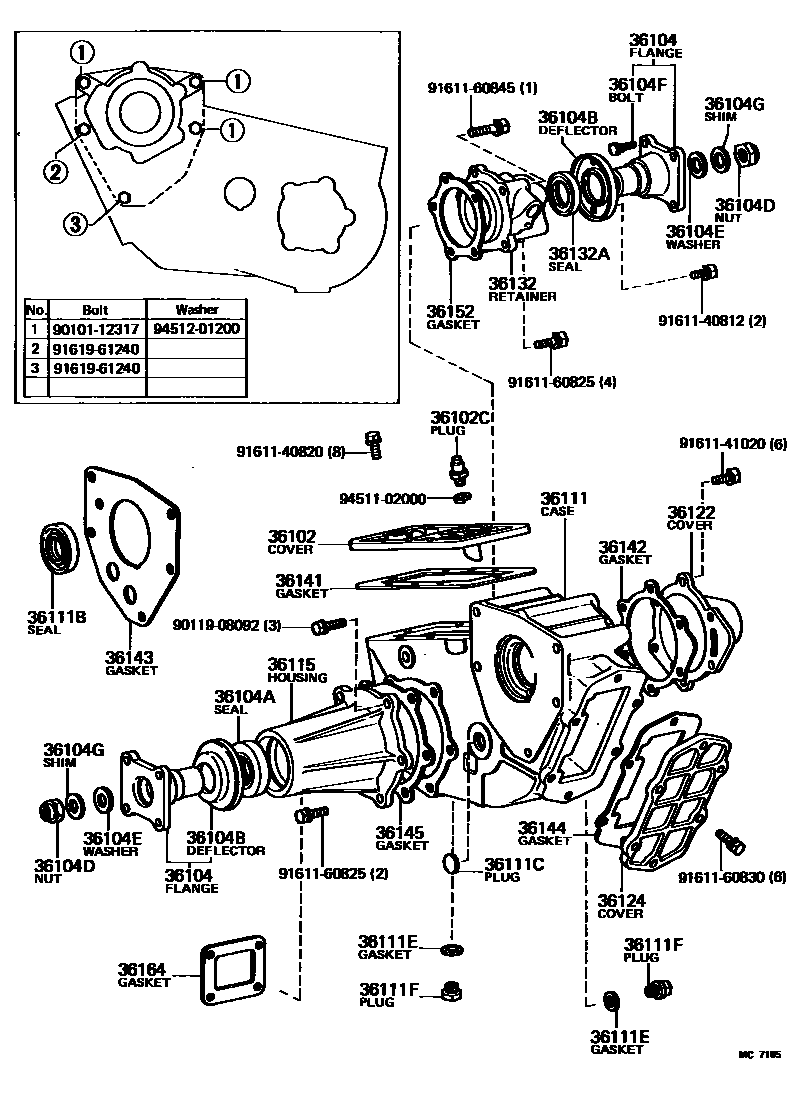

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

36102COVER SUB-ASSY, TRANSFER CASE

main36121-60021iFJ4#..3F198008-198210

36102CPLUG SUB-ASSY, BREATHER (FOR TRANSFER COVER)

main90930-03031iFJ4#..3F198008-198210

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-60010iHJ47198408-198506

FR DRIVE,W/*CVJ

main33309-60010iBJ4#,FJ4#,HJ47..4F,5F198008-198408

FR DRIVE

main33309-60020iBJ40,42,43,46,FJ40,43..4F,5F198008-198408

RR DRIVE

sub33309-60021

main33309-60030iFJ40,43..3F198008-198210

RR DRIVE

main33309-60040iFJ45,HJ47..RHD..GEN..IV198408-198506

FR DRIVE

sub33309-60041

main33309-60040iBJ40,42,43,46,FJ40,43198408-198410

RR DRIVE

sub33309-60041

main33309-60080iBJ4#,FJ4#,HJ47198408-198604

FR DRIVE

main41204-60010iFJ4#..3F198008-198210

FR DRIVE

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38134iFJ4#..3F198008-198210

sub90311-38047

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-60010iBJ4#,FJ4#,HJ47..4F,5F198008-198604

FR DRIVE

main33325-60020iBJ40,42,43,46,FJ40,43..4F,5F198008-198506

RR DRIVE

sub33325-60021

main33325-60030iFJ40,43..3F198008-198210

RR DRIVE

main37341-30010iFJ4#..3F198008-198210

FR DRIVE

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iFJ4#..3F198008-198210

main90179-22005iBJ4#,FJ4#,HJ47..4F,5F198008-198604

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20010iFJ4#..3F198008-198210

main90201-22005iBJ4#,FJ4#,HJ47..4F,5F198008-198604

36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-11124iBJ40,42,43,46,FJ40,43198008-198506

36104GSHIM (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90564-21143iFJ4#..3F198008-198210

36111CASE, TRANSFER

main36103-60010iBJ4#,FJ4#,HJ47..4F198008-198210

sub36103-60030

main36103-60011iBJ4#,FJ4#,HJ47198210-198511

main36103-60200iFJ45198511-198604

main36111-60060iFJ4#..3F198008-198210

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-42014iFJ4#..3F198008-198210

main90311-48002iBJ4#,FJ4#,HJ47..4F198008-198210

sub90311-48009

main90311-48007iBJ4#,FJ4#,HJ47198210-198604

36111CPLUG (FOR TRANSFER CASE)

main90331-16050iBJ4#,FJ4#,HJ47..4F,5F198008-198604

sub96411-11600

main96412-14000iFJ4#..3F198008-198210

36111EGASKET (FOR TRANSFER CASE)

main12157-10010iBJ4#,FJ4#,HJ47..3F,4F198008-198109

main90430-18007iBJ4#,FJ4#,HJ47198109-198408

sub90430-18008

main90430-18008iBJ4#,FJ4#,HJ47198408-198604

36111FPLUG (FOR TRANSFER CASE)

main90341-18002iBJ4#,FJ4#,HJ47198008-198305

FILLER PLUG

main90341-18006iBJ4#,FJ4#,HJ47198305-198604

FILLER PLUG

main90341-18057iBJ4#,FJ4#,HJ47198008-198604

DRAIN PLUG

36115HOUSING, TRANSFER EXTENSION

main36115-60010iFJ4#..3F198008-198210

36122COVER, TRANSFER CASE, NO.2

main36122-60020iFJ4#..3F198008-198210

main36122-60040iBJ4#,FJ4#,HJ47..4F,5F198008-198604

36124COVER, TRANSFER POWER TAKE-OFF

main36124-60010iFJ4#..3F198008-198210

main36124-60020iBJ4#,FJ4#,HJ47..4F,5F198008-198604

36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1

main36132-60010iFJ4#..3F198008-198210

main36132-60020iBJ40,42,43,46,FJ40,43..4F,5F198008-198410

sub36132-60021

sub90311-48023

main36132-60020iFJ45,HJ47..RHD..GEN..IV198210-198506

W/RR WHEEL PARKING BRAKE

sub36132-60021

sub90311-48023

main36132-60030iFJ40..LHD..(TPC,VLS)..4F..WORB..GEN198008-198510

VENEZUELA SPEC

main36132-60030iBJ45,FJ45,HJ47..4F198008-198604

36132ASEAL, OIL (FOR OUTPUT SHAFT RETAINER)

main90311-45001iFJ40..LHD..(TPC,VLS)..4F..WORB..GEN198008-198510

VENEZUELA SPEC

main90311-45001iFJ40,43..3F;BJ45,FJ45,HJ47198008-198604

main90311-48003iBJ40,42,43,46,FJ40,43..4F,5F198008-198410

sub90311-48010

main90311-48003iFJ45,HJ47..RHD..GEN..IV198210-198506

W/RR WHEEL PARKING BRAKE

sub90311-48010

36141GASKET, TRANSFER CASE COVER, NO.1

main36141-60020iFJ4#..3F198008-198210

36142GASKET, TRANSFER COVER

main36142-60020iFJ4#..3F198008-198012

sub36142-60050

main36142-60030iBJ4#,FJ4#,HJ47..4F,5F198008-198604

main36142-60050iFJ4#..3F198012-198210

36143GASKET, TRANSFER CASE, FRONT

main33142-60020iBJ46;BJ40,42,43,45,FJ4#,HJ47..4F198008-198604

main33142-60030iBJ42,46,FJ40,43..5F198210-198410

main36143-60010iFJ4#..3F198008-198210

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main36144-60010iFJ4#..3F198008-198210

main36144-60020iBJ4#,FJ4#,HJ47..4F,5F198008-198604

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-60010iFJ4#..3F198008-198210

36152GASKET, OUTPUT SHAFT BEARING RETAINER

main36152-60020iFJ4#..3F198008-198210

main36152-60030iBJ4#,FJ4#,HJ47..4F,5F198008-198604

36164GASKET, TRANSFER SHIFT SHAFT GUIDE

main36164-60020iFJ4#..3F198008-198210

9010112317

main90101-12317

9011908092

main90119-08092

9161140812

main91611-40812

9161140820

main91611-40820

9161141020

main91611-41020

9161160825

main91611-60825

9161160830

main91611-60830

9161160845

main91611-60845

9161961240

main91619-61240

9451102000

main94511-02000

9451201200

main94512-01200

37 parts on this diagram · 2 diagrams in section
