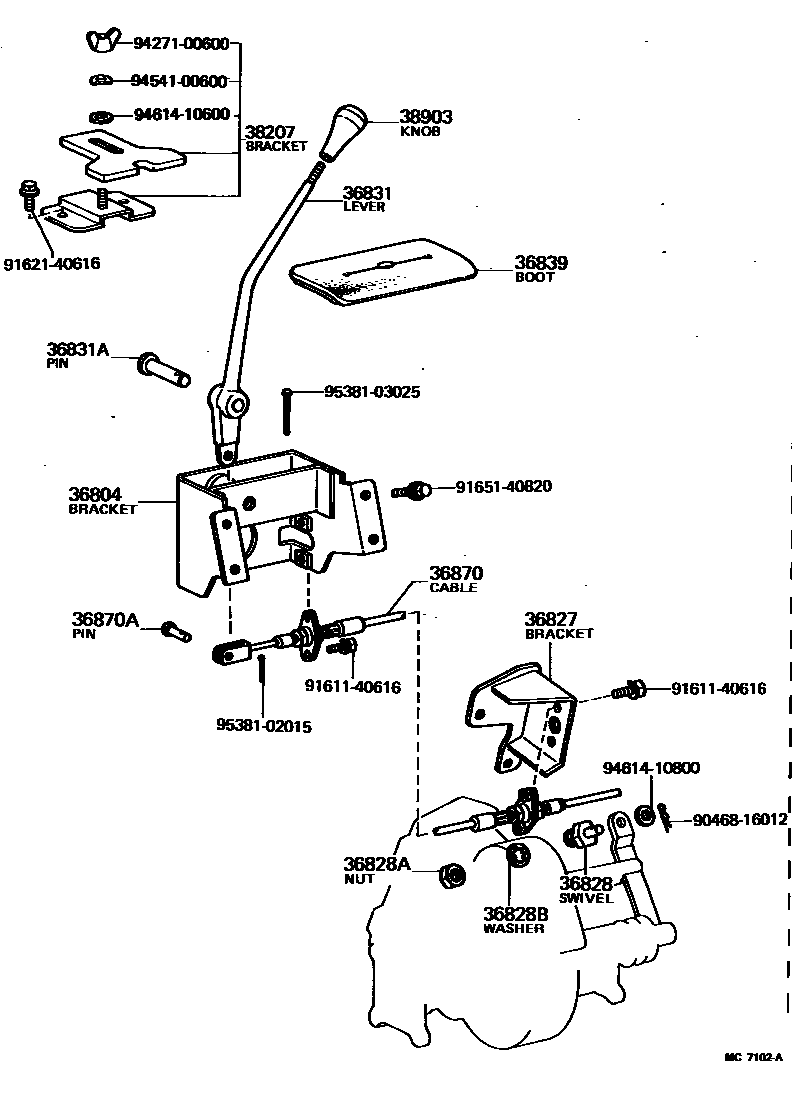

POWER TAKE-OFF LEVER & LINK

0001 1 0002 1

36804BRACKET SUB-ASSY, POWER TAKE-OFF SHIFT LEVER

main36804-60010iBJ4#,FJ4#,HJ47..4F198008-198210

main36804-60040iBJ42,46,FJ40,43..5F198210-198410

main36804-60050iBJ40,42,43,45,FJ4#,HJ47..4F198210-198604

36827BRACKET, POWER TAKE-OFF CABLE

main36827-60020iBJ4#,FJ4#,HJ47..4F198008-198210

36828SWIVEL, POWER TAKE-OFF CABLE

main36828-60010iBJ4#,FJ4#,HJ47..4F198008-198210

36828ANUT, HEXAGON (FOR POWER TAKE-OFF CABLE)

main90170-14057iBJ4#,FJ4#,HJ47..4F198008-198210

36828BWASHER, TOOTHED (FOR POWER TAKE-OFF CABLE)

main94521-01400iBJ4#,FJ4#,HJ47..4F198008-198210

36831LEVER, POWER TAKE-OFF SHIFT

main36807-60030iBJ4#,FJ4#,HJ47198210-198604

main36831-60060iBJ4#,FJ4#,HJ47..RHD..4F198008-198210

main36831-60070iBJ4#,FJ4#,HJ47..LHD..4F198008-198210

36831APIN (FOR POWER TAKE-OFF SHIFT LEVER)

main90240-13001iBJ4#,FJ4#,HJ47..4F198008-198210

36839BOOT, POWER TAKE-OFF SHIFT LEVER

main36839-60010iBJ4#,FJ4#,HJ47..4F198008-198210

main36839-60030iBJ4#,FJ4#,HJ47198210-198604

36870CABLE ASSY, POWER TAKE-OFF

main36870-60011iBJ4#,FJ4#..4F198008-198110

main36870-60012iFJ4#..4F198110-198210

main36870-60031iHJ47198008-198110

main36870-60032iHJ47198110-198210

main36870-60051iBJ4#198110-198210

36870APIN (FOR POWER TAKE-OFF CABLE)

main90240-08010iBJ4#,FJ4#,HJ47..4F198008-198210

38207BRACKET SUB-ASSY, LEVER SHIFT LOCK

main38207-60010iBJ4#,FJ4#,HJ47..4F198008-198210

38903KNOB SUB-ASSY, CONTROL

main36303-60050iBJ4#,FJ4#,HJ47..4F198008-198210

9046816012

main90468-16012

9161140616

main91611-40616

9162140616

main91621-40616

9165140820

main91651-40820

9427100600

main94271-00600

9454100600

main94541-00600

9461410600

main94614-10600

9461410800

main94614-10800

9538102015

main95381-02015

9538103025

main95381-03025

22 parts on this diagram · 2 diagrams in section
