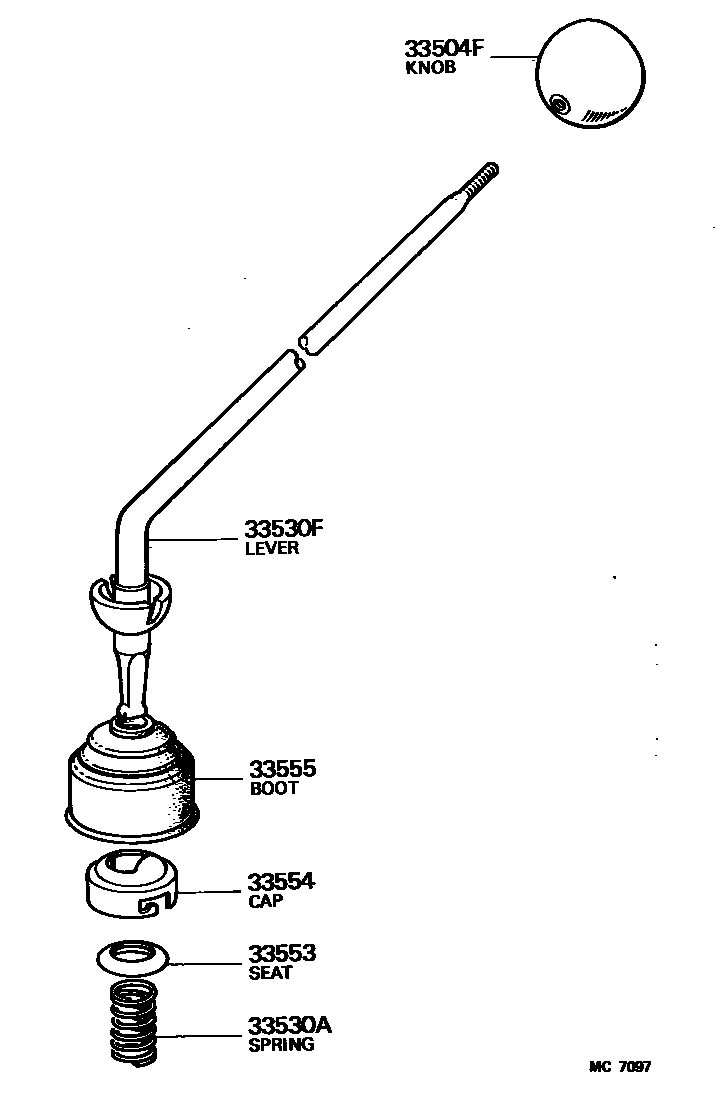

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22111iBJ42,46,FJ40,43..5F198210-198410

sub33504-14050

main33504-60021iFJ4#..3F198008-198210

main33504-60030iBJ46;BJ40,42,43,45,FJ4#,HJ47..4F198008-198604

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90501-32614iFJ4#..3F198008-198210

main90501-32791iBJ46;BJ40,42,43,45,FJ4#,HJ47..4F198008-198604

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33541-60070iFJ4#..LHD..3F198008-198210

main33541-60081iBJ42,FJ40,43..LHD..4F;BJ40,43,45,46,FJ45,HJ47..LHD..(4F,5F)198008-198604

main33541-60091iBJ4#,FJ4#,HJ47..RHD..4F198008-198604

main33541-60100iFJ40,45..RHD..3F198008-198210

main33541-60150iBJ42,FJ40..ARL;FJ40..TPC..EUR198210-198410

main33541-60160iFJ40..LHD..VKC..5F;BJ42,46,FJ43..LHD..5F198210-198410

33553SEAT, SHIFT LEVER SPRING

main33553-60010iBJ46;BJ40,42,43,45,FJ4#,HJ47..3F,4F198008-198604

33554CAP, SHIFT LEVER

main33554-60010iBJ46;BJ40,42,43,45,FJ4#,HJ47..3F,4F198008-198604

main33554-60021iBJ42,46,FJ40,43..5F198210-198410

33555BOOT, SHIFT LEVER

main33555-55010iFJ4#..3F198008-198210

main33555-55011iBJ4#,FJ4#,HJ47..4F,5F198008-198604

6 parts on this diagram · 3 diagrams in section
