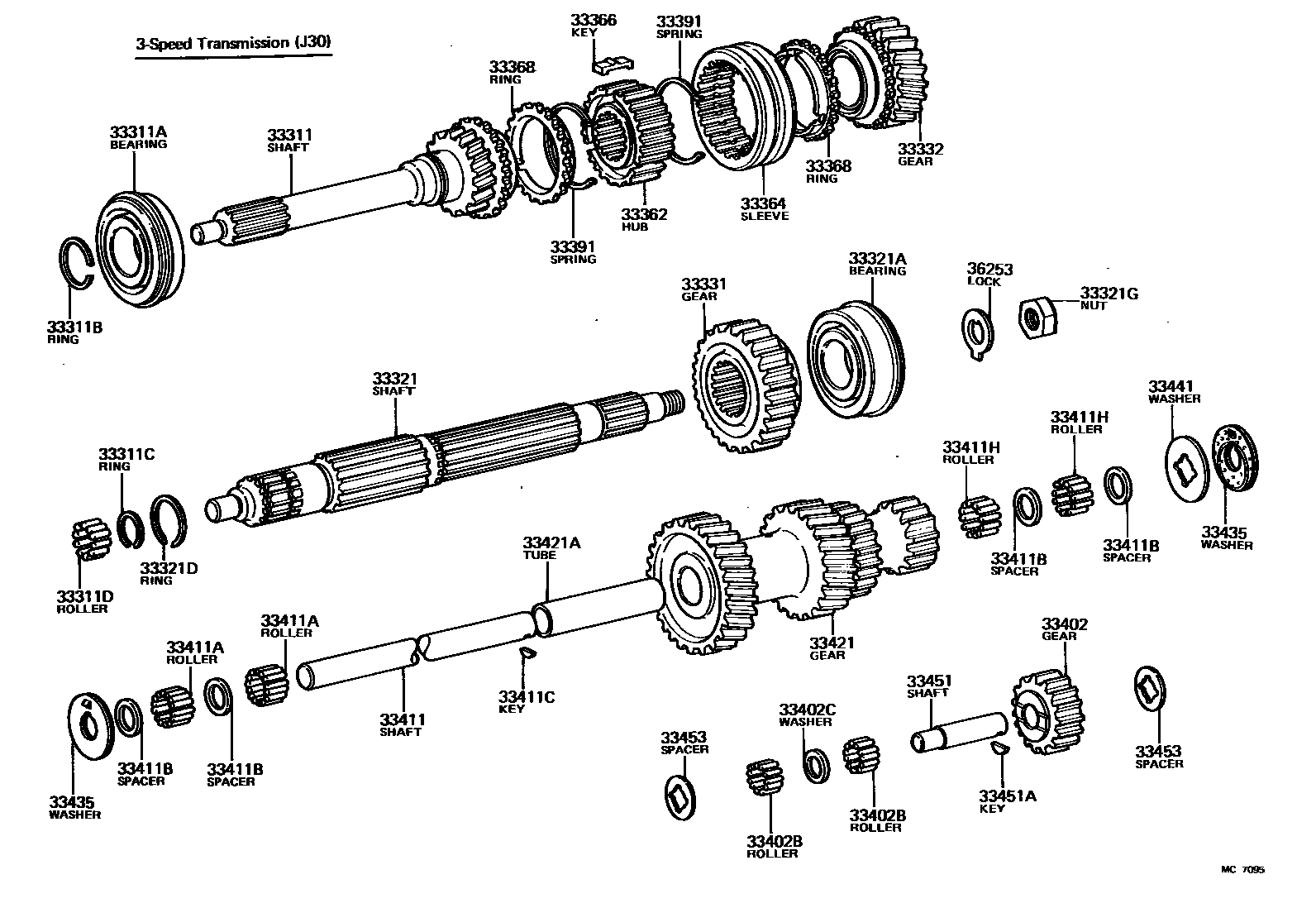

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=3.31-3.42,T=3.31-3.42
T=3.20-3.31,T=3.20-3.31
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.35-2.40,MARK 12,T=2.35-2.40
T=2.25,MARK 5,T=2.25-2.30
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33331GEAR, REVERSE
33332GEAR, 2ND
33362HUB, TRANSMISSION CLUTCH, NO.2
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33402BROLLER (FOR REVERSE IDLER)
33402CWASHER, PLATE (FOR REVERSE IDLER)
33411COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
33421ATUBE(FOR COUNTER GEAR)
33435WASHER, COUNTER GEAR CASE SIDE THRUST
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=1.45-1.50
T=1.50-1.55
T=1.55-1.60
33451SHAFT, REVERSE IDLER GEAR
33453SPACER, REVERSE IDLER GEAR SHAFT
36253LOCK, INPUT SHAFT NUT
32 parts on this diagram · 3 diagrams in section
