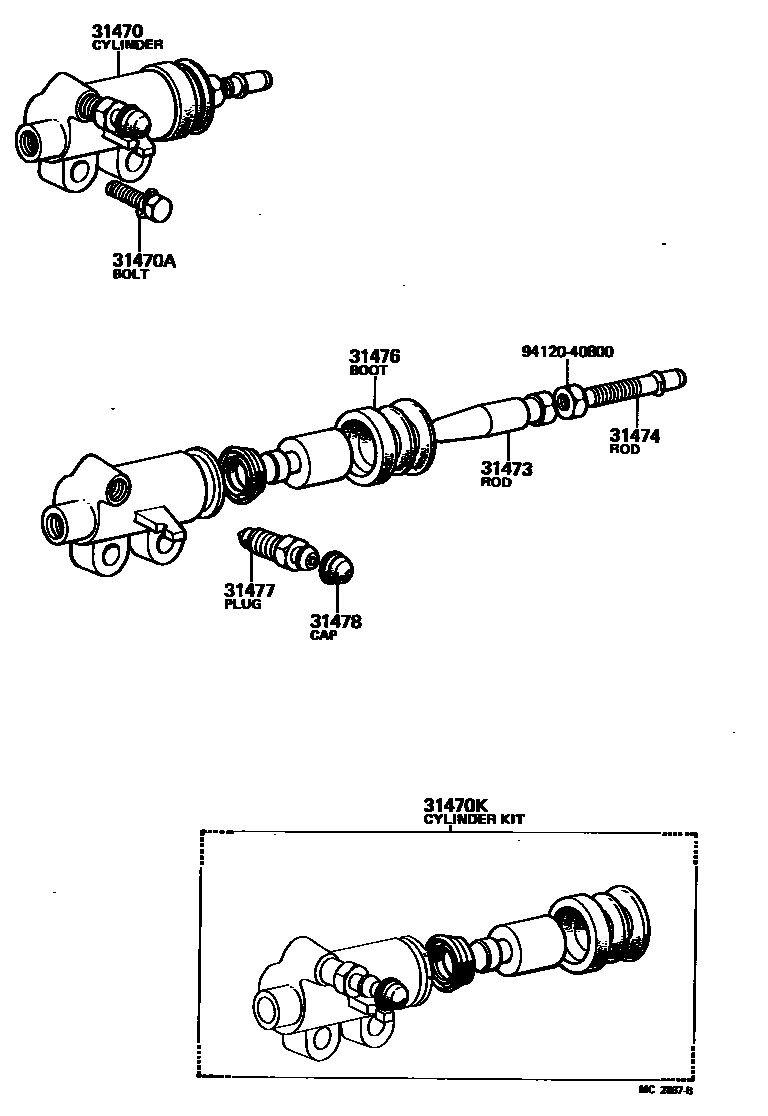

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60050iBJ4#198008-198110

main31470-60081iFJ4#198008-198604

main31470-60091iHJ47198008-198506

main31470-60110iBJ4#198110-198410

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40828iBJ4#198008-198410

sub91611-60828

main91611-41055iFJ4#,HJ47198008-198604

sub91611-61055

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-40021iBJ4#198008-198110

main04313-60020iFJ4#,HJ47198008-198604

main04313-60040iBJ4#198110-198410

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iBJ4#198008-198110

main31473-60061iFJ4#198008-198604

main31473-60071iHJ47198008-198506

main31473-60090iBJ4#198110-198410

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31474-30020iBJ4#198008-198410

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-40010iBJ4#198008-198110

main31476-60031iFJ4#,HJ47198008-198604

main31476-60060iBJ4#198110-198410

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ4#,FJ4#,HJ47198008-198604

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ4#,FJ4#,HJ47198008-198604

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
