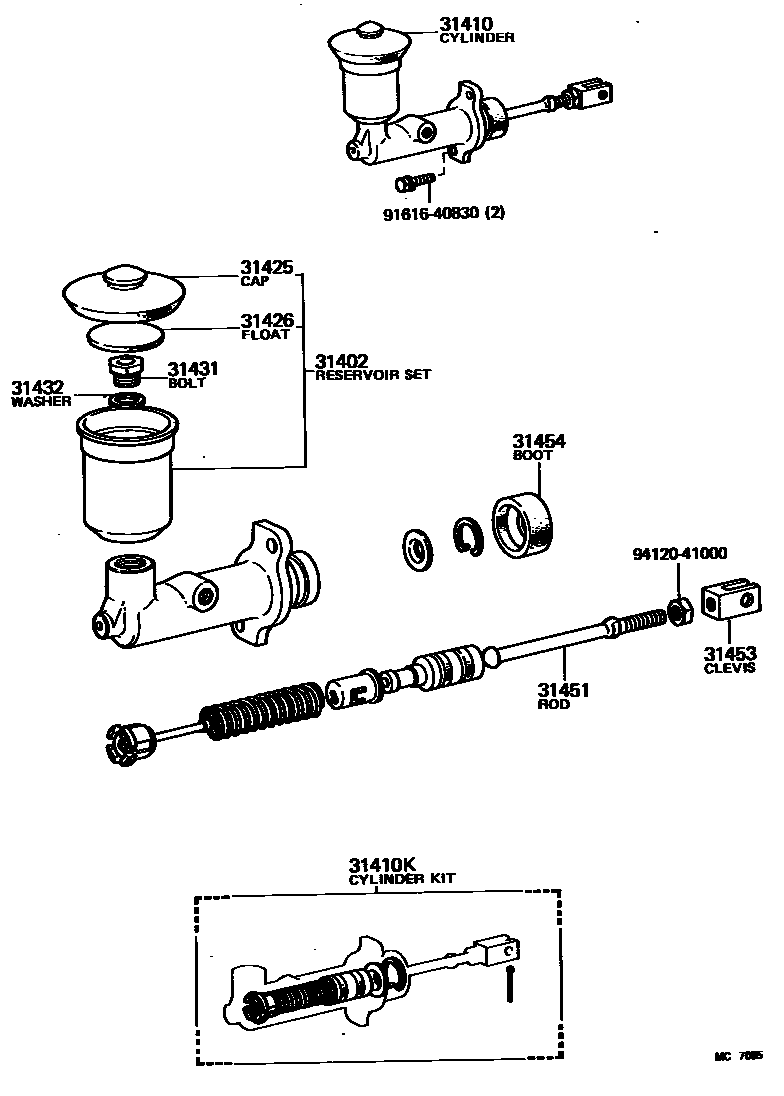

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-12010iBJ4#,FJ4#,HJ47198008-198604

sub47202-12050

31410CYLINDER ASSY, CLUTCH MASTER

main31410-60050iBJ4#,FJ4#,HJ47198008-198604

sub31410-60051

31410KCYLINDER KIT, CLUTCH MASTER

main04311-60030iBJ4#,FJ4#,HJ47198008-198604

sub04311-60031

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBJ4#,FJ4#,HJ47198008-198604

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iBJ4#,FJ4#,HJ47198008-198604

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iBJ4#,FJ4#,HJ47198008-198604

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iBJ4#,FJ4#,HJ47198008-198604

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30030iBJ4#,FJ4#,HJ47198008-198604

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-30011iBJ4#,FJ4#,HJ47198008-198604

31454BOOT, CLUTCH MASTER CYLINDER

main31454-30030iBJ4#,FJ4#,HJ47198008-198604

9161640830

main91616-40830

9412041000

main94120-41000

12 parts on this diagram · 1 diagram in section
