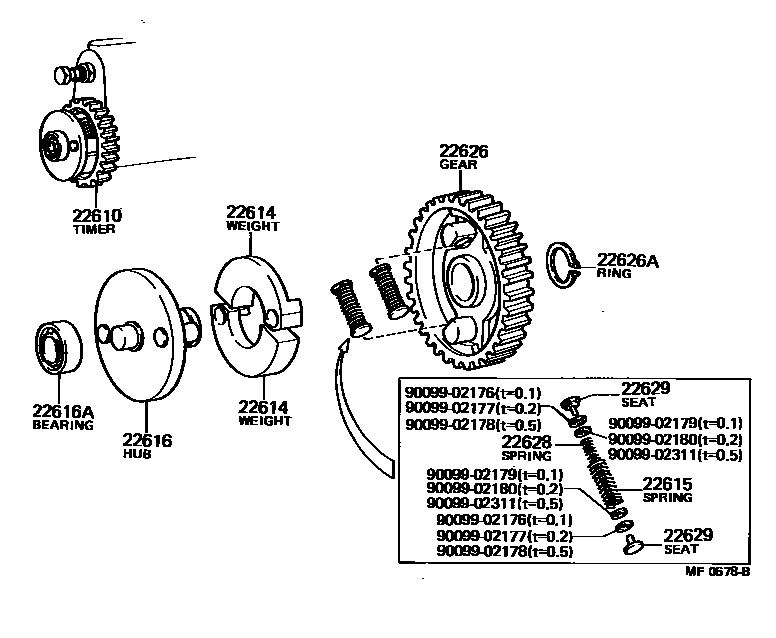

AUTOMATIC TIMER

0001 1 0002 1 0003 1

22610TIMER ASSY, AUTOMATIC

main22610-56030iB..BJ40,43198008-198408

main22610-56040i3B..BJ42,45,46198008-198408

main22610-56050iB..BJ40,43198408-198410

main22610-58010i3B..BJ42,45,46198408-198410

main22610-68010i2H..HJ47198008-198110

main22610-68011i2H..HJ47198110-198506

22614WEIGHT, TIMER

main22614-56020iB,3B..BJ4#198008-198410

main22614-68010i2H..HJ47198110-198506

main22614-68011i2H..HJ47198008-198110

22615SPRING, TIMER

main22615-56030iB..BJ40,43198008-198410

main22615-56040i3B..BJ42,45,46198008-198410

main22615-68011i2H..HJ47198008-198110

main22615-68012i2H..HJ47198110-198506

22616HUB, TIMER

main22616-56030iB,3B..BJ4#198008-198410

main22616-68010i2H..HJ47198008-198110

main22616-68011i2H..HJ47198110-198506

22616ABEARING(FOR TIMER HUB)

main90099-10018iB,3B..BJ4#198008-198410

22626GEAR, DRIVE

main22626-56030iB,3B..BJ4#198008-198408

main22626-56050iB,3B..BJ4#198408-198410

main22626-68010i2H..HJ47198008-198506

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001iB,3B..BJ4#198008-198410

main90096-90021i2H..HJ47198008-198506

22628SPRING, TIMER SUB

main22628-56030iB..BJ40,43198008-198410

main22628-68010i2H..HJ47198008-198110

main22628-68011i2H..HJ47198110-198506

22629SEAT, SPRING(FOR TIMER SPRING)

main22629-47010iB..BJ40,43198008-198410

main22629-68010i2H..HJ47198008-198506

9009902176

main90099-02176

9009902177

main90099-02177

9009902178

main90099-02178

9009902179

main90099-02179

9009902180

main90099-02180

9009902311

main90099-02311

15 parts on this diagram · 3 diagrams in section
