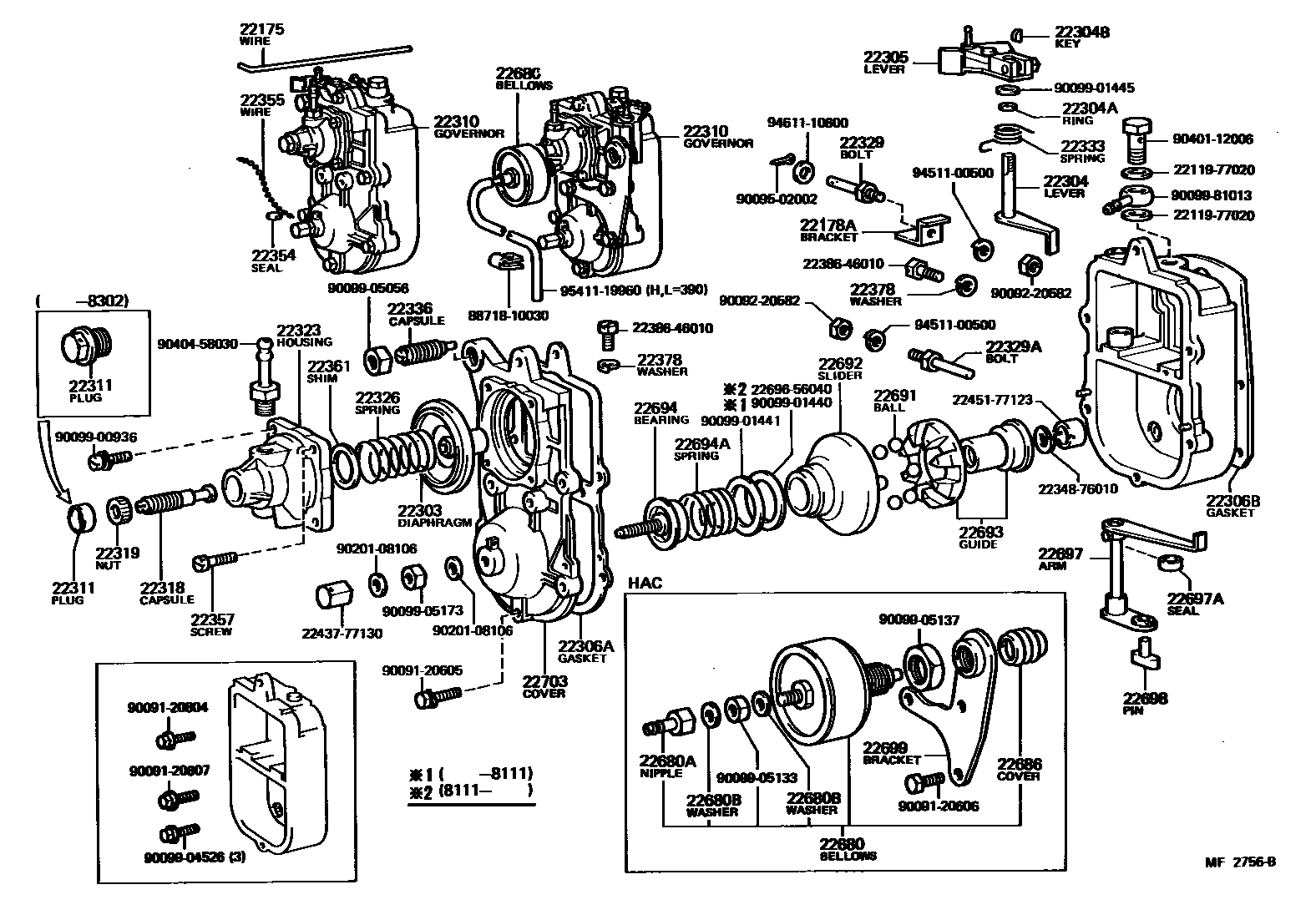

PNEUMATIC GOVERNOR

0001 1 0002 1

22175WIRE, OVER INJECTION

22178ABRACKET, DIAPHRAGM CONNECTING

main22178-48024i2H..HJ47198008-198506

main22178-56011iB,3B..BJ4#198008-198410

22303DIAPHRAGM SUB-ASSY, GOVERNOR

main22303-47010iB,3B..BJ4#198008-198506

22304LEVER SUB-ASSY, INJECTION PUMP, NO.3

main22408-68010iB,3B..BJ4#198008-198506

22304ARING, O(FOR NO.3 LEVER)

main96710-01008iB,3B..BJ4#198008-198506

sub96711-19008

22304BKEY(FOR NO.3 LEVER)

main90099-13001iB,3B..BJ4#198008-198506

22305LEVER SUB-ASSY, INJECTION PUMP, NO.1

main22308-56041iB,3B..BJ4#198008-198410

W/EDIC

main22308-56061iB,3B..BJ4#198008-198410

main22308-56130iB,3B..BJ4#198008-198410

W/EDIC & HAC

main22308-56150iB,3B..BJ4#198008-198410

W/HAC

main22308-68010i2H..HJ47..GEN198008-198411

main22308-68020i2H..HJ47198008-198411

W/EDIC

main22308-68030i2H..HJ47198411-198506

main22308-68030i2H..HJ47..GEN198008-198411

W/HAC

main22308-68040i2H..HJ47198008-198411

W/EDIC & HAC

22306AGASKET(FOR GOVERNOR HOUSING)

main22442-77130iB,3B..BJ4#198008-198506

22306BGASKET(FOR INJECTION PUMP HOUSING)

main22442-77131iB,3B..BJ4#198008-198506

sub22442-58260

22310GOVERNOR ASSY, INJECTION PUMP

main22320-56041iB..BJ40,43198008-198410

W/EDIC

main22320-56131iB..BJ40,43198008-198410

W/EDIC & HAC

main22320-56141iB..BJ40,43198008-198410

main22320-56151iB..BJ40,43198008-198410

W/HAC

main22320-58010i3B..BJ42,45,46198008-198410

W/EDIC

main22320-58030i3B..BJ42,45,46198008-198410

W/EDIC & HAC

sub22320-58031

main22320-58040i3B..BJ42,45,46198008-198410

W/HAC

sub22320-58041

main22320-58050i3B..BJ42,45,46198008-198410

sub22320-58051

main22320-68010i2H..HJ47..GEN198008-198411

main22320-68020i2H..HJ47198008-198411

W/EDIC

main22320-68030i2H..HJ47..GEN198008-198411

W/HAC

main22320-68030i2H..HJ47198411-198506

main22320-68040i2H..HJ47198008-198411

W/EDIC & HAC

22311PLUG, DIAPHRAGM HOUSING SEALING SCREW

main22311-77130i2H..HJ47198008-198302

main22457-58010i2H..HJ47198302-198506

22318CAPSULE, IDLING

main22318-48030i2H..HJ47198008-198506

22319NUT, GOVERNOR IDLING SPRING SET

main22319-77010iB,3B..BJ4#198008-198506

22323HOUSING, GOVERNOR DIAPHRAGM

main22323-58010i2H..HJ47198302-198506

main22323-77010i2H..HJ47198008-198302

22326SPRING, GOVERNOR MAIN

main22326-48030i2H..HJ47198008-198506

main22326-56040iB..BJ40,43198008-198410

main22326-58010i3B..BJ42,45,46198008-198410

22329BOLT, DIAPHRAGM CONNECTING

main22329-77021i2H..HJ47198008-198506

22329ABOLT, DIAPHRAGM CONNECTING, NO.2

main22329-77130i2H..HJ47198008-198506

22333SPRING, DIAPHRAGM STOP LEVER RETURN

main22333-56040iB,3B..BJ4#198008-198410

main22333-77130i2H..HJ47198008-198506

22336CAPSULE, FULL STOP

main22336-46010iB,3B..BJ4#198008-198411

W/O HAC

sub22336-68010

22354SEAL, LEAD

main22354-77050iB,3B..BJ4#198008-198506

22355WIRE, GOVERNOR HOUSING SEAL

main22355-36010iB,3B..BJ4#198008-198506

22357SCREW, DIAPHRAGM HOUSING SET

main90099-04945iB,3B..BJ4#198008-198506

22361SHIM, MAIN SPRING

main22361-76010i2H..HJ47198008-198506

T=3.0,T=3.0

main22362-76010iB,3B..BJ4#198008-198506

T=2.0,T=2.0

main22363-76010iB,3B..BJ4#198008-198506

T=1.0,T=1.0

main22364-76010iB,3B..BJ4#198008-198506

T=0.5,T=0.5

22378WASHER, DRAIN SCREW

main22113-77090i2H..HJ47198008-198506

main22378-76010iB,3B..BJ4#198008-198410

sub22113-77090

22680BELLOWS ASSY, PNEUMATIC

main22680-48061i2H..HJ47198008-198111

W/HAC

sub22680-48062

main22680-48062iB,3B..BJ4#198111-198506

W/HAC

22680ANIPPLE SUB-ASSY, OVERFLOW(FOR PNEUMATIC BELLOWS)

main22197-77140iB,3B..BJ4#198008-198506

22680BWASHER(FOR PNEUMATIC BELLOWS)

main90201-08106iB,3B..BJ4#198008-198506

22686COVER, PNEUMATIC BELLOWS

main22686-48061iB,3B..BJ4#198008-198506

22691BALL, SPEED CONTROL

main90099-12010i2H..HJ47198008-198506

22692SLIDER(FOR SPEED CONTROL)

main22692-56040iB,3B..BJ4#198008-198111

sub22692-56041

main22692-56041iB,3B..BJ4#198111-198410

main22692-77130i2H..HJ47198008-198111

sub22692-56041

main22692-77131i2H..HJ47198111-198506

sub22692-56041

22693GUIDE, BALL

main22693-77130iB,3B..BJ4#198008-198506

22694BEARING SUB-ASSY

main22694-77130iB,3B..BJ4#198008-198506

22694ASPRING, SPEED CONTROL

main22449-48030iB,3B..BJ4#198008-198506

22697ARM SUB-ASSY

main22697-56040iB,3B..BJ4#198008-198111

sub22697-56041

main22697-56041iB,3B..BJ4#198111-198410

main22697-77130i2H..HJ47198008-198111

main22697-77131i2H..HJ47198111-198506

22697ASEAL, OIL(FOR NO.3 LEVER)

main85613-31010i2H..HJ47198008-198506

22698PIN, SHIFTING

main22698-77130i2H..HJ47198008-198111

main22698-77131iB,3B..BJ4#198111-198506

22699BRACKET SUB-ASSY, ADJUSTING

main22699-56130iB,3B..BJ4#198008-198410

W/EDIC & HAC

main22699-56150iB,3B..BJ4#198008-198410

W/HAC

main22699-68010i2H..HJ47198008-198506

W/HAC

22703COVER, GOVERNOR

main22703-56040iB,3B..BJ4#198008-198410

W/O HAC

main22703-68010i2H..HJ47198103-198411

W/O HAC

main22703-77130i2H..HJ47198008-198103

W/O HAC

sub22703-68010

main22703-77140iB,3B..BJ4#198008-198411

W/HAC

main22703-77140i2H..HJ47198411-198506

2211977020WASHER, AIR BLEEDER NIPPLE

main22119-77020

2234876010BUSH, GEAR SHAFT

main22348-76010

2238646010SCREW(FOR INJECTION PUMP GOVERNOR)

main22386-46010

2243777130ARM, SPRING

main22437-77130

2245177123ADAPTER

main22451-77123

2269656040SEAT, INJECTION PUMP SPRING, NO.1

main22696-56040

8871810030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10030

9009120605

main90091-20605

9009120606

main90091-20606

9009120607

main90091-20607

9009120804

main90091-20804

9009220582

main90092-20582

9009502002

main90095-02002

9009900936

main90099-00936

9009901440

main90099-01440

9009901441

main90099-01441

9009901445

main90099-01445

9009904526

main90099-04526

9009905056

main90099-05056

9009905133

main90099-05133

9009905137

main90099-05137

9009905173

main90099-05173

9009981013

main90099-81013

9020108106

main90201-08106

9040112006

main90401-12006

9040458030

main90404-58030

9451100500

main94511-00500

9461110600

main94611-10600

9541119960

main95411-19960
