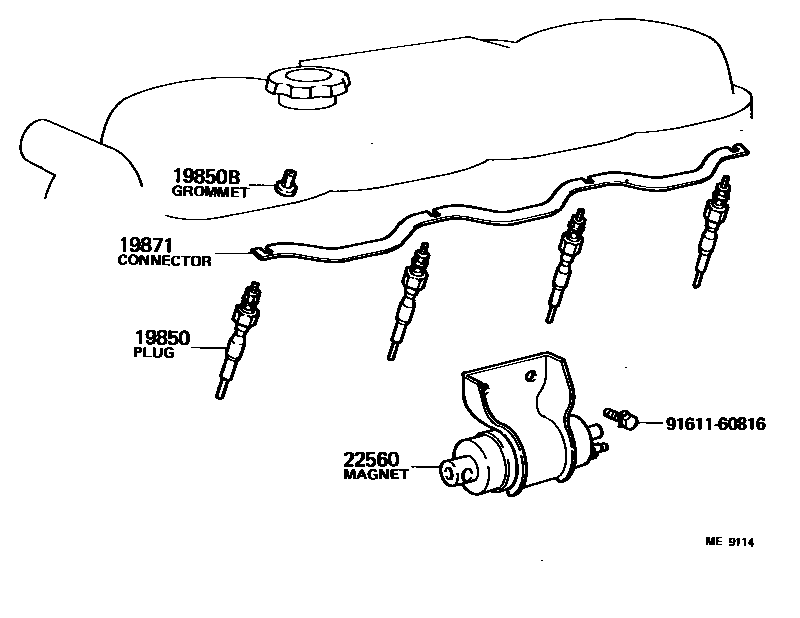

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-68030i2H..HJ47..GEN198008-198506

*12V-8.5V

main19850-68030iB,3B..BJ4#..ARL,GEN198008-198210

*12V-6V

main19850-68040iB,3B..BJ4#..EUR,GEN198008-198410

*24V-20.5V

main19850-68050i3B..BJ42..ARL198210-198410

*BV-GV=12V-6V,*12V-6V

sub19850-68051

main19850-68060i3B..BJ42,45,46..EUR198110-198410

*BV-GV=24V-14V,*24V-14V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024iB,3B..BJ4#198008-198506

19871CONNECTOR, GLOW PLUG NO.1

main19871-56020iB,3B..BJ4#198008-198410

main19871-68010i2H..HJ47198008-198204

sub19871-68011

main19871-68011i2H..HJ47198204-198506

22560MAGNET ASSY, OVER INJECTION

main22560-48010i2H..HJ47..GEN198008-198506

W/O EDIC

main22560-56030iB,3B..BJ4#..GEN198008-198410

24V W/O EDIC

main22560-56040iB,3B..BJ4#..GEN198008-198410

12V W/O EDIC

9161160816

main91611-60816

5 parts on this diagram · 3 diagrams in section
