AIR CLEANER

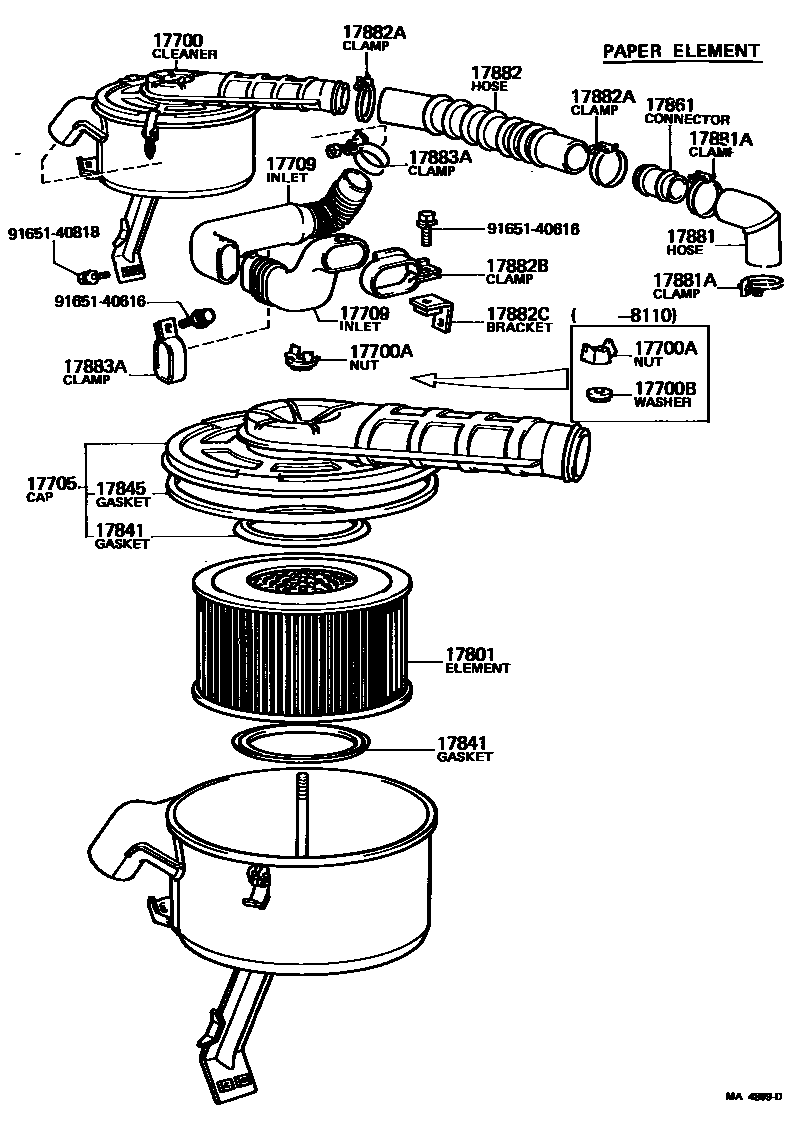

Parts diagram
17700CLEANER ASSY, AIR
main17700-58010i198008-198110
PAPER ELEMENT
main17700-58011i198110-198210
PAPER ELEMENT
sub17700-58012
main17700-58012i198210-198410
PAPER ELEMENT
main17700-58020i198008-198110
OIL BATH
main17700-58021i198110-198410
OIL BATH
main17700-58030i198008-198110
CYCLONE
main17700-58031i198110-198210
CYCLONE
sub17700-58032
main17700-58032i198210-198410
CYCLONE
main17700-61023i198401-198410
VICTORIA SPEC
main17700-61023i198008-198309
*NSW
main17700-61023i198008-198410
main17700-61023i198008-198202
HONG KONG SPEC
main17700-61081i198008-198210
PAPER ELEMENT
sub17700-61082
main17700-61082i198210-198604
PAPER ELEMENT
main17700-61090i198008-198210
CYCLONE
sub17700-61091
main17700-61091i198210-198410
CYCLONE
main17700-61131i198008-198604
OIL BATH
main17700-68040i198008-198210
PAPER ELEMENT
sub17700-68041
main17700-68041i198210-198506
PAPER ELEMENT
main17700-68050i198008-198210
PAPER ELEMENT
sub17700-68051
main17700-68051i198210-198410
PAPER ELEMENT
main17700-68060i198008-198506
OIL BATH
main17700-68070i198008-198410
OIL BATH
main17700-68080i198008-198210
CYCLONE
sub17700-68081
main17700-68081i198210-198506
CYCLONE
main17700-68090i198008-198210
CYCLONE
sub17700-68091
main17700-68091i198210-198410
CYCLONE
main17700-68170i198407-198410
CHINA COLD SPEC
sub17700-68171
17700ANUT, WING(FOR AIR CLEANER)
main90175-06003i198008-198202
HONG KONG SPEC
main90175-06003i198008-198309
*NSW
main90175-06003i198008-198410
main90175-06003i198401-198410
VICTORIA SPEC
main90175-08008i198008-198604
main94271-00800i198008-198110
17700BWASHER, SEAL(FOR AIR CLEANER)
main90201-08003i198008-198110
sub90201-10004
17705CAP SUB-ASSY, AIR CLEANER
main17705-47021i198008-198110
OIL BATH
main17705-56071i198008-198110
PAPER ELEMENT
main17705-56290i198110-198410
PAPER ELEMENT
main17705-58060i198110-198410
OIL BATH
main17705-61011i198008-198604
PAPER ELEMENT
main17705-61023i198401-198410
VICTORIA SPEC
main17705-61023i198008-198410
main17705-61023i198008-198202
HONG KONG SPEC
main17705-61023i198008-198604
*NSW
main17705-61060i198008-198410
CYCLONE
main17705-61070i198008-198604
OIL BATH
main17705-68040i198008-198506
PAPER ELEMENT
main17705-68050i198008-198506
OIL BATH
main17705-68060i198008-198506
CYCLONE
sub17705-68040
17709INLET SUB-ASSY, AIR CLEANER
main17795-90300i198008-198410
BODY SIDE
main17796-90300i198008-198410
AIR CLEANER SIDE
main17808-90302i198407-198410
CHINA COLD SPEC
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
main17801-47030i198008-198410
OIL BATH
main17801-61010i198401-198410
VICTORIA SPEC
main17801-61010i198008-198202
HONG KONG SPEC
main17801-61010i198008-198410
main17801-61010i198008-198309
*NSW
main17801-61020i198008-198210
CYCLONE
sub17801-68020
main17801-66020i198008-198210
PAPER ELEMENT OR CYCLONE
sub17801-68020
main17801-66020i198008-198210
PAPER ELEMENT
sub17801-68020
main17801-68010i198008-198506
OIL BATH
main17801-68020i198210-198604
PAPER ELEMENT OR CYCLONE
main17801-68020i198210-198410
CYCLONE
17841GASKET, FILTER ELEMENT
main17841-56020i198008-198410
OIL BATH,CAP SIDE
main17841-60011i198008-198604
PAPER ELEMENT
sub17841-68010
main17841-61011i198401-198410
VICTORIA SPEC
main17841-61011i198008-198410
main17841-61011i198008-198309
*NSW
main17841-61011i198008-198202
HONG KONG SPEC
main17841-68010i198008-198604
CYCLONE,LWR
main17841-68010i198008-198506
PAPER ELEMENT
main17841-68010i198008-198410
PAPER & CYCLONE
main17841-68030i198008-198604
CYCLONE,UPR
main17841-68040i198008-198604
OIL BATH,LWR
main17841-68050i198008-198604
OIL BATH,UPR CAP SIDE
sub17845-42010
main17841-68060i198008-198604
OIL BATH,UPR ELEMENT SIDE
main90430-10164i198008-198410
OIL BATH,CASE SIDE
17845GASKET, AIR CLEANER CAP
main17845-56040i198008-198210
sub17845-61011
main17845-61011i198008-198410
main17845-61011i198008-198202
HONG KONG SPEC
main17845-61011i198210-198410
*G,L=838
main17845-61011i198401-198410
VICTORIA SPEC
main17845-61011i198210-198604
*G,L=933
main17845-61011i198008-198309
*NSW
main17845-68010i198008-198210
sub17845-61011
17861CONNECTOR, INTAKE AIR
main17885-56010i198008-198410
17881HOSE, AIR CLEANER, NO.1
main17881-56030i198008-198410
main17881-61010i198008-198202
HONG KONG SPEC
main17881-61010i198008-198309
*NSW
main17881-61010i198008-198410
main17881-61010i198401-198410
VICTORIA SPEC
main17881-68020i198008-198506
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
main96111-10650i198008-198309
*NSW
main96111-10650i198008-198202
HONG KONG SPEC
main96111-10650i198008-198410
main96111-10650i198401-198410
VICTORIA SPEC
main96111-10670i198008-198410
main96111-10780i198008-198506
ID=78
main96111-10830i198008-198506
ID=83
17882HOSE, AIR CLEANER, NO.2
main17881-61020i198401-198410
VICTORIA SPEC
main17881-61020i198110-198309
*NSW
main17882-56020i198008-198410
main17882-61011i198008-198410
main17882-61011i198008-198202
HONG KONG SPEC
main17882-61011i198008-198110
*NSW
main17882-68010i198008-198506
main17882-68020i198008-198410
main59131-90800i198407-198410
CHINA COLD SPEC
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
main90460-01007i198008-198410
INLET SIDE
main90460-01007i198008-198110
*NSW,INLET SIDE
main90460-01007i198008-198202
INLET SIDE,HONG KONG SPEC
main96111-10670i198008-198410
CONNECTOR SIDE
main96111-10750i198008-198410
AIR CLEANER SIDE
main96111-10750i198407-198410
CHINA COLD SPEC
main96111-10800i198008-198202
CLEANER SIDE,HONG KONG SPEC
main96111-10800i198008-198410
CLEANER SIDE
main96111-10800i198401-198410
CLEANER SIDE,VICTORIA SPEC
main96111-10800i198008-198309
*NSW,CLEANER SIDE
main96111-10830i198008-198506
17882BCLAMP(FOR COOL AIR INTAKE)
main17782-90300i198008-198410
17882CBRACKET(FOR COOL AIR INTAKE)
main17781-90300i198008-198410
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
main17783-90300i198008-198410
INLET SIDE
main96111-10690i198008-198410
AIR CLEANER SIDE
9165140616
main91651-40616
9165140818
main91651-40818

18 parts on this diagram · 11 diagrams in section
