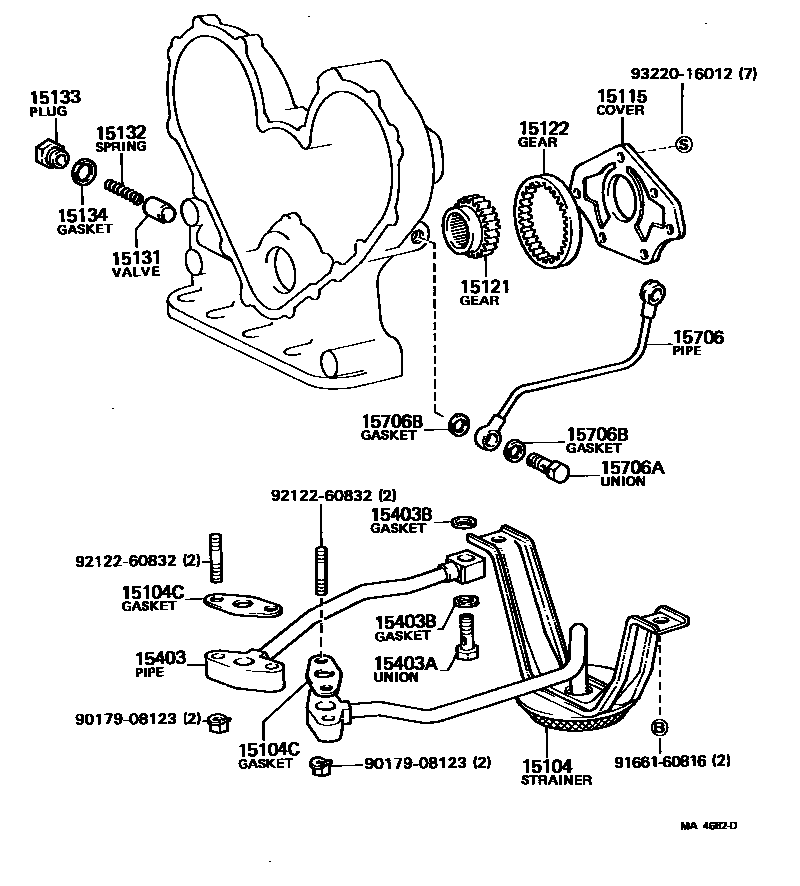

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-56040iB,3B..BJ4#198008-198408

sub15104-56050

sub15193-56020

main15104-56050iB,3B..BJ4#198408-198410

sub15104-56061

main15104-68010i2H..HJ47198008-198204

sub15104-68011

main15104-68011i2H..HJ47198204-198411

main15104-68012i2H..HJ47198411-198506

15104CGASKET(FOR OIL STRAINER)

main15149-68010i2H..HJ47198008-198506

sub15149-68020

main15193-56010iB,3B..BJ4#198109-198408

sub15149-56020

main15193-56020iB,3B..BJ4#198408-198410

sub15149-56020

main15422-56020iB,3B..BJ4#198008-198109

sub15193-56010

15115COVER, OIL PUMP

main15115-56030iB,3B..BJ4#198008-198410

main15115-68010i2H..HJ47198008-198506

15121GEAR, OIL PUMP DRIVE

main15121-56030iB,3B..BJ4#198008-198410

main15121-61011i2F..FJ4#198411-198604

main15121-68010i2H..HJ47198008-198205

sub15121-68011

main15121-68011i2H..HJ47198205-198506

main15121-88111i2F..FJ4#198008-198411

15122GEAR, OIL PUMP DRIVEN

main15122-56030iB,3B..BJ4#198008-198410

main15122-61011i2F..FJ4#198411-198604

sub15122-61020

main15122-68010i2H..HJ47198008-198205

sub15122-68011

main15122-68011i2H..HJ47198205-198506

main15122-79410i2F..FJ4#198008-198411

15131VALVE, OIL PUMP RELIEF

main15131-22010i2H..HJ47198008-198506

main15131-24010iB,3B..BJ4#198008-198604

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2F..FJ4#198008-198604

main15132-76011i2H..HJ47198008-198506

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB,3B..BJ4#198008-198506

main15133-24010i2F..FJ4#198008-198604

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB,3B..BJ4#198008-198506

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56040iB,3B..BJ4#198008-198408

main15403-56041iB,3B..BJ4#198408-198410

main15403-68010i2H..HJ47198008-198506

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002iB,3B..BJ4#198008-198410

main90401-18007i2H..HJ47198008-198506

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012iB,3B..BJ4#198008-198506

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010iB,3B..BJ4#198008-198410

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010iB,3B..BJ4#198008-198410

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026iB,3B..BJ4#198008-198410

9017908123

main90179-08123

9166160816

main91661-60816

9212260832

main92122-60832

9322016012

main93220-16012

19 parts on this diagram · 3 diagrams in section
