VENTILATION HOSE

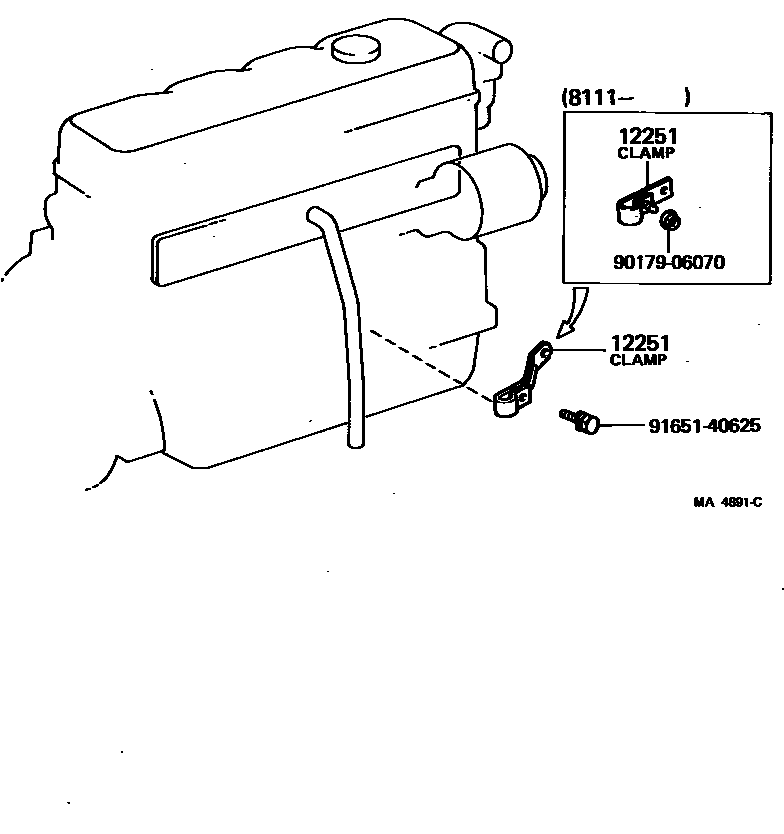

Parts diagram

12251CLAMP, VENTILATION TUBE

main12251-56030i¥1,280198008-198111

sub12251-56031¥1,280

sub90179-06070¥180

main12251-56031i¥1,280198111-198408

main12251-56040i¥1,290198408-198410

9017906070

main90179-06070¥180

9165140625

main91651-40625¥70

3 parts on this diagram · 3 diagrams in section
