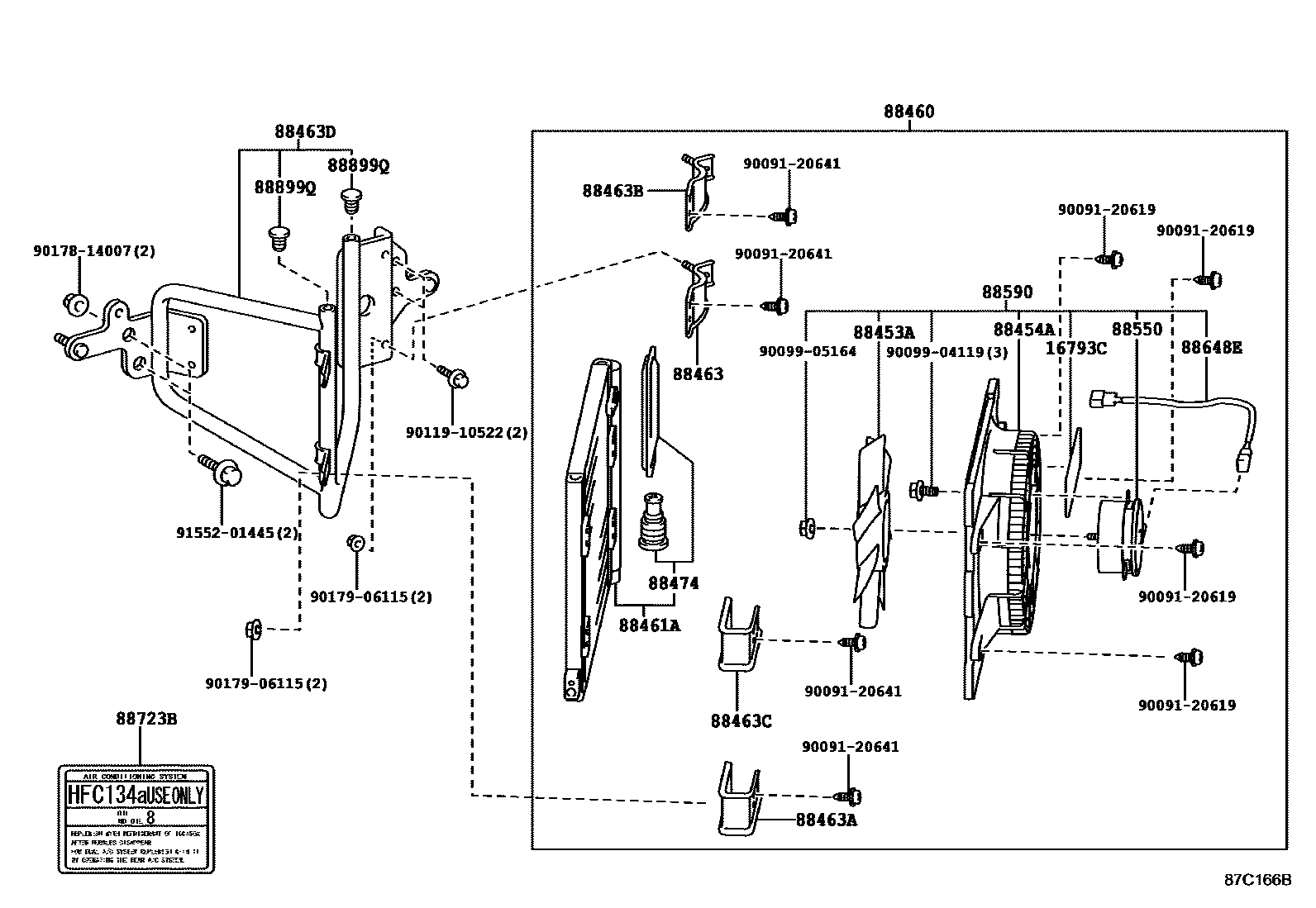

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & RECEIVER 0002 1CONDENSER & RECEIVER 0003 1CONDENSER & RECEIVER 0004 1CONDENSER & RECEIVER---W(RR C0005 1CONDENSER & RECEIVER 0006 1CONDENSER & RECEIVER 0007 1CONDENSER & RECEIVER 0008 1CONDENSER & RECEIVER---W(RR C0009 1CONDENSER & RECEIVER 0010 1PIPING 0011 1PIPING 0012 1PIPING 0013 1PIPING 0014 1PIPING 0015 1FRONT PIPING---W(REAR COOLER)0016 1REAR PIPING---W(REAR COOLER) 0017 1O-RING

16793CLABEL, COOLING FAN CAUTION

main16793-28020iN04C..XZU710,720,730..EUR201306-201512

sub16793-36040

88453AFAN, COOLING

main88453-37030iXZU710,720,730..EUR201306-202005

88454ASHROUD, FAN

main88454-37130iXZU710,720,730..EUR201306-201512

main88454-37170iWU710,720,XZU710,720..MTM..GCC201605-202005

88460CONDENSER ASSY, COOLER

main88460-37A10iXZU710,720,730..EUR201306-202005

88461ACORE, COOLER CONDENSER

main88461-37160iXZU710,720,730..EUR201306-202005

88463BRACKET, COOLER CONDENSER, NO.1

main88688-37D80iXZU710,720,730..EUR201306-202005

88463ABRACKET, COOLER CONDENSER, NO.2

main88688-37D90iXZU710,720,730..EUR201306-202005

88463BBRACKET, COOLER CONDENSER, NO.3

main88688-37E00iXZU710,720,730..EUR201306-202005

88463CBRACKET, COOLER CONDENSER, NO.4

main88688-37E10iXZU710,720,730..EUR201306-202005

88463DBRACKET, COOLER CONDENSER, NO.5

main88688-37D60iXZU710,720,730..EUR201306-202005

88474DRYER, COOLER

main88474-12030iWU710..GEN;WU700,720..5F;WU710..85T..CBU201410-202005

AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER)

main88474-12030iXZU710,720,730..EUR201410-202005

main88474-12030iXZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T)201410-202005

AIR CONDITIONER-MANUAL

main88474-17010iXZU710,720,730..EUR201306-201410

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-37120iXZU710,720,730..EUR201306-202005

88590BLOWER ASSY, W/SHROUD

main88590-37260iXZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T)201306-202005

88648EWIRING, COOLER

main88648-37140iXZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T)201306-202005

88723BLABEL, COOLER SERVICE CAUTION

main88723-28220iXZU710,720,730..EUR201306-202005

88899QPLATE, COVER

main88899-30840iXZU710,720,730..EUR201306-202005

9009120619

main90091-20619

9009120641

main90091-20641

9009904119

main90099-04119

9009905164

main90099-05164

9011910522

main90119-10522

9017814007

main90178-14007

9017906115

main90179-06115

9155201445

main91552-01445

24 parts on this diagram · 17 diagrams in section
