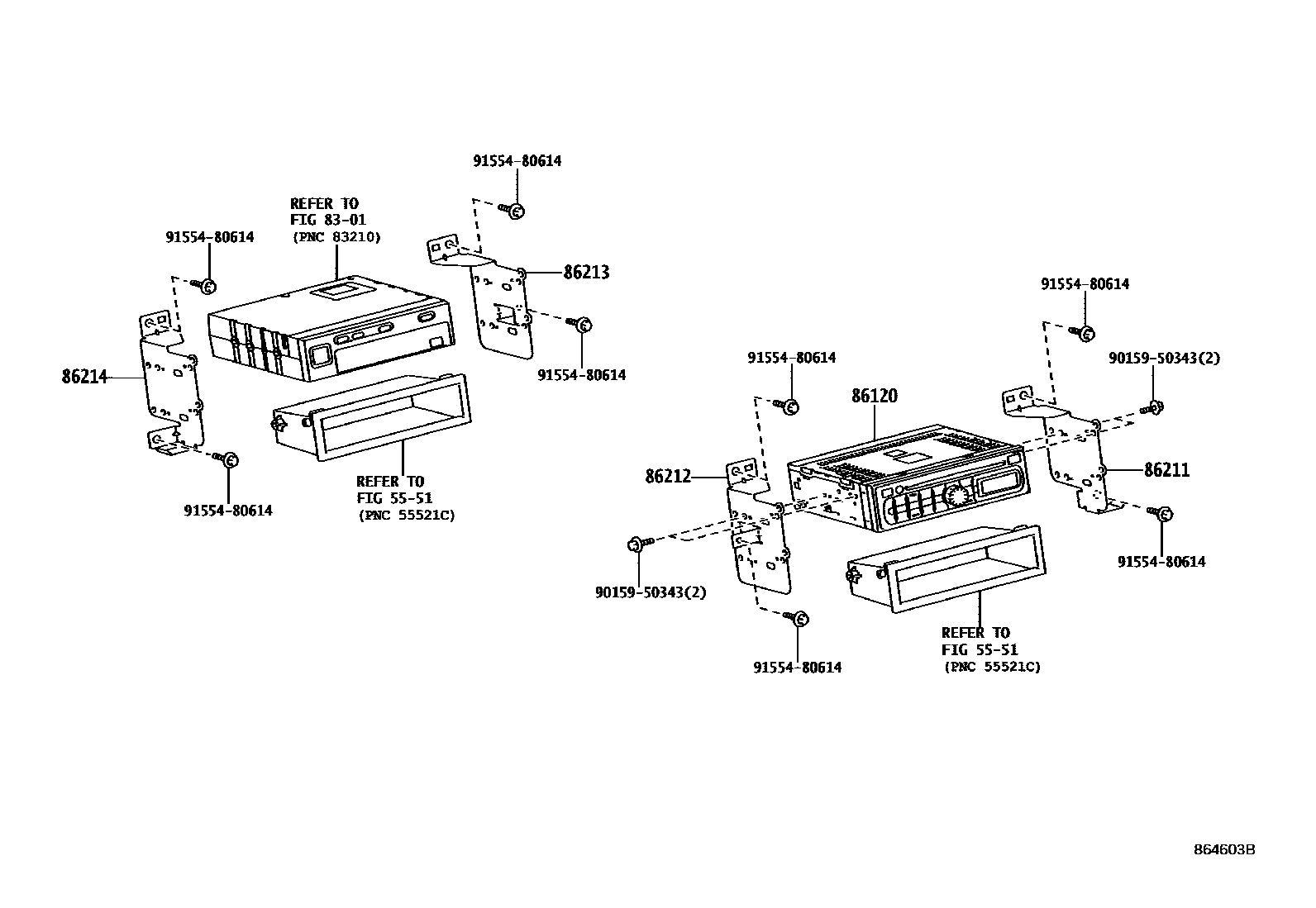

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

5551

8301

86120RECEIVER ASSY, RADIO

main86120-E0310

main86120-E0320

main86120-E0380

main86120-E0381

main86120-37390

main86120-E0400

main86120-37400

main86120-37401

main86120-37470

main86120-37480

86211BRACKET, RADIO, NO.1

main86211-37110iXZU710..CBU201107-202005

86212BRACKET, RADIO, NO.2

main86212-37100iXZU710..CBU201107-202005

86213BRACKET, RADIO, NO.3

main86211-37120iXZU710..CBU201107-202005

86214BRACKET, RADIO, NO.4

main86212-37090iXZU710..CBU201107-202005

9015950343

main90159-50343

9155480614

main91554-80614

9 parts on this diagram · 3 diagrams in section
