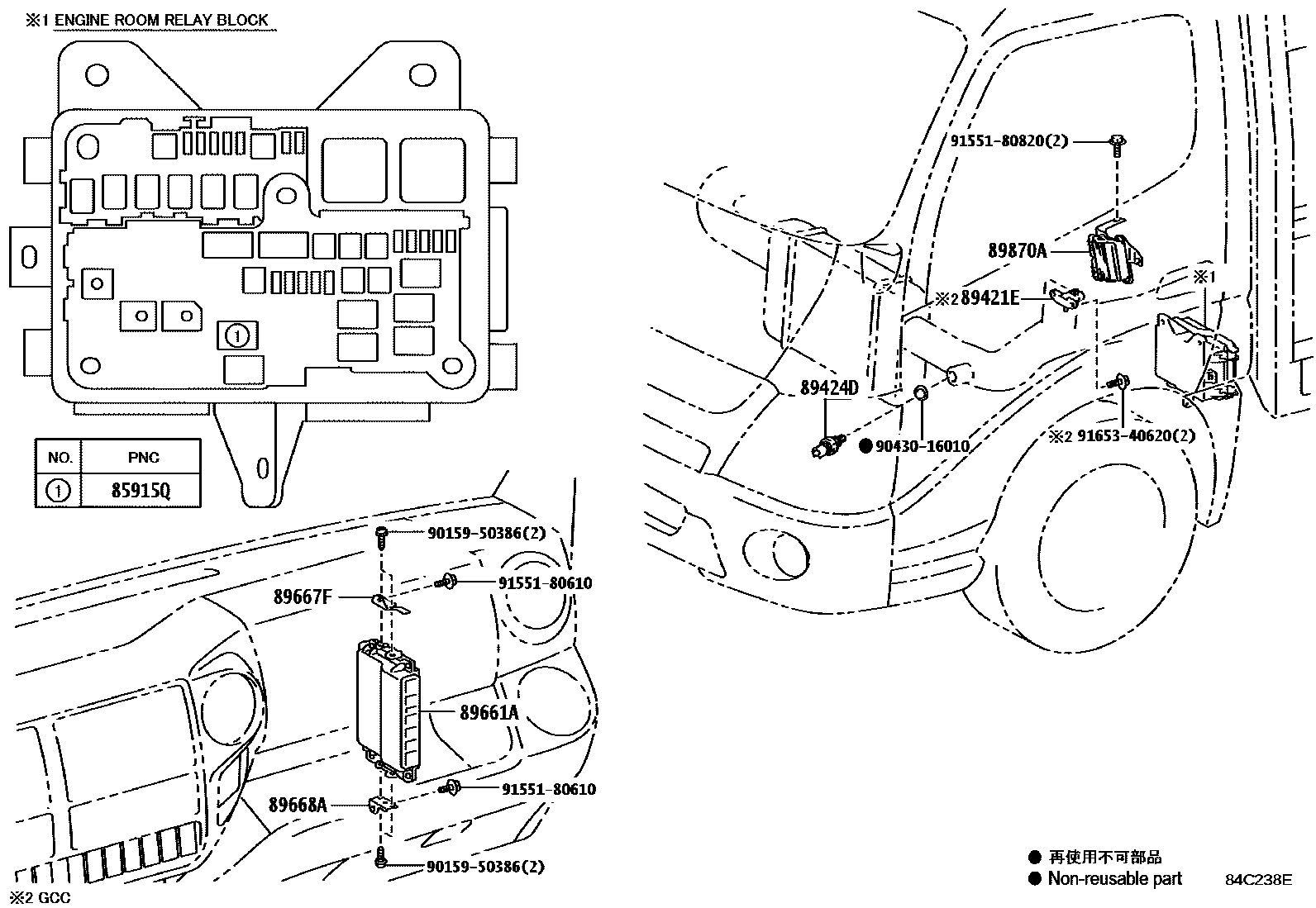

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85915QRELAY, COMPUTER (FOR DIESEL)

main85900-37150iXZU710..CBU201107-202005

89421ESENSOR, VACUUM

main89420-37030iXZU710,720..MTM..GCC201107-202005

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iXZU710..CBU201107-202005

89661ACOMPUTER, ENGINE CONTROL

main89661-37B02iXZU710,720,730..EUR201306-201310

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.625

sub89661-37B03

main89661-37B03iXZU710,720,730..EUR201311-201501

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.625

sub89661-37B04

main89661-37B04iXZU710,720,730..EUR201502-201509

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.625

sub89661-37B05

main89661-37B05iXZU710,720,730..EUR201510-201512

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.625

sub89661-37B06

main89661-37B80iXZU710..CBU201107-201110

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB

sub89661-37B81

main89661-37B80iXZU710..CBU201107-201110

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

sub89661-37B81

main89661-37B80iXZU710..CBU201107-201110

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB

sub89661-37B81

main89661-37B80iXZU710..CBU201107-201110

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG

sub89661-37B81

main89661-37B80iXZU710..CBU201107-201110

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

sub89661-37B81

main89661-37B80iXZU710..CBU201107-201110

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB

sub89661-37B81

main89661-37B81iXZU710..CBU201111-201310

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB

sub89661-37B82

main89661-37B81iXZU710..CBU201111-201310

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB

sub89661-37B82

main89661-37B81iXZU710..CBU201111-201310

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB

sub89661-37B82

main89661-37B81iXZU710..CBU201111-201310

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

sub89661-37B82

main89661-37B81iXZU710..CBU201111-201310

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG

sub89661-37B82

main89661-37B81iXZU710..CBU201111-201310

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

sub89661-37B82

main89661-37B82iXZU710..CBU201311-201505

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG

sub89661-37B83

main89661-37B82iXZU710..CBU201311-201505

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

sub89661-37B83

main89661-37B82iXZU710..CBU201311-201505

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB

sub89661-37B83

main89661-37B82iXZU710..CBU201311-201505

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB

sub89661-37B83

main89661-37B82iXZU710..CBU201311-201505

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

sub89661-37B83

main89661-37B82iXZU710..CBU201311-201505

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB

sub89661-37B83

main89661-37B92iXZU720..GCC201505-201509

ABS-WITHOUT

main89661-37B93iXZU710,720..6F..GCC201510-201704

ABS-WITHOUT

main89661-37B94iXZU710,720..6F..GCC201705-202005

ABS-WITHOUT

main89661-37F02iXZU710,720,730..EUR201306-201512

main89661-37F10iXZU710..IV3201108-201110

ABS-WITH(POWER ASSIST BRAKE)

sub89661-37F11

main89661-37F11iXZU710..GCC..IV3201111-201505

ABS-WITH(POWER ASSIST BRAKE)

main89661-37F11iXZU710..DCB201505-202005

main89661-37F20iXZU710..CBU201107-201110

sub89661-37F21

main89661-37F21iXZU710..CBU201111-201505

main89661-37F30iXZU710..IV3201108-201110

sub89661-37F31

main89661-37F31iXZU710..DCB201505-202005

ABS-WITHOUT

main89661-37F31iXZU710..GCC..IV3201111-201505

main89661-37M90iXZU710..SCB..5F..GCC201605-202005

main89661-37N00iXZU710..SCB..5F..GCC201605-202005

ABS-WITHOUT

main89661-37N10iXZU720..75T..GCC..IV3201605-202005

ABS-WITHOUT

main89661-37U60iXZU710,720..GEN201911-202008

DENSO

main89661-37U61iXZU710,720..GEN202009

DENSO

89667FBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-37130iXZU710..CBU201107-202005

main89667-37210iXZU710,720..GEN201911

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-37120iXZU710,720..MTM..GCC201107-202005

89870ADRIVER ASSY, INJECTOR

main89870-37140iXZU710,720,730..EUR201306-201512

main89870-37160iXZU710..CBU201107-202005

9015950386

main90159-50386

9043016010

main90430-16010

9155180610

main91551-80610

9155180820

main91551-80820

9165340620

main91653-40620

12 parts on this diagram · 2 diagrams in section
