WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1DOOR,FLOOR,FRAME & ROOF 0011 1DOOR,FLOOR,FRAME & ROOF 0012 1DOOR,FLOOR,FRAME & ROOF 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CLAMP & BRACKET 0016 1CONNECTOR 1/2 0017 1CONNECTOR 2/2

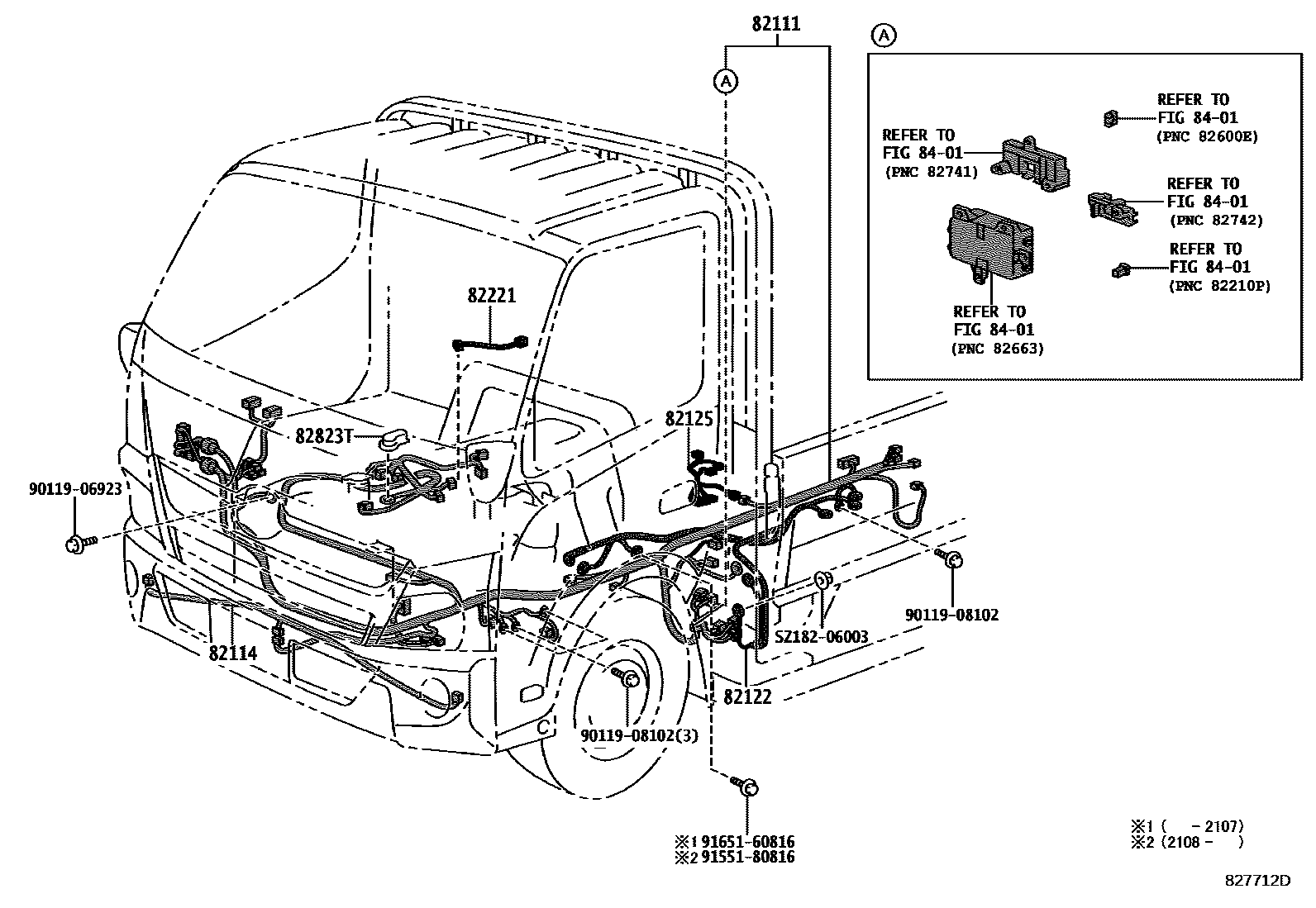

82111WIRE, ENGINE ROOM MAIN

main82115-37U40iWU710..RHD201107-201505

main82115-37U41iWU710..RHD201505-201509

sub82115-37U42

main82115-37U42iWU710..RHD201510-201705

sub82115-37U43

main82115-37U43iWU710..RHD201706-202005

main82115-37U71iXZU710,720,730..EUR201306-201311

sub82115-37U72

main82115-37U72iXZU710,720,730..EUR201312-201407

sub82115-37U73

main82115-37U73iXZU710,720,730..EUR201408-201505

main82115-37U75iXZU710,720,730..EUR201505-201509

sub82115-37U76

main82115-37U76iXZU710,720,730..EUR201510-201512

sub82115-37U77

main82115-37V03iXZU710,720..GCC..IV3201505-201509

sub82115-37V04

main82115-37V04iXZU710,720..MTM..GCC201510-201606

sub82115-37V05

main82115-37V05iXZU710,720..MTM..GCC201607-201705

sub82115-37V06

main82115-37V06iXZU710,720..MTM..GCC201706-202005

main82115-37V10iXZU710..CBU201107-201505

sub82115-37V12

main82115-37V40iWU700,710,720..LHD201107-201505

main82115-37V42iWU710,720..LHD201505-201509

sub82115-37V43

main82115-37V43iWU710,720..LHD201510-201606

sub82115-37V44

main82115-37V44iWU710,720..LHD201607-201705

sub82115-37V45

main82115-37V45iWU710,720..LHD201706-202005

main82115-37X10iXZU710,720..GCC..IV3201108-201412

sub82115-37X12

main82115-37X12iXZU710,720..GCC..IV3201501-201505

sub82115-37X13

main82116-37T30iXZU710,720..GEN201911-202201

sub82116-37T31

main82116-37T31iXZU710,720..GEN202202-202305

sub82116-37T32

main82116-37T32iXZU710,720..GEN202306

82114WIRE, ENGINE ROOM, NO.4

main82114-37170iXZU710,720,730..EUR201306-201512

sub82114-37171

82122WIRE, ENGINE, NO.2

main82122-37F60iXZU710,720,730201107-201408

sub82122-37F61

main82122-37F61iXZU710,720,730201409-201505

main82122-37G30iXZU710,720..MTM..GCC201505-202005

main82122-37G50iWU710..RHD..75T;WU700,710,720..65T201107-201505

main82122-37G51iWU710..65T;WU710..RHD..75T201505-202005

main82122-37G70iWU710,720..LHD..(75T,85T)201107-201505

main82122-37G71iWU710,720..LHD..(75T,85T)201505-202005

main82122-37M30iXZU710,720..GEN201911

82125WIRE, TRANSMISSION

main82125-37190iXZU710,720..6F..GCC201505-202005

main82125-37300iWU710..RHD..75T;WU700,710,720..65T201107-202005

main82125-37310iXZU710..GCC..IV3201501-201505

main82125-37320iXZU710..5F..GCC201505-202005

main82125-37330iWU710,720..LHD..75T..GEN201107-202005

main82125-37340iXZU710,720,730..EUR201306-201512

main82125-37350iXZU710..GCC..IV3201108-201501

main82125-37360iXZU720..GCC201211-201505

main82125-37390iWU710,720..6F201107-202005

main82125-37440iXZU710..CBU201107-201505

sub82125-37441

main82125-37630iXZU710,720..GEN201911

82221WIRE, OIL PRESSURE SWITCH

main82221-37240iXZU710,720,730..EUR201306-201512

main82221-37260iXZU710,720..GEN201107-202005

main82221-37300iWU700,710,720201107-202005

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iWU700,710,720;XZU710,720..MTM..GCC201107-202306

main82823-22070iXZU710,720..GEN202306

8401

9011906923

main90119-06923

9011908102

main90119-08102

9155180816

main91551-80816

9165160816

main91651-60816

SZ18206003

mainSZ182-06003

12 parts on this diagram · 17 diagrams in section
