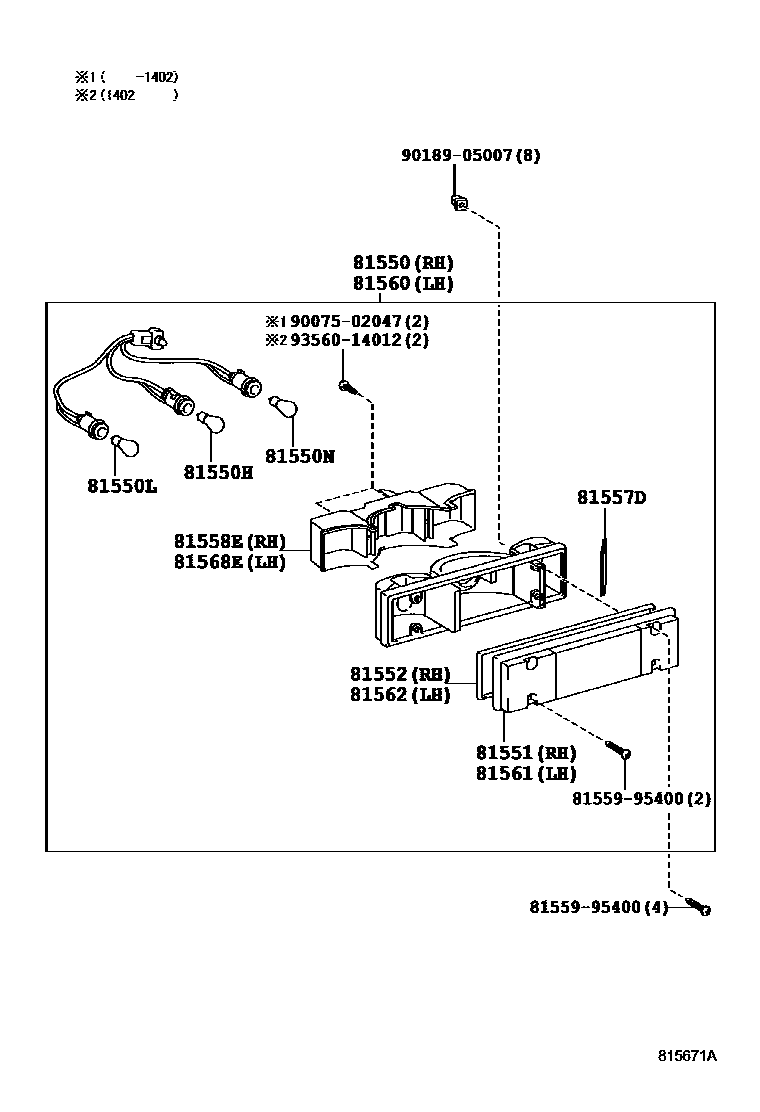

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37240iXZU710..CBU201107-202005

main81550-37260iXZU710,720,730..EUR201107-202005

81550HBULB, TAIL & STOP LAMP

main90981-16015iXZU710..CBU201107-202005

main90981-16015iXZU710,720..GEN201911

24V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-16014iXZU710,720..GEN201911

24V 21W

main90981-16014iXZU710..CBU201107-202005

81550NBULB, BACK UP LAMP

main90981-16014iXZU710..CBU201107-202005

main90981-16014iXZU710,720..GEN201911

24V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iXZU710..CBU201107-202005

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iXZU710..CBU201107-202005

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403iXZU710..CBU201107-202005

81558ECOVER, REAR COMBINATION LAMP, RH

main81558-27070iXZU710,720..GEN201107-202005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37240iXZU710..GEN..CBU201107-202005

main81560-37270iXZU710,720..GEN..IV3201107-202005

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iXZU710,720,730..EUR201107-202005

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iXZU710..CBU201107-202005

81568ECOVER, REAR COMBINATION LAMP, LH

main81568-27040iXZU710..CBU201107-202005

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9007502047

main90075-02047

9018905007

main90189-05007

9356014012

main93560-14012

16 parts on this diagram · 1 diagram in section
