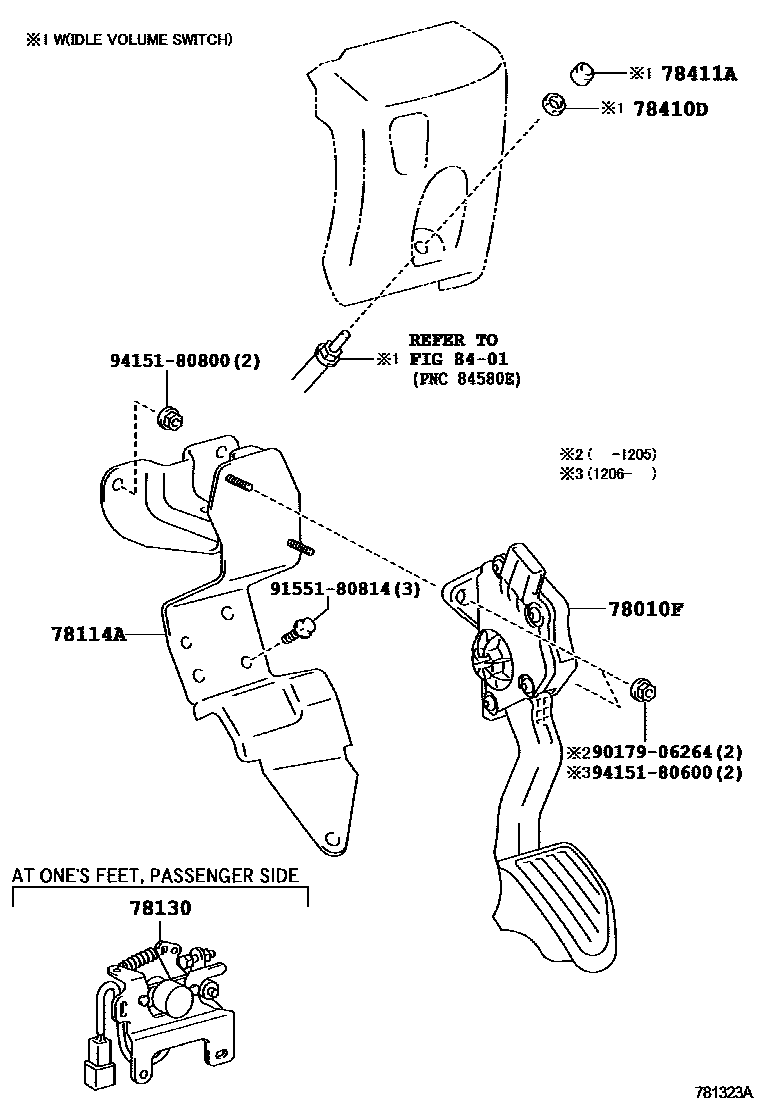

ACCELERATOR LINK

0001 1 0002 1 0003 1

78010FPEDAL ASSY, ACCELERATOR

main78010-37040iXZU710..CBU201107-202005

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-37070iXZU710..CBU201107-202005

78130BELLCRANK ASSY, ACCELERATOR

main78130-37131

78410DNUT, THROTTLE

main78314-95010iXZU710,720,730..EUR201107-202005

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iXZU710,720,730..EUR201107-202005

8401

9017906264

main90179-06264

9155180814

main91551-80814

9415180600

main94151-80600

9415180800

main94151-80800

10 parts on this diagram · 3 diagrams in section
