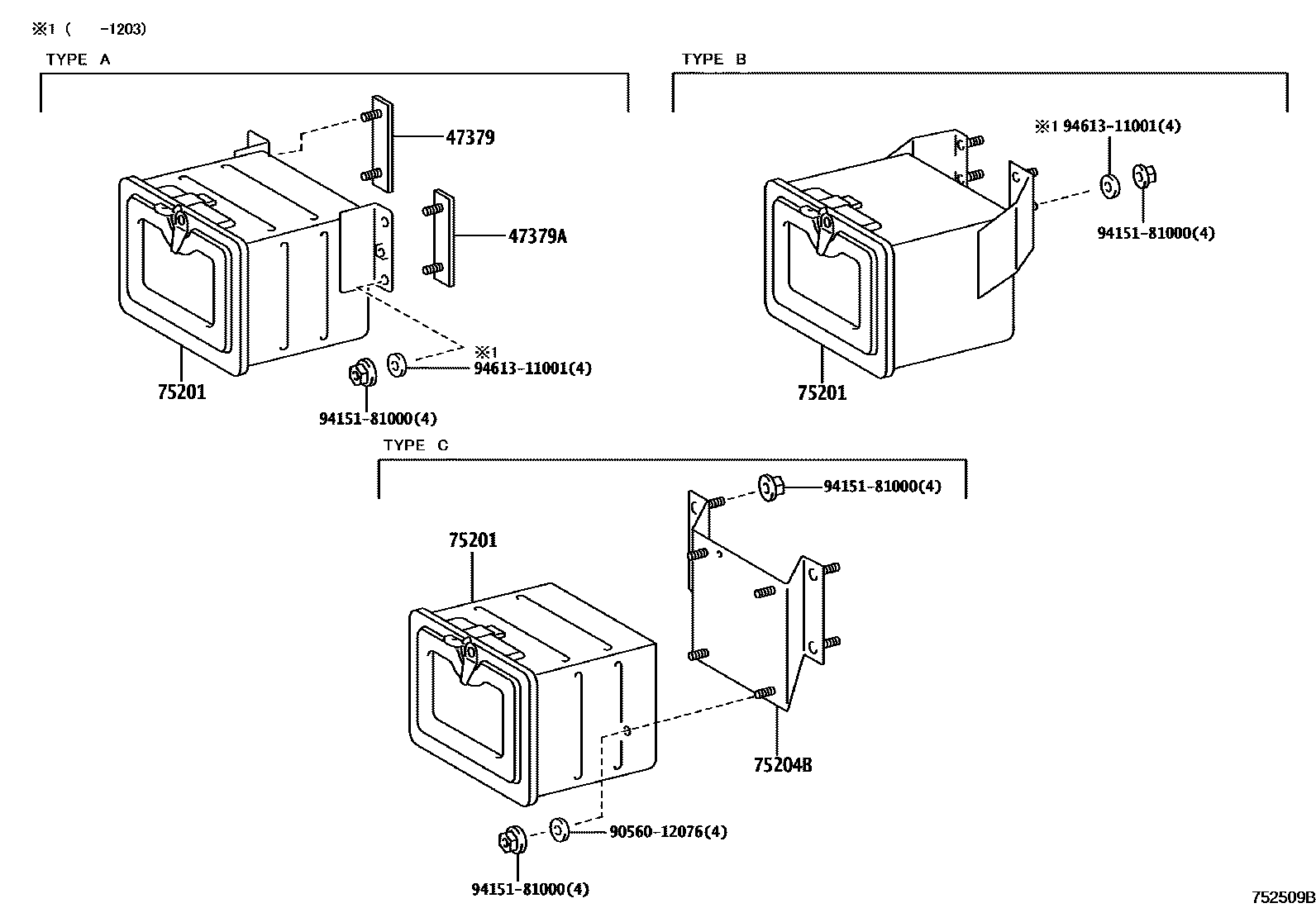

TOOL BOX & LICENSE PLATE BRACKET

0001 1TOOL BOX 0002 1TOOL BAND 0003 1LICENSE PLATE BRACKET 0004 1REAR LAMP BRACKET

47379SPACER, BRAKE TUBE, NO.1

main47379-37080

47379ASPACER, BRAKE TUBE, NO.2

75201BOX SUB-ASSY, TOOL W/STAY

main75210-37151

main75210-37260

main75210-37270

75204BSTAY SUB-ASSY, TOOL BOX

9056012076

main90560-12076

9415181000

main94151-81000

9461311001

main94613-11001

7 parts on this diagram · 4 diagrams in section
