REAR DOOR WINDOW REGULATOR & HINGE
68750HINGE ASSY, REAR DOOR, UPPER RH
68750DBOLT NO.1(FOR REAR DOOR HINGE)
68750EBOLT NO.2(FOR REAR DOOR HINGE)
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
GRAY,TRIM1#
POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#
69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
POWER WINDOW-WITH(FRONT ONLY)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
POWER WINDOW-WITH(FRONT ONLY)
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH
9016850040
main90168-50040
9165340612
main91653-40612

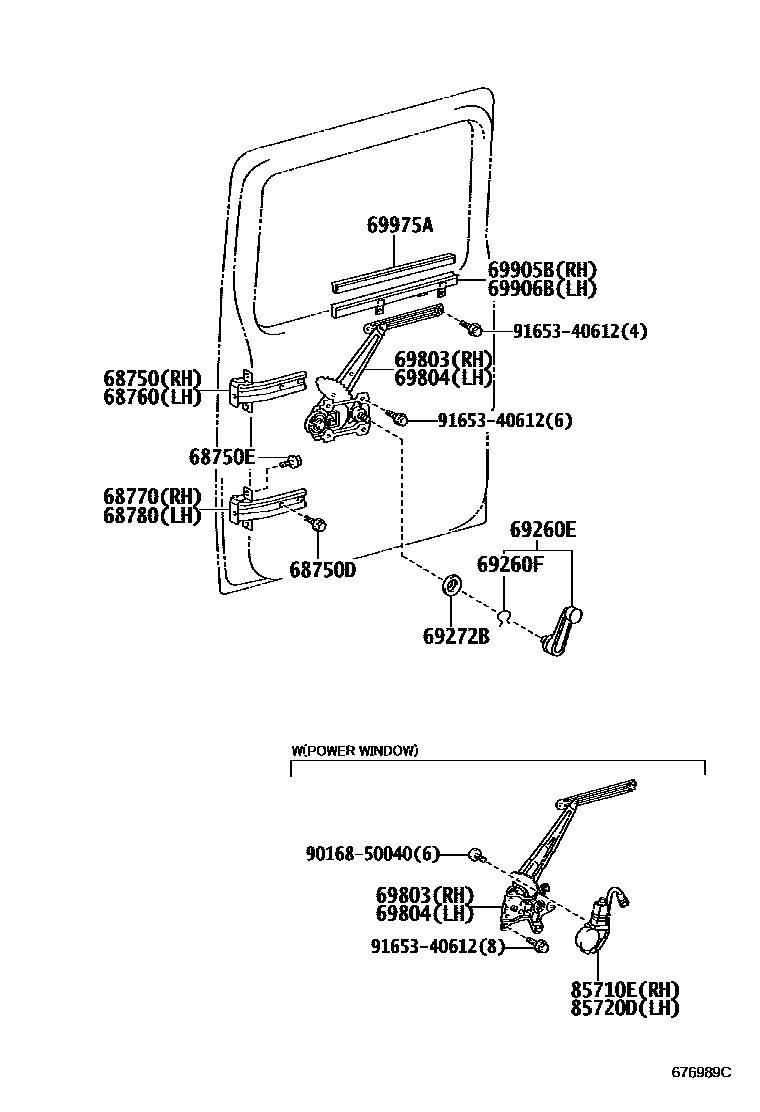

18 parts on this diagram · 1 diagram in section
