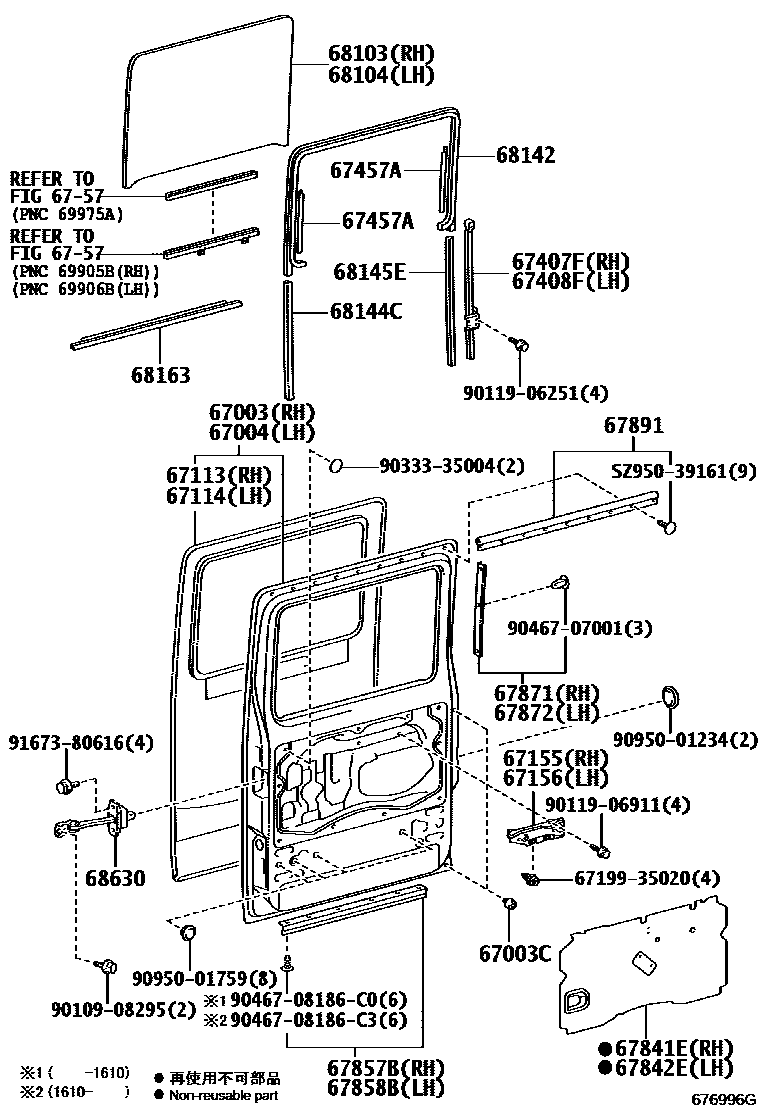

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67155REINFORCEMENT, REAR DOOR INSIDE PANEL, RH
67156REINFORCEMENT, REAR DOOR INSIDE PANEL, LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67457ABRACKET, REAR DOOR REAR GUIDE, UPPER
6757
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67891WEATHERSTRIP, REAR DOOR PANEL
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.5,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.5,GREEN
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68630CHECK ASSY, REAR DOOR
6719935020COVER, BACK DOOR HANDLE
main67199-35020
9010908295
main90109-08295
9011906251
main90119-06251
9011906911
main90119-06911
9033335004
main90333-35004
9046707001
main90467-07001
9046708186C0
main90467-08186C0
9046708186C3
main90467-08186C3
9095001234
main90950-01234
9095001759
main90950-01759
9167380616
main91673-80616
SZ95039161
mainSZ950-39161
37 parts on this diagram · 2 diagrams in section
