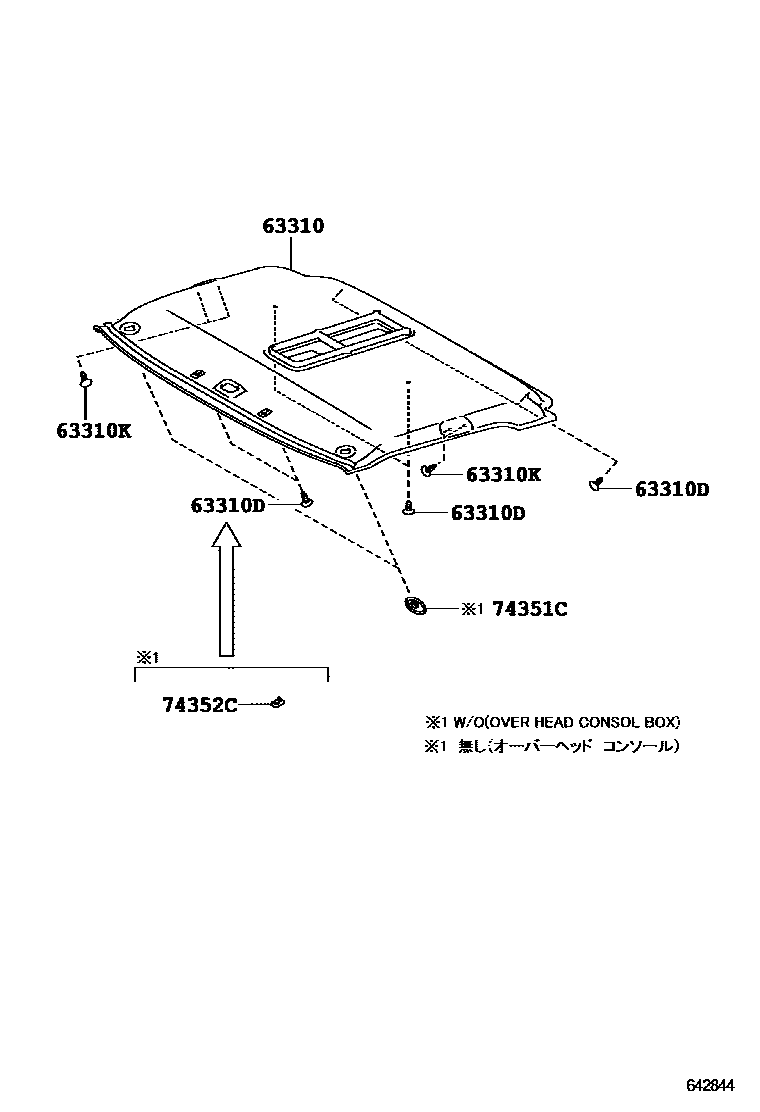

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1W(OVERHEAD CONSOLE BOX)

63310HEADLINING ASSY, ROOF

main63310-37380-B0iXZU710,720,730..EUR201306-201512

GRAY,TRIM1#

main63310-37410-B0iWU700,710,720;XZU710,720..SCB..MTM..GCC201107-202005

GRAY,TRIM1#

main63310-37430-B0iXZU710..DCB201108-202005

GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-06048-B9iXZU710..DCB201107-202005

MD.CHARCOAL,TRIM1#

sub90467-06048

main90467-06048-B9iXZU710..DCB201108-202005

OVER HEAD CONSOLE-WITH,MD.CHARCOAL,TRIM1#

sub90467-06048

63310KCLIP

main90467-06048-B9iXZU710,720,730..EUR201107-202005

ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1),MD.CHARCOAL,TRIM1#

sub90467-06048

main90467-06048-B9iXZU710,720,730..EUR201107-202005

MD.CHARCOAL,TRIM1#

sub90467-06048

main90467-06048-B9iXZU710,720,730..EUR201107-202005

ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2),MD.CHARCOAL,TRIM1#

sub90467-06048

74351CCOVER, ROOF CONSOLE, NO.1

main74351-35010-B2iWU710,720..GEN201107-202005

MD.CHARCOAL,TRIM1#

sub74351-37100

74352CCOVER, ROOF CONSOLE, NO.2

main74352-35010-B2iWU710,720..GEN201107-202005

MD.CHARCOAL,TRIM1#

sub74352-37100

5 parts on this diagram · 3 diagrams in section
