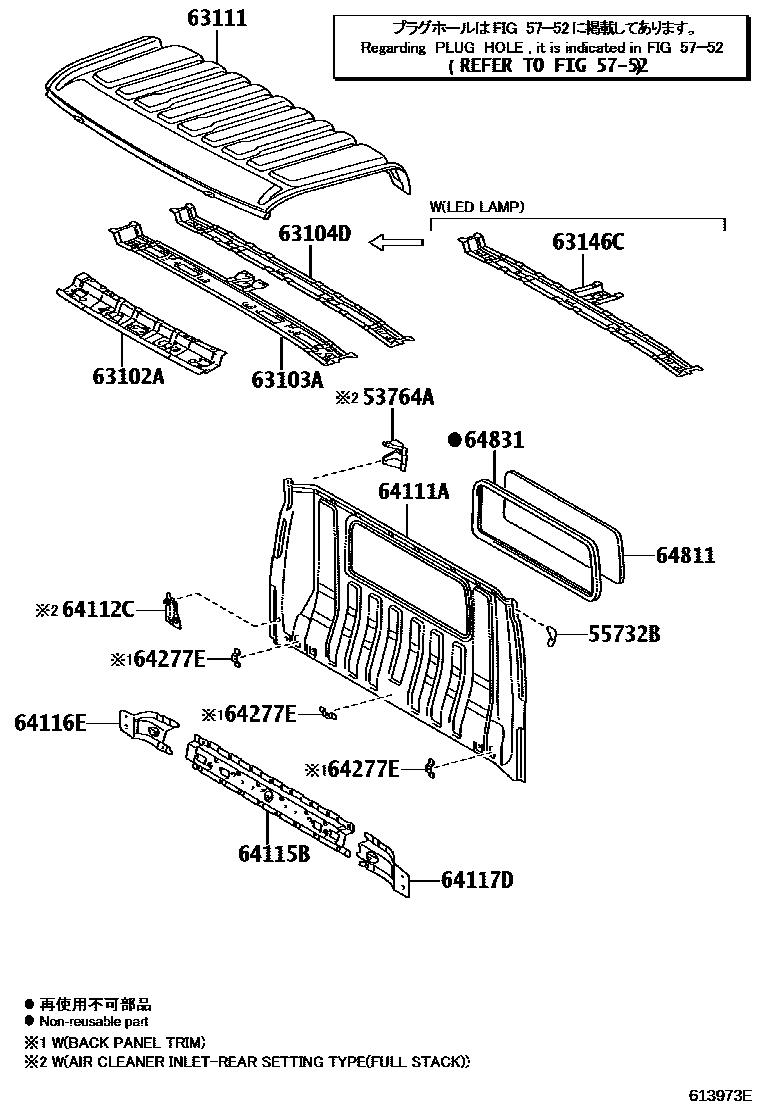

ROOF PANEL & BACK PANEL

0001 1 0002 1

53764ABRACKET, AIR CLEANER INLET, NO.1

55732BBRACKET, FRONT PANEL, NO.2

main55732-37060iXZU710,720,730..EUR201107-202005

5752

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-37080iXZU710..CBU201107-202005

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-37070iXZU710..CBU201107-202005

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-37060iXZU710,720..GEN201107-202005

63111PANEL, ROOF

main63111-37260iXZU710..CBU201107-202005

main63111-37280iXZU710..DCB201108-202005

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

64111APANEL, BACK

main64111-37570iXZU710..CBU201107-202005

main64111-37580iXZU710..DCB201108-202005

64112CPANEL, UPPER BACK, INNER

64115BREINFORCEMENT, BACK PANEL

main64115-37210iXZU710..CBU201107-202005

main64115-37220iXZU710..GCC..IV3201108-201407

sub64115-37221

main64115-37221iXZU710..DCB201408-202005

64116EREINFORCEMENT, UPPER BACK, RH

main64116-37040iWU700,710,720;XZU710,720..SCB..MTM..GCC201107-202005

64117DREINFORCEMENT, UPPER BACK, LH

main64117-37070iWU700,710,720;XZU710,720..SCB..MTM..GCC201107-202005

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010iXZU710,720,730..EUR201306-201512

64811GLASS, BACK WINDOW

main64811-37180iXZU710,720,730..EUR201107-202005

*TEM,T=3.5,GREEN

main64811-37180iXZU710,720..GEN201911

main64811-37190iXZU710..DCB201108-202005

*TEM,T=3.5,GREEN

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37070iXZU710..CBU201107-202005

main64831-37080iXZU710..DCB201108-202005

16 parts on this diagram · 2 diagrams in section
