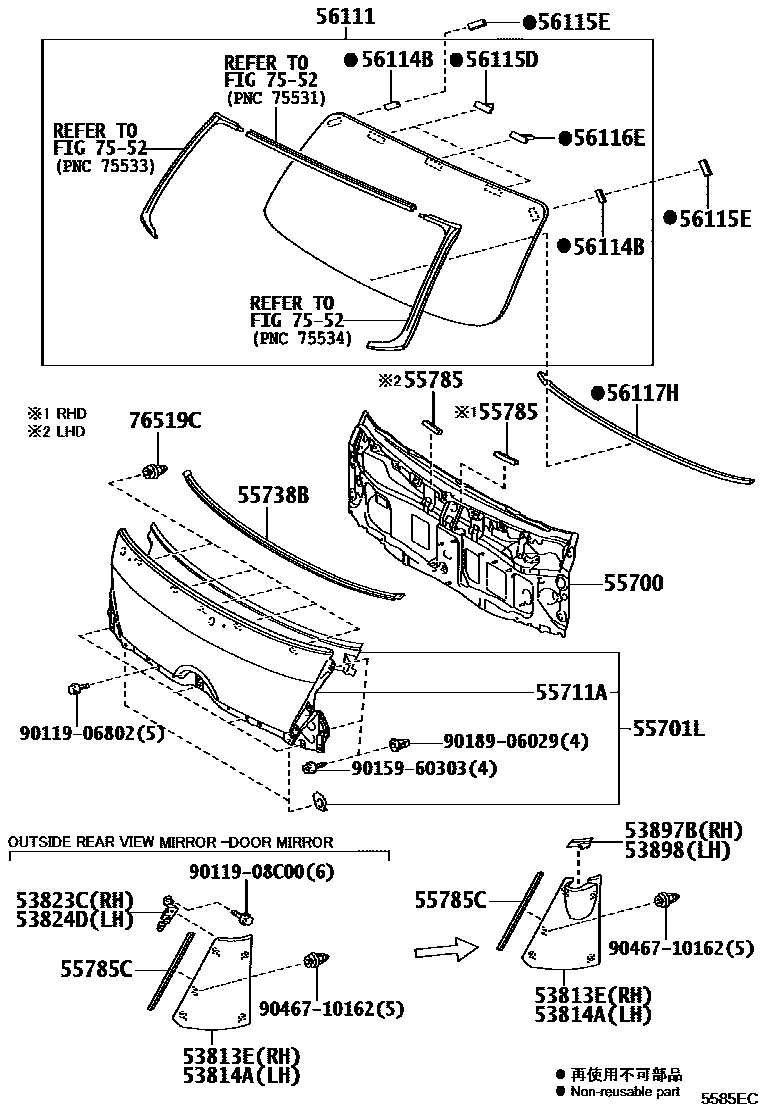

FRONT PANEL & WINDSHIELD GLASS

53813EPANEL, FRONT SIDE, RH

main53813-37140-A0iWU700,710,720,XZU710,720..MTM..GCC201107-202202

WHITE,058

sub53813-37210

main53813-37140-A0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,WHITE,058

sub53813-37210

main53813-37140-B0iXZU710,720..GEN201107-202202

SILVER ME.,199

sub53813-37210

main53813-37140-B0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,SILVER ME.,199

sub53813-37210

main53813-37140-H0iWU710,720..GEN201107-202202

TURQUOISE,766

sub53813-37210

main53813-37140-H0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,TURQUOISE,766

sub53813-37210

main53813-37140-J0iXZU710,720..GEN201107-202202

BLUE,8P0

sub53813-37210

main53813-37140-J0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,BLUE,8P0

sub53813-37210

main53813-37160-A0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,WHITE,058

sub53813-37220

main53813-37160-A0iWU710,720..GEN201107-202005

WHITE,058

sub53813-37220

main53813-37160-B0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,SILVER ME.,199

sub53813-37220

main53813-37160-B0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

SILVER ME.,199

sub53813-37220

main53813-37160-H0iXZU710..CBU201107-202005

TURQUOISE,766

sub53813-37220

main53813-37160-H0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,TURQUOISE,766

sub53813-37220

main53813-37160-J0iXZU710..CBU201107-202005

BLUE,8P0

sub53813-37220

main53813-37160-J0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,BLUE,8P0

sub53813-37220

main53813-37210-A0iXZU710,720..GEN202202

WHITE,058

53814APANEL, FRONT SIDE, LH

main53814-37140-A0iWU700,710,720,XZU710,720..MTM..GCC201107-202202

WHITE,058

sub53814-37210

main53814-37140-A0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,WHITE,058

sub53814-37210

main53814-37140-B0iWU700,710,720,XZU710,720..MTM..GCC201107-202202

SILVER ME.,199

sub53814-37210

main53814-37140-B0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,SILVER ME.,199

sub53814-37210

main53814-37140-H0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,TURQUOISE,766

sub53814-37210

main53814-37140-H0iXZU710,720..GEN201107-202202

TURQUOISE,766

sub53814-37210

main53814-37140-J0iXZU710,720..GEN201107-202202

BLUE,8P0

sub53814-37210

main53814-37140-J0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,BLUE,8P0

sub53814-37210

main53814-37160-A0iXZU710..CBU201107-202005

WHITE,058

sub53814-37220

main53814-37160-A0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,WHITE,058

sub53814-37220

main53814-37160-B0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,SILVER ME.,199

sub53814-37220

main53814-37160-B0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

SILVER ME.,199

sub53814-37220

main53814-37160-H0iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,TURQUOISE,766

sub53814-37220

main53814-37160-H0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

TURQUOISE,766

sub53814-37220

main53814-37160-J0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

BLUE,8P0

sub53814-37220

main53814-37160-J0iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM,BLUE,8P0

sub53814-37220

main53814-37210-A0iXZU710,720..GEN202202

WHITE,058

53823CPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-37050iXZU710,720,730..EUR201107-201512

main53823-37050iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM

53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-37040iWU700,710,720,XZU710,720..MTM..GCC201107-202005

OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM

main53824-37040iXZU710..CBU201107-201512

53897BPLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH

main53897-37030iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS

main53897-37030iXZU710,720..GEN201911

53898PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH

main53898-37030iWU710,720..GEN201107-202005

OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS

main53898-37030iXZU710,720..GEN201911

55700PANEL ASSY, FRONT

main55700-37380iWU710..RHD201107-202005

main55700-37400iXZU710..CBU201107-202005

55701LPANEL SUB-ASSY, COWL TOP, OUTER

main55701-37070iWU710..RHD201107-202005

main55701-37090iXZU710..CBU201107-202005

55711APANEL, FRONT, LOWER

main55711-37120iWU710..RHD201107-202005

main55711-37130iXZU710..CBU201107-202005

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37090iXZU710..CBU201107-202005

55785PAD, COWL OUTER PANEL, NO.2

main55785-37030iXZU710,720..GEN201107-202102

main55785-37060iXZU710,720..GEN202103

55785CPAD, FRONT PANEL COVER

main55785-37050iXZU710..CBU201107-202102

main55785-37070iXZU710,720..GEN202103

56111GLASS, WINDSHIELD

main56101-37010iXZU710..CBU201107-201906

*LAM,T=5.26,GREEN

sub56101-37130

main56101-37130iWU710,720;XZU710,720..MTM..GCC201907-202401

sub56101-37131

main56101-37131iXZU710,720..GEN202402

56114BRETAINER, WINDSHIELD GLASS

main56114-89102iXZU710..CBU201107-202005

56115DSTOPPER, WINDSHIELD GLASS

main56115-37010iXZU710..CBU201107-202005

56115ESTOPPER, WINDSHIELD GLASS

main56115-89105iXZU710..CBU201107-202005

56116ESTOPPER, WINDSHIELD GLASS, NO.2

main56116-37020iXZU710..CBU201107-202005

56117HDAM, WINDOW GLASS ADHESIVE

main56117-89108iXZU710..CBU201107-202005

*D,L=1775

7552

76519CCLIP, FRONT END PANEL MOULDING

main76519-37010iXZU710..CBU201107-202005

9011906802

main90119-06802

9011908C00

main90119-08C00

9015960303

main90159-60303

9018906029

main90189-06029

9046710162

main90467-10162

25 parts on this diagram · 1 diagram in section
