REAR BUMPER & BUMPER STAY

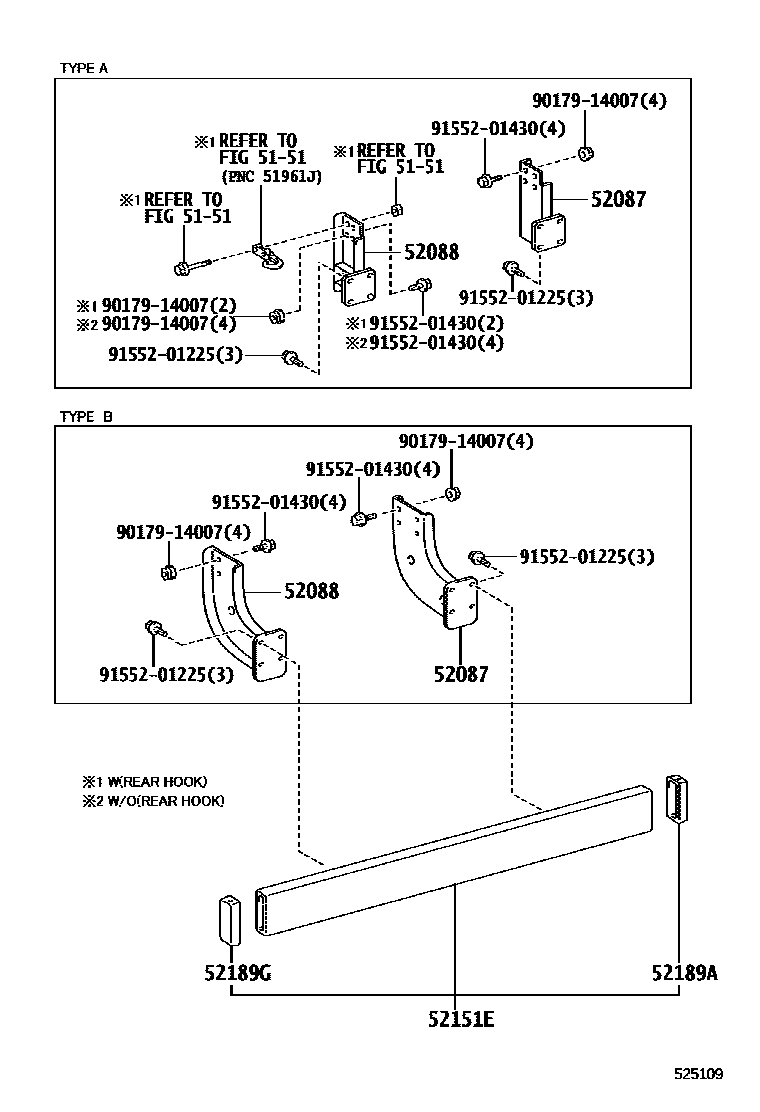

Parts diagram
5151
52087STAY SUB-ASSY, REAR BUMPER SIDE, RH
main52151-37250i201107-201505
REAR BUMPER-WITHOUT,TYPE A:REFER ILLUST.
main52151-37250i201107-201505
TYPE A:REFER ILLUST.
main52151-37250i201107-201505
TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)&REAR BUMPER-WITHOUT,TYPE A:REFER ILLUST.
main52151-37420i201107-202005
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT,TYPE B:REFER ILLUST.
main52151-37420i201107-202005
TYPE B:REFER ILLUST.
main52151-37420i201107-201505
REAR BUMPER-WITHOUT,TYPE B:REFER ILLUST.
52088STAY SUB-ASSY, REAR BUMPER SIDE, LH
main52152-37110i201107-201505
TYPE A:REFER ILLUST.
main52152-37110i201107-201505
TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)&REAR BUMPER-WITHOUT,TYPE A:REFER ILLUST.
main52152-37110i201107-201505
REAR BUMPER-WITHOUT,TYPE A:REFER ILLUST.
main52152-37170i201107-201505
REAR BUMPER-WITHOUT,TYPE B:REFER ILLUST.
main52152-37170i201107-202005
TYPE B:REFER ILLUST.
main52152-37170i201107-202005
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT,TYPE B:REFER ILLUST.
52151EBAR, REAR BUMPER
main52105-37270i201107-201505
TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)&REAR BUMPER-WITHOUT
sub52105-37271
main52105-37270i201107-201505
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
sub52105-37271
main52105-37270i201107-201811
REAR BUMPER-WITHOUT
sub52105-37271
main52105-37270i201107-201811
NO PAINT REQ.
sub52105-37271
main52105-37271i201812-202005
main52105-37320i201505-201811
NO PAINT REQ.
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
REAR BUMPER-WITHOUT
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
sub52105-37321
main52105-37320i201505-201811
NO PAINT REQ.,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
sub52105-37321
main52105-37320i201505-201811
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
sub52105-37321
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-215/75R17.5 126 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-215/75R17.5 126 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 RIB
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 LUG
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG
main52105-37321i201812-202005
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52105-37321i201812-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
52189APROTECTOR, REAR BUMPER ARM EDGE, RH
main52189-37060i201107-201505
TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)&REAR BUMPER-WITHOUT
main52189-37060i201107-201505
REAR BUMPER-WITHOUT
main52189-37060i201107-202005
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
52189GPROTECTOR, REAR BUMPER ARM EDGE, LH
main52189-37060i201107-201505
TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)&REAR BUMPER-WITHOUT
main52189-37060i201107-201505
REAR BUMPER-WITHOUT
main52189-37060i201107-202005
SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
9017914007
main90179-14007
9155201225
main91552-01225
9155201430
main91552-01430

9 parts on this diagram · 2 diagrams in section
